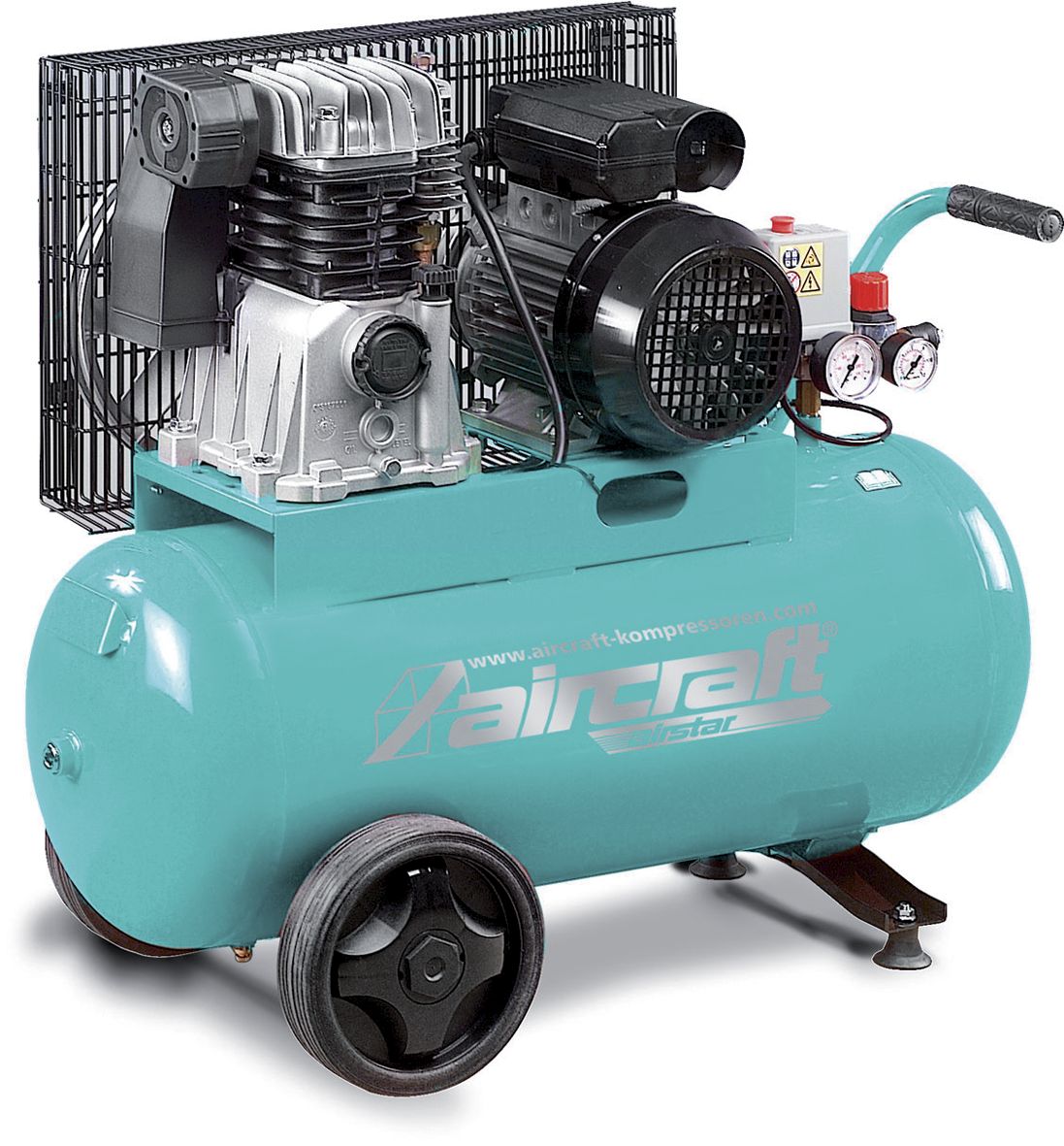

Aircraft AIRSTAR 403/50E Compressor 2 Cyl. 10 bar 50L
Mobile belt-driven compressors, 10 bar, 2-cylinder unit with cast iron cooling fins, with 50-liter tank.
Advantages
- Belt drive
- HOS Oil-lubricated
- Two high-quality cylinders
- Mobile, thanks to large-dimensioned wheels
- 10 bar with 50-liter tank
- Frugal design
- Powerful 2.2 kW motor in 3x400V
- Quality guaranteed
Special features
- High-torque electric motor with overload switch
- Aftercooler with cooling fins limits condensation
- Quiet operation due to low speed guarantees long service life
- Fully automatic switching on and off via Pressure switch
- Infinitely variable pressure regulation from 0 to 10 bar
Suitable for:
- Domestic use
- Demanding hobbyist
Technical data
- Voltage V 3x400
- Intake air l/min 365
- Lubrication system HOS
- Delivered air l/min 266
- Maximum pressure bar 10
- Power kW 2.2
- Tank capacity l 50
- Cylinders/Stages 2/1
- Rotational speed rpm 1375
- Noise level - LWA (0m) dB(A) 94
- Weight kg 57.50
- Dimensions (lxwxh) mm 870x400x700
Standard equipment included
- Working pressure gauge
- Tank pressure gauge
- Powder-coated tank.
- Plastic straps and suction cups at the front.
- 1-hand quick coupler
- Infinitely variable pressure regulator
- Automatic pressure switch
