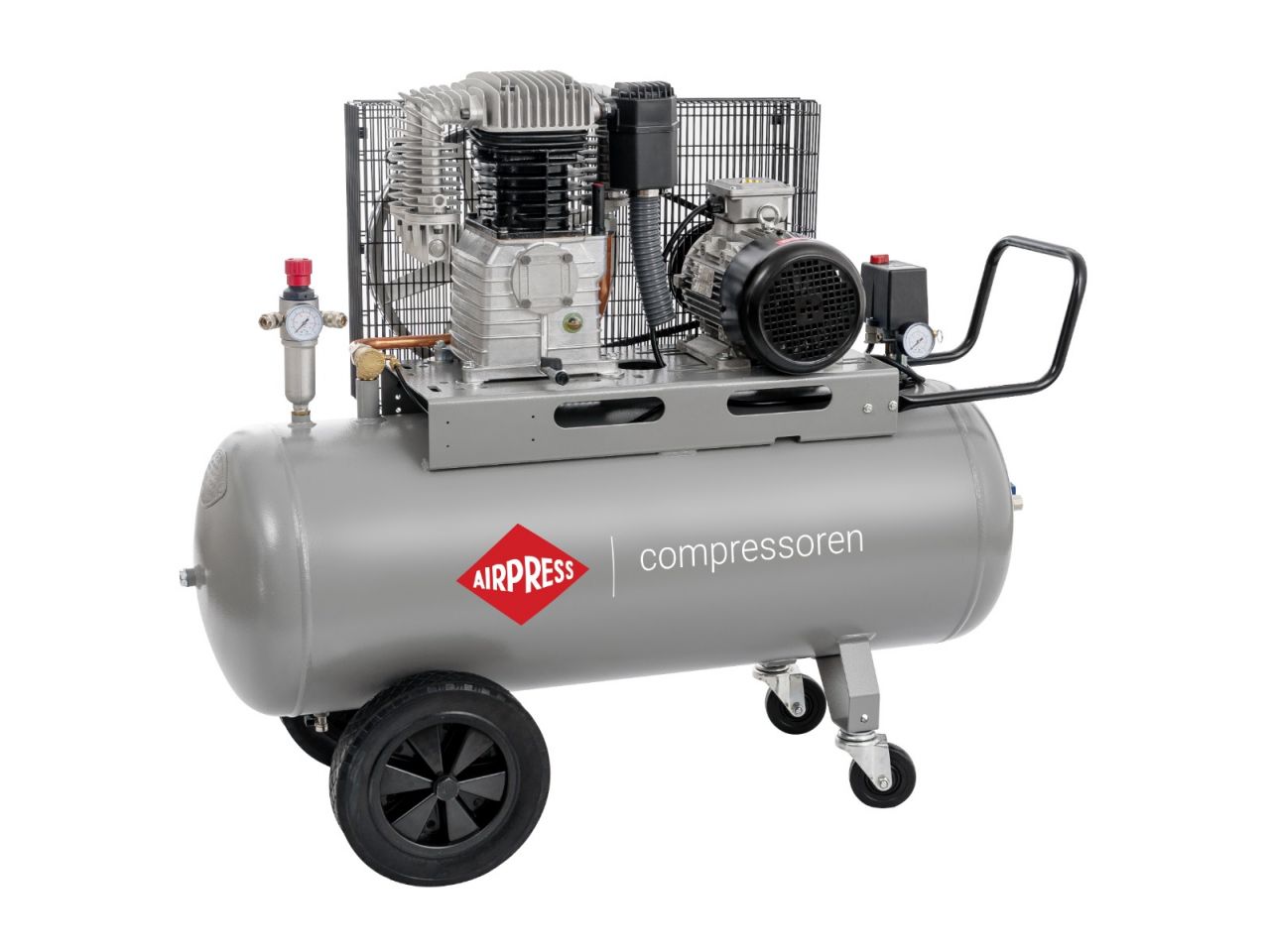

Airpress 360643 Compressor HK 700-150 Pro 11 bar 5.5 hp/4 kW 530 l/min 150 l
Special Features
- The HK 700-150 Pro compressor is an oil-lubricated compressor equipped with two universal quick couplings for the reduced pressure on the oil/water separator. A ball valve is mounted on the pressure vessel for the maximum pressure if needed.
- The compressor weighs 110 kilograms.
- The oil-lubricated compressor features a 5.5 hp/4.0 kW motor, has 2 cylinders, and has a speed of 1290 RPM. The switch-on pressure is 9 bar, the maximum pressure is 11 bar, and the compressor has an effective capacity of 530 l/min.
- With the pressure reducing valve, identifiable by the red rotary knob on the oil/water separator, you can quickly and easily set the desired working pressure, which can be read on the manometer.
- The pressure in the pressure vessel can be read on the manometer near the pressure switch.
Technical data
- Weight (kg) 110.00
- Dimensions (cm) 136 x 51 x 108
- Load (work/rest %) 50/50
- Start: Immediate
- Drive: V-belt driven
- Cylinders: 2
- Voltage (V) 400 V / 50 Hz / 3 Ph
- Pressure vessel Yes
- Pressure vessel capacity (l) 150
- Galvanized pressure vessel No
- Suction capacity (l/min) 662
- Effective capacity (l/min) 530
- Effective capacity (m³/h) 31.8
- Switch-on pressure (bar) 9
- Maximum pressure (bar) 11
- Noise level dB(A) (0 m) 76
- Noise level dB(A) (4 m) 56
- Noise level dB(A) (7 m) 51
- Sound-dampened No
- Air connection (") 1/2
- Stages 2
- Oil-free No
- Filter with pressure reducing valve No
- Pump speed (RPM)1290
- Power (PK/kW)5.5 hp / 4.0 kW
- WheelsYes
- Pump typeK28
- IntercoolerNo
- AftercoolerNo
Scope of delivery
- On Pallet
