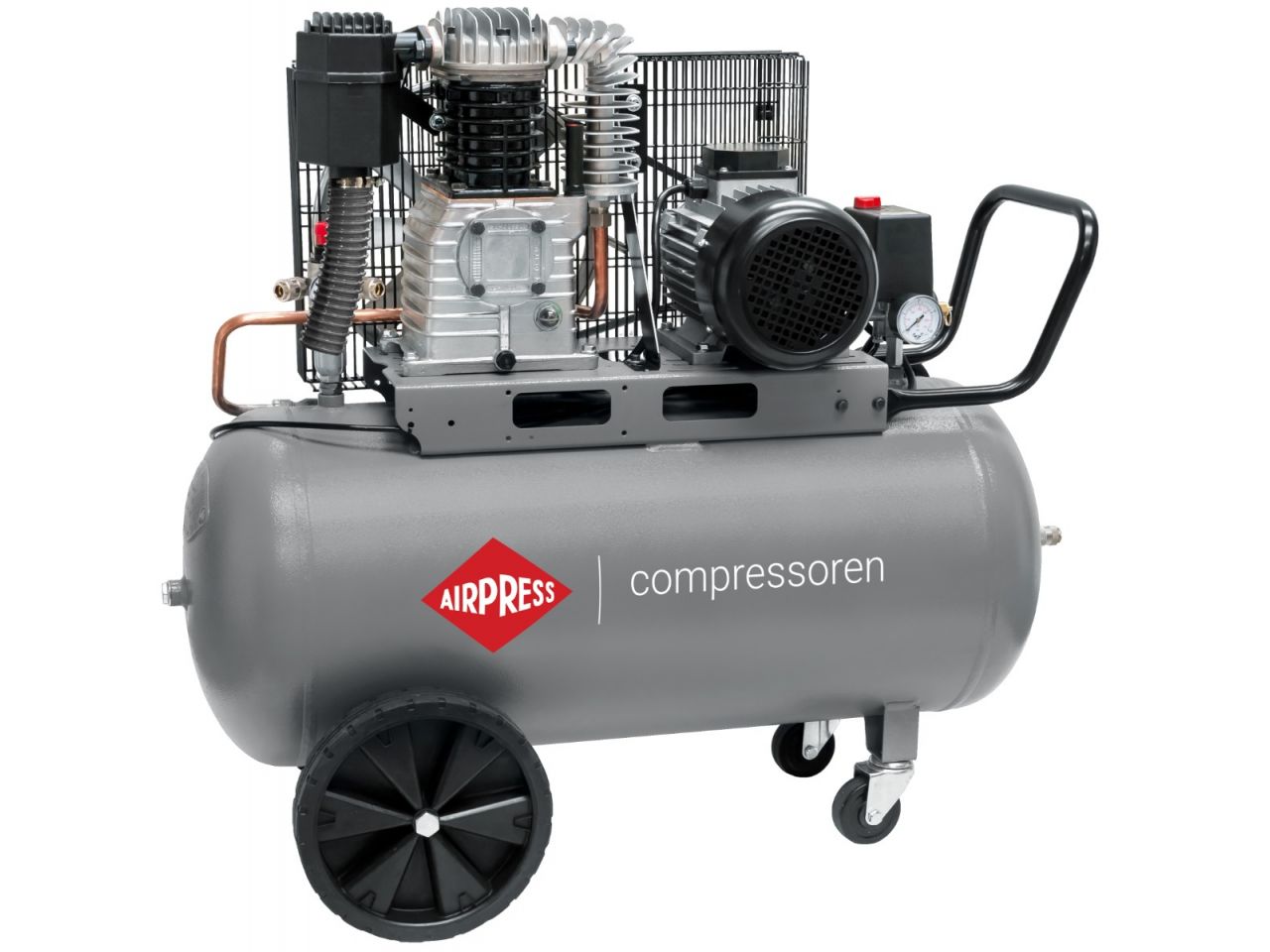

Airpress 360669 Compressor HK 625-90 Pro 10 bar 4 hp/3 kW 380 l/min 90 l
Special Features
- The HK 625-90 Pro compressor is an oil-lubricated compressor equipped with three universal quick couplings, one on the pressure vessel for maximum pressure and the other two for reduced pressure on the oil/water separator.
- The compressor weighs 78 kilograms.
- The oil-lubricated compressor features a 4 hp/3 kW motor, has 2 cylinders, and has a rotational speed of 1400 RPM. The switch-on pressure is 8 bar, the maximum pressure is 10 bar, and the compressor has an effective capacity of 380 l/min. With the pressure reducing valve, identifiable by the red rotary knob on the oil/water separator, you can quickly and easily set the desired working pressure, which can be read on the manometer in front of it. The quick coupling for the maximum pressure is directly connected to the pressure vessel. The pressure in the pressure vessel can be read on the manometer in front of the pressure switch.
Technical data
- Weight (kg)78.00
- Length, Width, Height (cm)98 x 46 x 89
- Load (work/rest %)50/50
- StartImmediate
- Drive V-belt driven
- V-belt lengthA48 (1219)
- Drive pulley diameter (mm)320
- Drived pulley diameter (mm)130
- Cylinders2
- Voltage (V)400 V / 50 Hz / 3 Ph
- Pressure vesselYes
- Pressure vessel capacity (l)90
- Galvanized pressure vessel No
- Suction capacity (l/min) 539
- Effective capacity (l/min) 380
- Effective capacity (m³/h) 22.8
- Switch-on pressure (bar) 8
- Maximum pressure (bar) 10
- Noise level dB(A) (0 m) 97
- Noise level dB(A) (4 m) 77
- Sound-dampened No
- Air connection (") 1/2
- Stages 1
- Oil-free No
- Filter with pressure reducing valve No
- Pump speed (RPM) 1400
- Power (HP/kW) 4.0 hp / 3.0 kW
- WheelsYes
- Pump type K18C
- IntercoolerNo
- AftercoolerNo
Scope of delivery
- On Pallet
