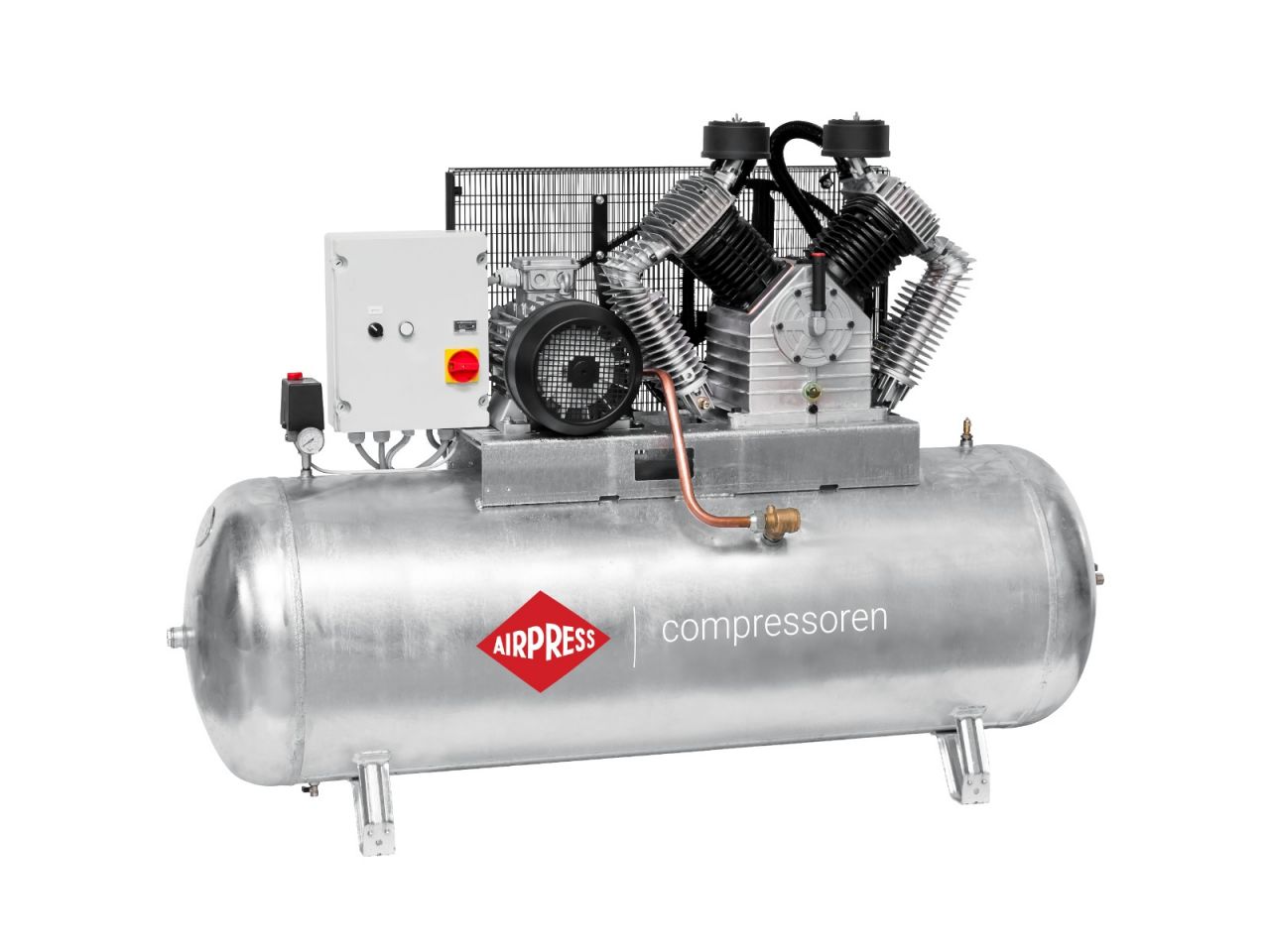

Airpress 369675 Compressor G 2000-500 SD Pro 11 bar 15 hp/11 kW 1395 l/min 500 l galvanized
Special Features
- The G 2000-500 SD Pro compressor is an oil-lubricated compressor equipped with a ball valve attached to the pressure vessel for maximum pressure.
- The compressor weighs 364 kilograms.
- The oil-lubricated compressor features a 15.0 hp/11.0 kW motor, has 4 cylinders, and has a speed of 1200 RPM. The switch-on pressure is 9 bar, the maximum pressure is 11 bar, and the compressor has an effective capacity of 1395 l/min.
- The pressure in the pressure vessel can be read on the manometer at the pressure switch.
- Thanks to the double-sided galvanized pressure vessel, these compressors are highly suitable for operation in environments with corrosive substances, moisture, ammonia fumes, and acidic substances.
Technical data
- Weight (kg) 364.00
- Length, Width, Height (cm) 193 x 64 x 141
- Load (work/rest %) 50/50
- Start Y-∆
- Drive V-belt driven
- V-belt length SPB 2180
- Drive pulley diameter (mm)550
- Drived pulley diameter (mm)180
- Cylinders4
- Voltage (V)400 V / 50 Hz / 3 Ph
- Pressure vesselNo
- Pressure vessel capacity (l)500
- Galvanized pressure vesselYes
- Suction capacity (l/min)1745
- Effective capacity (l/min)1395
- Effective capacity (m³/h)83.7
- Switching pressure (bar)9
- Maximum pressure (bar)11
- Sound level dB(A) (0 m)79
- Sound level dB(A) (4 m)59
- Sound level dB(A) (7 m)54
- SoundproofNo
- Steps2
- Oil-freeNo
- Filter with reducing valveNo
- Pump speeds (RPM)1200
- Power (HP/kW)15.0 HP / 11.0 kW
- WheelsNo
- Pump type K60
- IntercoolerNo
- AftercoolerNo
Scope of delivery
- On Pallet
