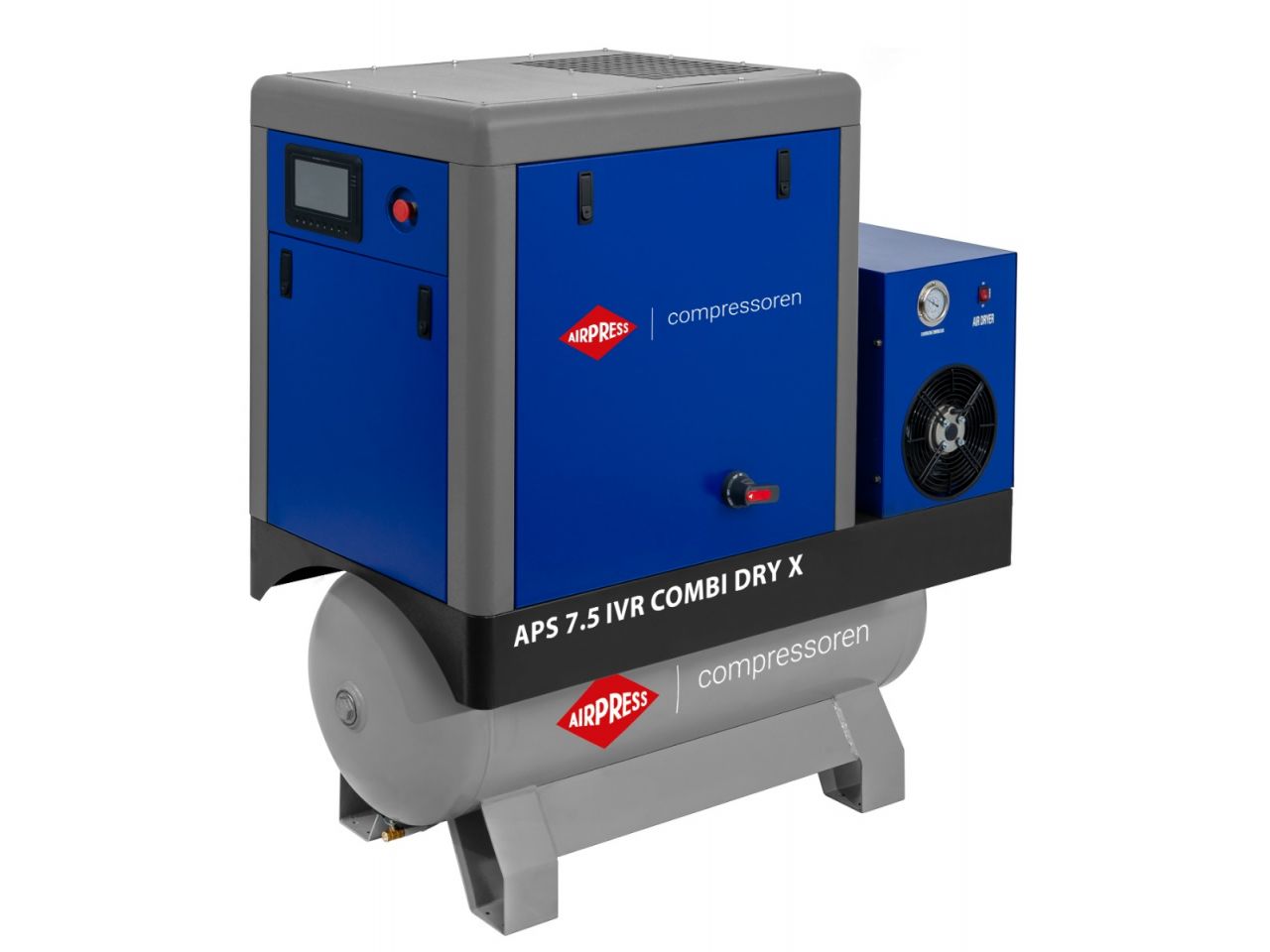

Airpress 369957-IVR Screw Compressor APS 7.5 IVR Combi Dry X 10 bar 7.5 hp/5.5 kW 290-690 l/min 200 l
Special Features
- With the APS 7.5 IVR Combi X screw compressor, you have a complete installation featuring an APS 7.5 IVR X screw compressor, a 200-liter tank, and a refrigerated dryer. The compressed air is generated, stored, and cooled within a single system. The installation features 7.5 hp with an adjustable pressure from 6 to 10 bar. The entire unit weighs 280 kilograms. The screw compressor is connected to 400-volt three-phase power.
- Thanks to its compact size of 145 x 70 x 148 cm, the Plug & Play screw compressor is ideal for placement in environments where space is limited but power is required for production. The screw compressor is immediately suitable for small industrial companies as well as dairy farms. When you install the OFAG3 adsorption dryer set in the air system, the set is even suitable for companies where no dust, water, or oil particles may be present in the compressed air.
Plug & Play screw compressor
- The X-series screw compressors are Plug & Play screw compressors. These screw compressors are already configured so that you can start production immediately. The only thing you might need to change are a few parameters. It couldn't be easier.
IVR screw compressor
- The IVR screw compressors feature the new frequency converter for adjusting to the required amount of compressed air. With IVR, or inverter, you avoid idle hours and recoup your investment. During idle hours, the screw compressor continues to run without producing compressed air, resulting in higher energy consumption and increased wear. This is prevented by the IVR. The frequency converter is more effective, maintenance-friendly, and also energy-saving up to 30%
Technical data
- Weight (kg)280.00
- Length, Width, Height (cm)145 x 67 x 147.4
- Subsidy possibility BAFA (DE)
- Load (work/rest %)100/0
- Power (HP/kW)7.5 hp / 5.5 kW
- Motor efficiency classIE3
- Motor TypePM Synchronous Motor
- Motor protection classIP55
- DriveDirect driven 1:1
- Control panelMAM-6080
- Dryer voltage230 V / 50 Hz / 1 Ph
- Pressure vessel Yes
- Pressure vessel capacity (l) 200
- Galvanized pressure vessel No
- Maximum pressure (bar) 10
- Minimum effective capacity (l/min) 290
- Maximum effective capacity (l/min) 690
- Minimum effective capacity (m³/h) 17.4
- Maximum effective capacity (m³/h) 41.4
- Sound level dB(A) (0 m) 63
- Sound level dB(A) (4 m) 43
- Switch-on pressure (bar) 6
- Plug type(s) EU
- Cooling air volume (m³/h) 2300
- Main air connection (") 3/4
- Minimum ambient temperature (°C) 10
- Maximum ambient temperature (°C) 45
- Oil-free No
- Oil capacity (l) 6
- Stages 1
- Start Inverter
- Voltage (V) 400 V / 50 Hz / 3 Ph
- Frequency controlled (IVR) Yes
- Minimum speed 10 bar (rpm/Hz) 1100
- Maximum speed 10 bar (rpm/Hz) 1960
- Minimum energy consumption 10 bar (kW/m³/h) 9.4
- Maximum energy consumption 10 bar (kW/m³/h) 10.8
