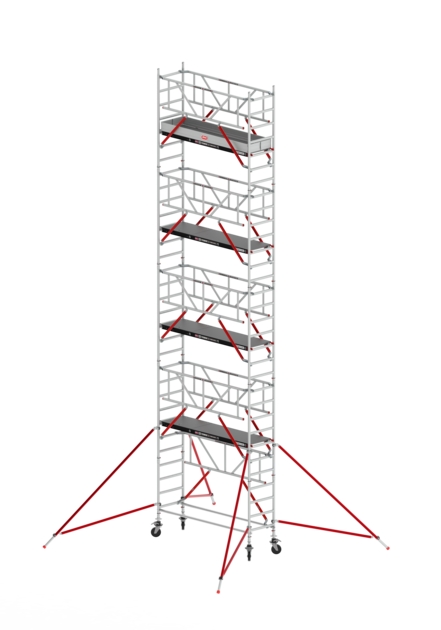

Altrex RS TOWER 51-S 10.2m working height Wood 2.45 Safe-Quick
Special features
- The RS TOWER 51 is the mobile scaffold you can rely on, both indoors and outdoors. The system can be expanded with all components from the RS TOWER 5 series. Furthermore, you can connect the mobile scaffold to other applications, such as a walkway or cantilever console. This makes your mobile scaffold not only strong and safe, but above all very flexible.
- You create your own custom solution with the RS TOWER 51. And that up to a height of 10.2 meters indoors and outdoors. With narrow frames of 0.75 or 0.90 meters and a load capacity of up to 250 kg per platform, this scaffold is suitable for placement in narrow spaces. The platform is available in lengths of 1.85, 2.45, or 3.05 meters. Welded anti-slip rungs and fixed locking pins make the frame extremely strong and 100% reliable. With the Safe-Quick® version, you always have all-round protection and are always safe.
- Narrow rolling scaffolds have frames of 0.75 or 0.90 meters. This means that one platform can be placed per level. This makes narrow scaffolds extremely suitable if you have limited space.
- The rolling scaffold system can be expanded with components from the RS TOWER 5 series and combined with other applications, such as a walkway and cantilever console.
- With the innovative Safe-Quick® GuardRail, you install a permanent handrail before stepping onto the platform. This ensures you are protected all around at every level. Moreover, Safe-Quick® complies with the new assembly method that is mandatory as of January 1, 2018.
- Crimped claw-bracing tube connections make the RS TOWER 51 mobile scaffold extremely strong. The connections are not welded and can take a beating. The mobile scaffold system is available with wooden or lightweight platforms. Fiber-Deck® platforms are 30% lighter and make assembly and disassembly quick and easy.
- With the innovative platform hook, you can assemble and disassemble the mobile scaffold even faster. The wind uplift protection is integrated into the unique design.
- The locking pins are attached directly to the frame. This ensures they are always in the right place and are always at hand. Your mobile scaffold stands firmly in place with the double-braked wheels. Easily unlocked by hand and adjustable by up to 25 cm.
Technical data
- Floor area: 4870 x 2730 mm
- Base dimensions: 0.75 m x 2.45 m
- Platform material: Wood
- Max. standing height: 8200 mm
- Max. working height : 10200 mm
Standard included
- Narrow assembly frame 7 rungs RS TOWER 5 8x
- Narrow assembly frame 4 rungs RS TOWER 5 2x
- Wheel stand with wheel Ø 200 mm RS TOWER 5 4x
- Wooden platform 245 with hatch RS TOWER 5 4x
- Safe-Quick 9x
- Uncoated horizontal brace 245 RS TOWER 5 2x
- Easy-Lock triangular stabilizer RS5 red 4x
- Aluminum kickboard set 0.75 x 2.45 RS TOWER 5 1x
Image may vary
