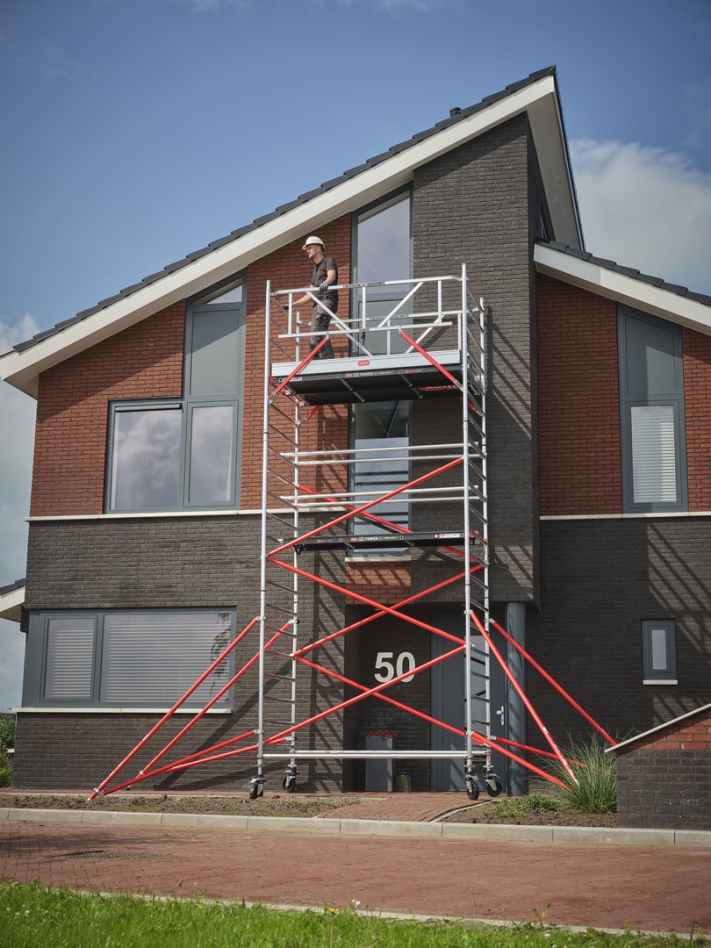

Altrex RS TOWER 52-S 10.2m working height Fiberdeck 3.05 Safe-Quick
Special features
- The RS TOWER 52 is the mobile scaffold you can rely on, both indoors and outdoors. The system can be expanded with all components from the RS TOWER 5 series. Furthermore, you can connect the scaffold to other applications, such as a walkway or cantilever console. This makes your mobile scaffold not only strong and safe, but above all very flexible.
- You create your own custom solution with the RS TOWER 52. And that up to 10.2 meters outdoors and 14.2 meters in height indoors. With wide frames of 1.35 meters and a load capacity of up to 250 kg per platform, there is room for two people and the necessary tools. The platform is available in lengths of 1.85, 2.45, or 3.05 meters. Welded anti-slip rungs and fixed locking pins make the frame extremely strong and 100% reliable. With the Safe-Quick® version, you always have all-round protection and are always safe.
- Wide rolling scaffolds have a frame of 1.35 meters. This means that two platforms can be positioned side by side, providing a larger working surface.
- The rolling scaffold system can be expanded with components from the RS TOWER 5 series and combined with other applications, such as a walkway and cantilever console.
- With the innovative Safe-Quick® GuardRail, you install a permanent handrail before stepping onto the platform. This ensures you are protected all around at every level. Moreover, Safe-Quick® complies with the new assembly method that is mandatory as of January 1, 2018.
- Crimped claw-bracing tube connections make the RS TOWER 52 mobile scaffold extremely strong. The connections are not welded and can take a beating.
- With the RS TOWER 5 mobile scaffold, it is possible to connect multiple scaffolds together. This allows you to create a large working surface without any height difference occurring between platforms. This is practical and, above all, very safe.
- The locking pins are attached directly to the frame. This ensures they are always in the right place and are always within reach.
- Your mobile scaffold stands firmly in place with the double-braked wheels. Easily unlocked by hand and retractable by up to 25 cm.
Technical specifications
- Base dimensions: 1.35 m x 3.05 m
- Platform material: FiberDeck
- Max. standing height: 8200 mm
- Max. working height : 10200 mm
Standard included
- Wide assembly frame 7 rungs RS TOWER 5 8x
- Wide assembly frame 4 rungs RS TOWER 5 2x
- Wheel stand with wheel Ø 200 mm RS TOWER 5 4x
- Fiber-Deck® platform 305 with hatch RS TOWER 5 4x
- Fiber-Deck® platform 305 without hatch RS TOWER 5 1x
- Safe-Quick 10x
- Uncoated horizontal brace 305 RS TOWER 5 2x
- Easy-Lock triangular stabilizer RS5 red 4x
- Aluminum kickboard set 1.35 x 3.05 RS TOWER 51x
Image may vary
