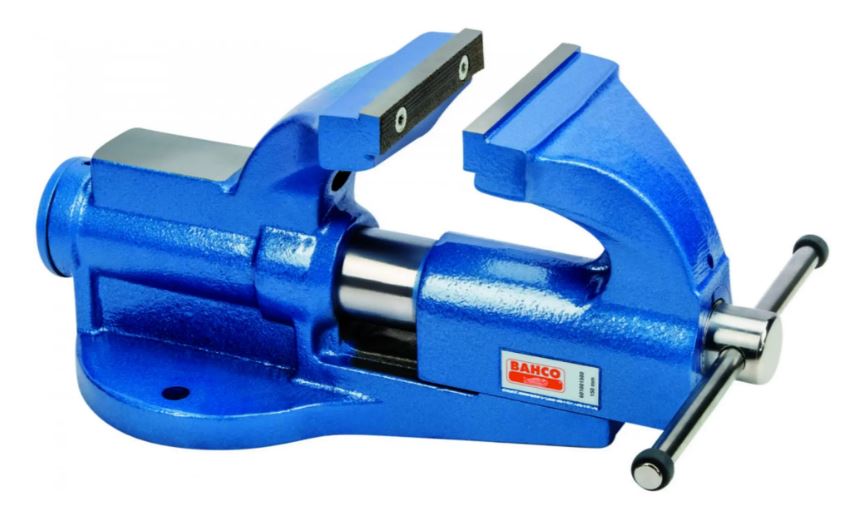

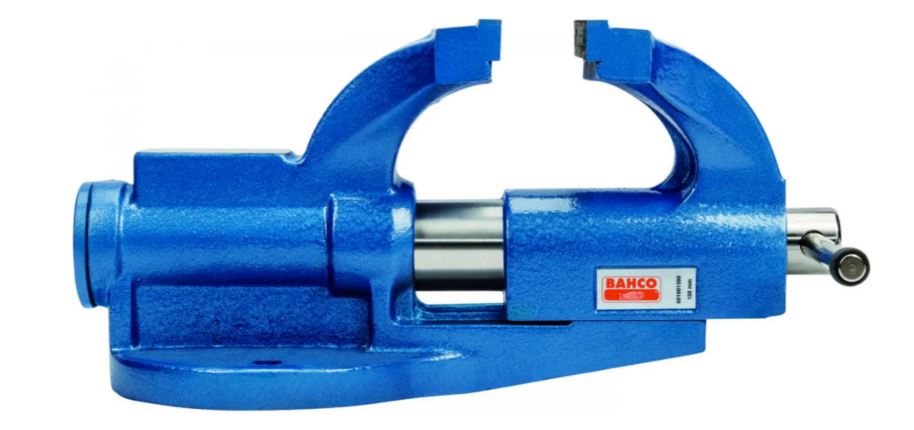

Bahco 6010 Vise with Interchangeable Jaws 150 mm
Special Features
The Bahco 6010 vise is a robust and reliable choice for heavy-duty and professional work. Made of high-quality cast steel and equipped with interchangeable, hardened jaws, this vise offers durability and long-lasting performance. The laminated spindle thread ensures smooth operation, while the forged spindle with chrome finish and rubber safety rings provides extra safety and strength. The extra-large polished anvil increases the working area, and compatibility with the optional swivel base 833SB offers additional flexibility. The vise complies with the UNE 16598 standard and features replaceable parts for easy maintenance, increasing efficiency and service life.
Benefits
- Heavy-duty, professional vise with round guide
- Made of high-quality cast steel
- Interchangeable, surface-hardened jaws
- Laminated spindle thread for smooth operation
- Spindle with forged and chrome finish and rubber safety rings
- Extra large polished anvil
- Can be used with swivel base 833SB
- Spare jaws and spindle 6010M and 6010H
- Standard: UNE 16598
- Smooth operation thanks to the laminated spindle thread
- Extra working area provided by extra large anvil
Technical specifications
- Jaw width 150 mm
- Clamping width B 170 mm
- Height between jaws C 105 mm
- Vipe height D 230 mm
- Clamping lever length E 310 mm
- Distance between mounting holes G 165 mm
- Diameter of mounting holes F 17 mm
- Length L 414 mm
- Weight 29700 grams
