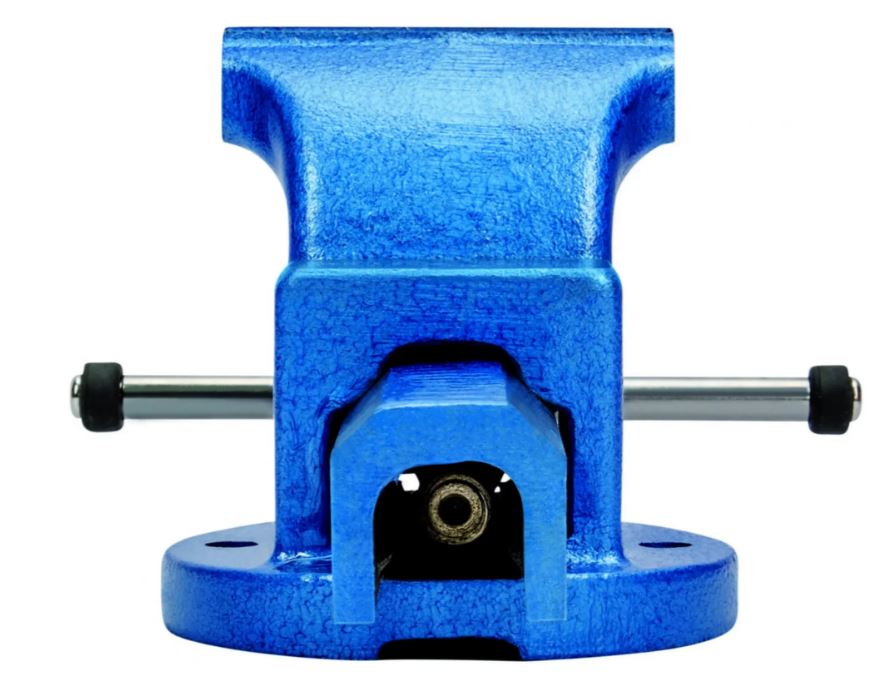

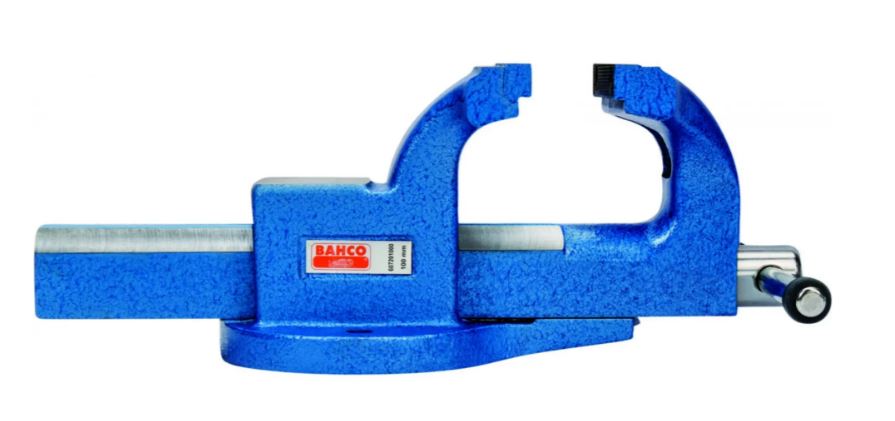

Bahco 6072 Vise with Interchangeable Jaws 175 mm
Special Features
The Bahco 6072 vise is a heavy-duty, professional choice for intensive work. With its high-quality cast steel construction, interchangeable and hardened jaws, and smooth operation thanks to the laminated spindle thread, this vise offers durability and efficiency. The extra-large polished anvil provides a larger working area, while the rubber safety rings and the forged spindle with chrome finish ensure safety and strength. The option to use it with an optional swivel base 833SB adds extra flexibility. This vise meets the UNE 16598 standard and offers extra ease of maintenance with replaceable parts.
Benefits
- Heavy-duty, professional vise with square guide
- Made of high-quality cast steel
- Interchangeable, surface-hardened jaws
- Laminated spindle thread for smooth operation
- Spindle with forged and chrome finish and rubber safety rings
- Extra large polished anvil
- Can be used with swivel base 833SB
- Spare jaws and spindle 6072M and 6070H
- Standard: UNE 16598
- Smooth operation thanks to the laminated spindle thread
- Extra working area provided by extra large anvil
Technical specifications
- Jaw width 175 mm
- Clamping width B 250 mm
- Height between jaws C 112 mm
- Vipe height D 213 mm
- Clamping lever length E 340 mm
- Distance between mounting holes G 165 mm
- Diameter of mounting holes F 17 mm
- Length L 551 mm
- Weight 30350 grams
