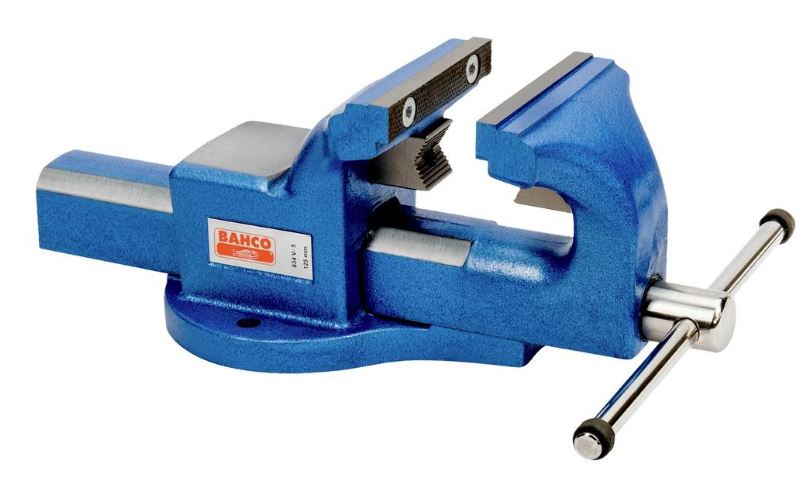

Bahco 834V-7 Vise with interchangeable jaws 175 mm
Special Features
- The Bahco 834V-7 is a heavy-duty vise designed for versatile use in various working environments.
- Made of high-quality cast steel, this vise offers durability and reliability for heavy-duty jobs.
- Equipped with interchangeable jaws.
- Ideal for the workshop or for work on the job site
Benefits
- Heavy-duty vise with square guide
- Made of high-quality cast steel
- Interchangeable, surface-hardened jaws
- Hardened pipe-gripping jaws and adjustable guide via a centrally located screw
- Laminated spindle thread for smooth operation
- Spindle with forged and chrome-plated and rubber safety rings
- Extra large polished anvil
- Spare jaws and spindle 6072M and 6070H
- Smooth operation thanks to the laminated spindle thread
- Extra working area provided by extra large anvil
- UNE 16598: Meets quality standards for tools.
Technical data
- Jaw width 175 mm
- Clamping width B 250 mm
- Height between jaws C 112 mm
- Vipe height D 211 mm
- Clamping lever length E 340 mm
- Distance between mounting holes G 165 mm
- Diameter of mounting holes F 17 mm
- Length L 551 mm
- Weight 29400 grams
