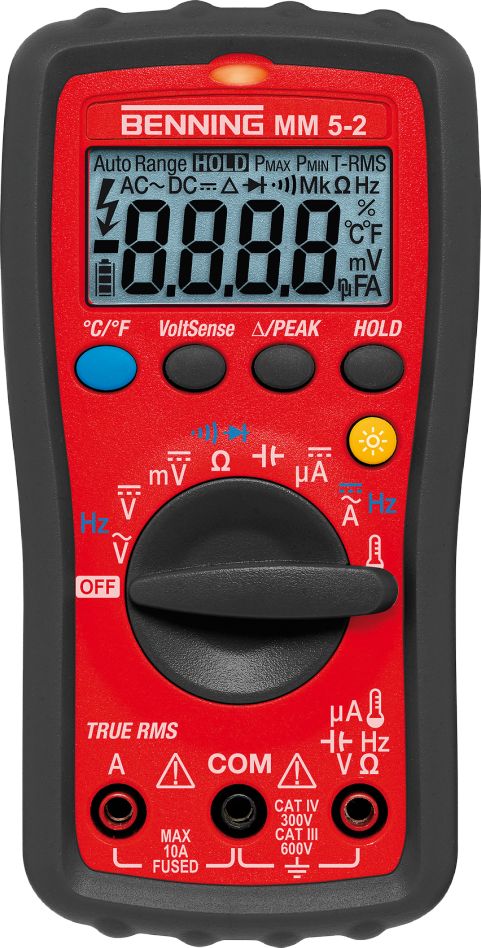

Benning 044071 MM 5-2 Digital Multimeter TRUE RMS
Innovative digital multimeter with TRUE RMS measurement method and integrated volt sensor.
Special features
- µA DC current range
- Easy-to-read LCD display with 16 mm digit height and backlight
- Voltage sensor for contactless cable break testing
- Rubber protective cover with magnetic holderMeasurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance, temperature
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 150 x 77 x 44 mm (with protective cover)
- Weight: 310 g (with protective cover)
- Includes rubber protective cover, magnetic holder, carrying bag, safety test leads, wire temperature sensor, batteries, and instruction manual
Technical data
- Distance range: 6,000
- Bar graph: No
- Backlight: Yes
- Accuracy: 0.5 %
- Voltage AC: 0.1 mV - 600 V
- Voltage DC: 0.1 mV - 600 V
- Current AC: 1 mA - 1 A
- Current DC: 0.1 µA - 10 A
- Resistance: 0.1 Ohm - 40 MOhm
- Continuity: Yes
- Diode: Yes
- Frequency: 0.01 Hz - 50 kHz
- Capacity: 0.01 nF - 1 mF
- Temperature: -40 °C to +400 °C
- Voltage sensor: Yes
- Measurement range selection: Automatic
- Auto-Power-Off: Yes
- Memory function: HOLD, PEAK
- Measurement method: TRUE RMS
- Measurement category: CAT III 600V
