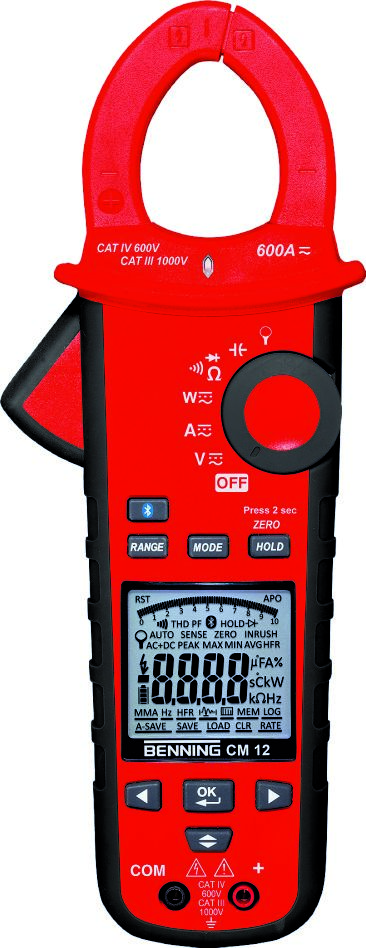

Benning 044680 CM 12 Clamp Meter Multimeter TRUE RMS

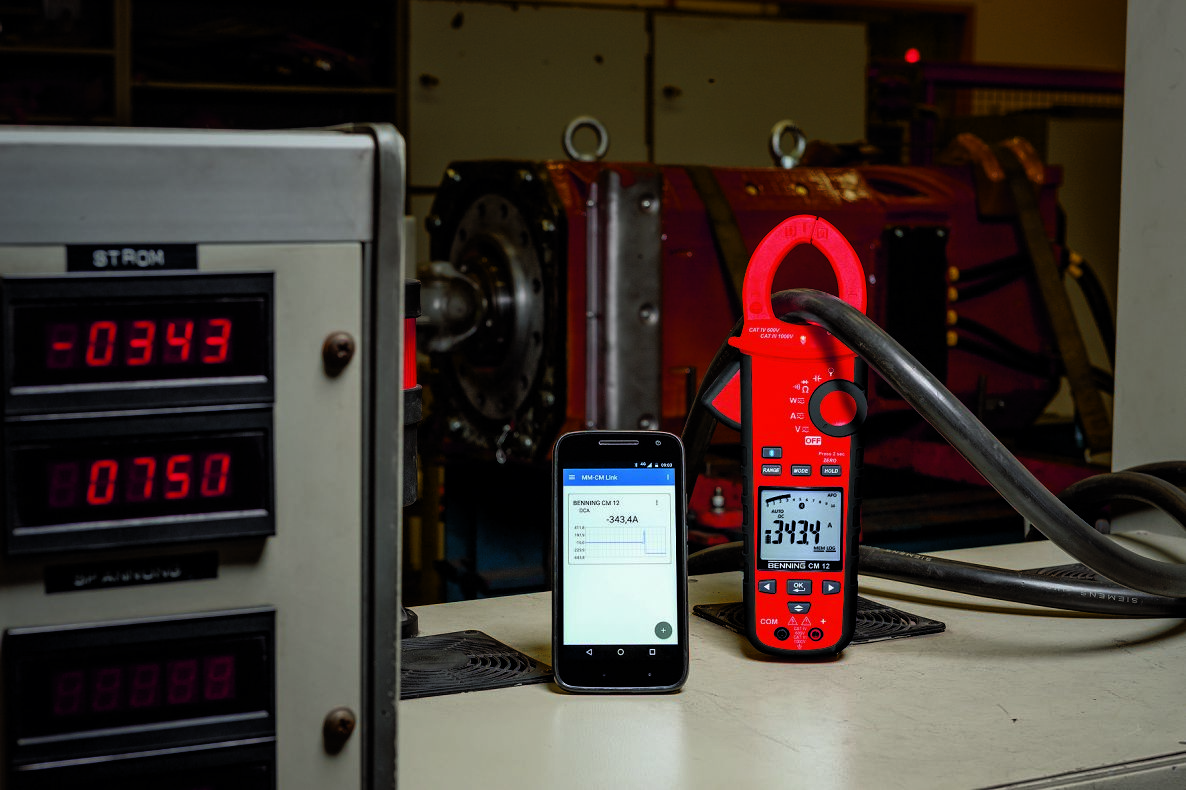

Power clamp meter with data logging function, Bluetooth® and app. Monitor, save, and share measurement values for further evaluation via the free BENNING MM-CM Link app.
Special features
- Simultaneous detection of current (A) and voltage (V) for effective measurements of power (W) and power factor (cos phi)
- Measurement of inrush currents (INRUSH) of motors
- Low-pass filter (HFR), harmonic distortion (THD) measurement
- Two-pole phase sequence test in three-phase networks
- Bluetooth® Low Energy 4.0 interface
- IOS and Android app for data transfer to smartphone/tablet
- Auto Sense function for automatic measurement range and function selection
- Optional: AC current measurement up to 3000 A via flexible current converter BENNIING CFlex 1 (item no. 44044068)Multimeter functions:
- Voltage, resistance, continuity, diode, frequency, capacitance
- Standard: IEC/EN 61010-1 (DIN-VDE 0411-1)
Technical data
- Display range: 9999
- Bar graph: Yes
- Backlight: Yes
- Accuracy: 1 %
- Voltage AC: 10 mV - 1000 V
- Voltage DC: 10 mV - 1000 V
- Current AC: 10 mA - 600 A
- Current DC: 10 mA - 600 A
- Resistance: 0.1 Ohm - 100 kOhm
- Continuity: Yes
- Diode: Yes
- Frequency: 0.01 Hz - 10 kHz
- Capacity: 1 nF - 4 mF
- Effective power: 1 W - 600 kW
- Power factor (cos phi): 0.00 - 1.00
- Volt sensor: Yes
- Interface: Bluetooth®
- Software: App (IOS/Android)
- Filter function: HFR (1000 Hz)
- Measurement range selection: Automatic/Manual
- Auto-Power-Off: Yes
- Memory function: A-SAVE, HOLD, MIN/MAX, PEAK, AVG, INRUSH
- Data logging function: 9999 measured values (time interval 1 s - 600 s)
- Measurement method: TRUE RMS
- Plug opening: 33 mm
- Measurement category: CAT IV 600V
- Dimensions: 243 x 103 x 55 mm
- Weight: 380 g (with batteries)
Scope of delivery
- 1x Protective case
- Safety test leads
- Batteries
- User manual
