Benning 044690 MM 7-2 Digital Multimeter TRUE RMS
High-end multimeter in an ergonomic and rubber-coated 2K housing. For the most challenging measurement tasks in electrical engineering, industry, service, and HVAC technology. Electrical Engineering.
Special features
- LoZ voltage measurement with low input impedance for suppressing reactive voltages

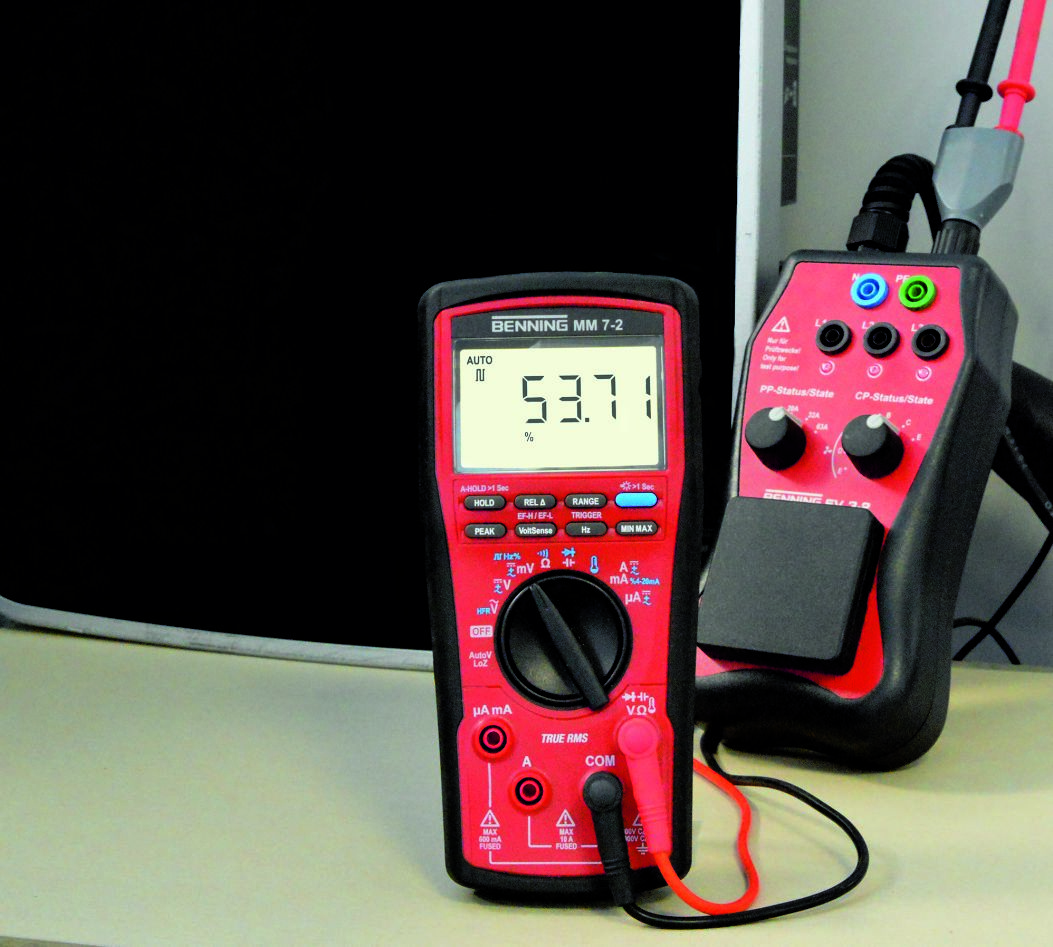

- Measurement of the CP control signal (duty cycle/amplitude) of EV charging stations (wall boxes) for electric vehicles (requires the BENNING EV 3-2 test adapter, Art. No. 044169 and adapter BNC - 4 mm jack, Art. No. 10231627) Industry:
- TRUE RMS voltage and frequency measurement for frequency converters and loads with superimposed harmonics
- Measurement of the 4 mA to 20 mA current loop signal in process engineering Service:
- AutoV function with automatic switching (AC/DC) and measurement range selection for rapid troubleshooting
- Visual and acoustic continuity test with fast response time (< 100 µs) for locating defective components, cable breaks, and loose terminals HVAC technology:
- µA measuring range for measurements on flame sensors (ionization current) and measurement of the anode current (mA) of hot water boilers
- Measurement of temperature and flue gas temperature in heating, ventilation, and air conditioning systems (HVAC) Features:
- Duty cycle: 0.1% - 99.99%
- Highest measurement category CAT IV 600 V for maximum safety
- max. measurement accuracy in the DC voltage range: 0.03 %
- AutoV function for automatic AC/DC voltage detection and measurement range selection

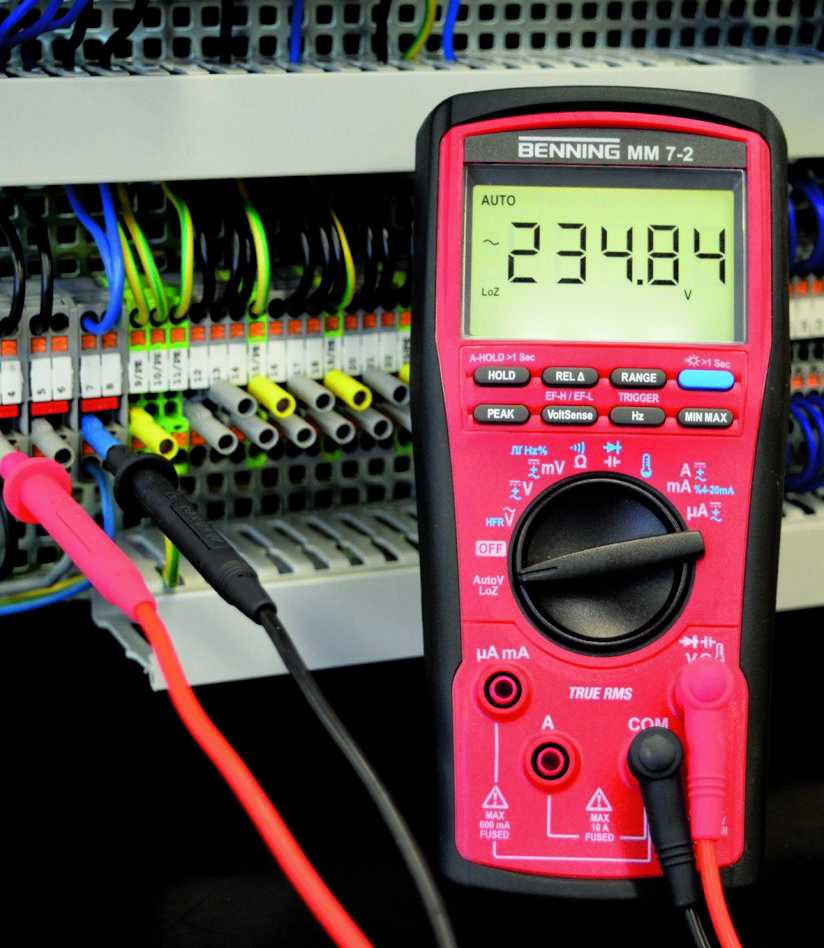

- Low input impedance (LoZ) for suppressing reactive voltages
- Low-pass filter (HFR - High-frequency suppression) for measurements on frequency converters (motor controls)
- Display HOLD and Auto-HOLD when the measured value is stable
- Integrated volt sensor with 2 sensitivity levels for contactless voltage indication and cable break detection
- Measuring socket protection (optical/acoustic) in the µA/mA and A range with warning for incorrect range selection
- 1 kV HBC high-performance fuse with high tripping capacity
- 5-digit LCD display with bar chart and backlight Measurement functions:
- Voltage, current, resistance, continuity, diode test, frequency, capacitance, temperature
- Standard: IEC/EN 61010-1 (DIN VDE 0411-1)
- Dimensions: 193 x 89 x 51 mm (with protective cover)
- Weight: 420 g (with protective cover)
- Includes rubber protective cover with rear stand and test lead holder, carrying bag, high-quality silicone test leads with gold-plated 2 mm and 4 mm test tips (screw-on), wire temperature sensor, batteries (3 x 1.5 V micro AAA/IEC LR03) and user manual
Technical data
- Signal range: 60,000
- Bar graph: Yes
- Backlight: Yes
- Accuracy: 0.03 %
- Voltage AC: 10 µV – 1000 V
- Voltage DC: 10 µV – 1000 V
- Current AC: 0.01 µA – 10 A
- Current DC: 0.01 µA – 10 A
- Resistance: 0.01 Ohm - 60 MOhm
- Continuity: Yes
- Diode: Yes
- Frequency: 0.001 Hz - 1 MHz
- Capacitance: 0.01 nF - 10 mF
- Temperature: -200 °C to +1090 °C
- Volt sensor: Yes
- Filter function: HFR filter (1000 Hz)
- Measurement range selection: Automatic/Manual
- Auto Power-Off: Yes
- Memory function: HOLD/A-HOLD, MIN/MAX/AVG, PEAK/REL
- Measurement method: TRUE RMS
- Measurement category: CAT IV 600V/CAT III 1000V
