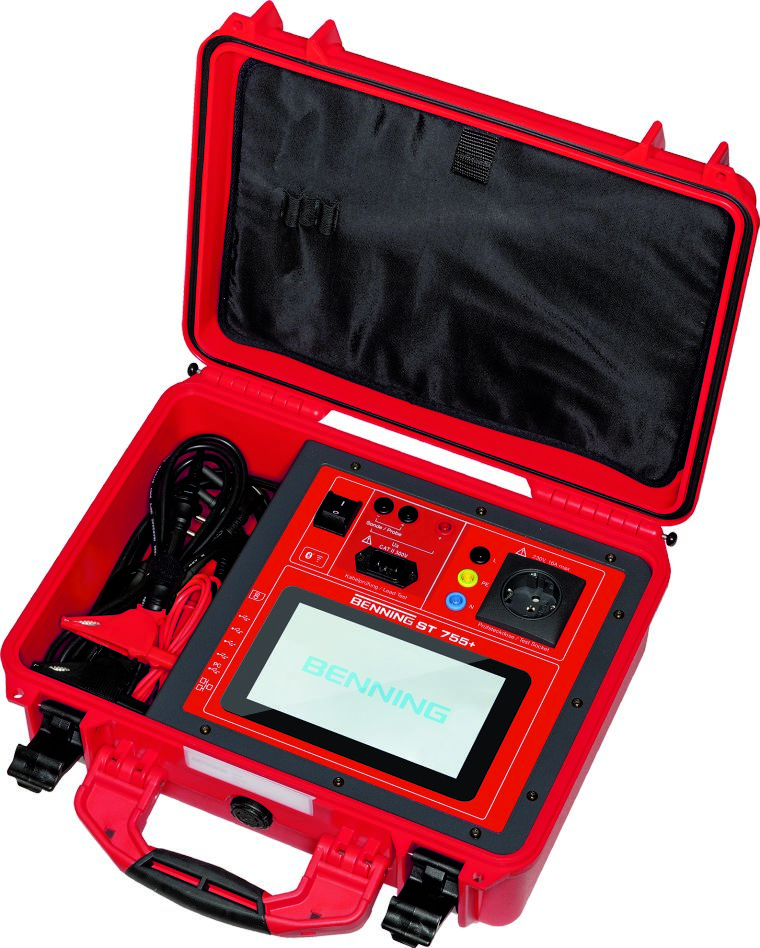

Benning 050332 ST 755+ Appliance Tester
For testing electrical appliances and medical electrical devices.
Special features
- 35% larger user interface thanks to a brilliant 7-inch color touchscreen
- Individually customizable appliance templates (24 templates per test standard) for quick test sample setup at the touch of a button
- Auto-ID function for automatically increasing the ID number when creating new test objects
- Device data that can be displayed individually via "On/Off Slider" for optimal handling
- Favorites menu to go directly to frequently used submenus
- Delivery includes calibration certificate
Technical data
- Display: Color touchscreen
- Ground resistance (Rpe): 0.05 Ohm - 10 Ohm
- Insulation resistance (Riso): 0.1 MOhm - 100 MOhm
- Ipe/Iber via differential current measurement: 0.03 mA - 25 mA
- Ipe/Iber via equivalent leakage current: 0.03 mA - 25 mA
- Ipe/Iber via direct measurement: 0.03 mA - 25 mA
- RCD test current: 10 mA - 300 mA
- Voltage range: 1 V - 360 V
- Current: 0.1 A - 16 A
- Measurement value memory: SD card
- Interface: WLAN, Bluetooth® , 4 x USB, Mini-USB, RJ45
- Software: BENNING PC-Win ST 750-760
Scope of delivery
- Test device in shockproof case (IP 67)
- Set of test leads/alligator clips
- 2-pole test lead
- IEC cable
- SD card
- Calibration certificate
