BESSEY BEY23 BEYCEPS Construction Jack Assembly Tool up to 180 kg
Special features
- On one side, the 2-component plastic pump handle is located at the top, and on the other side, the release and fine-lowering levers are mounted separately.
- This design ensures fast and safe handling
- The safety feature prevents unintentional activation and accidents

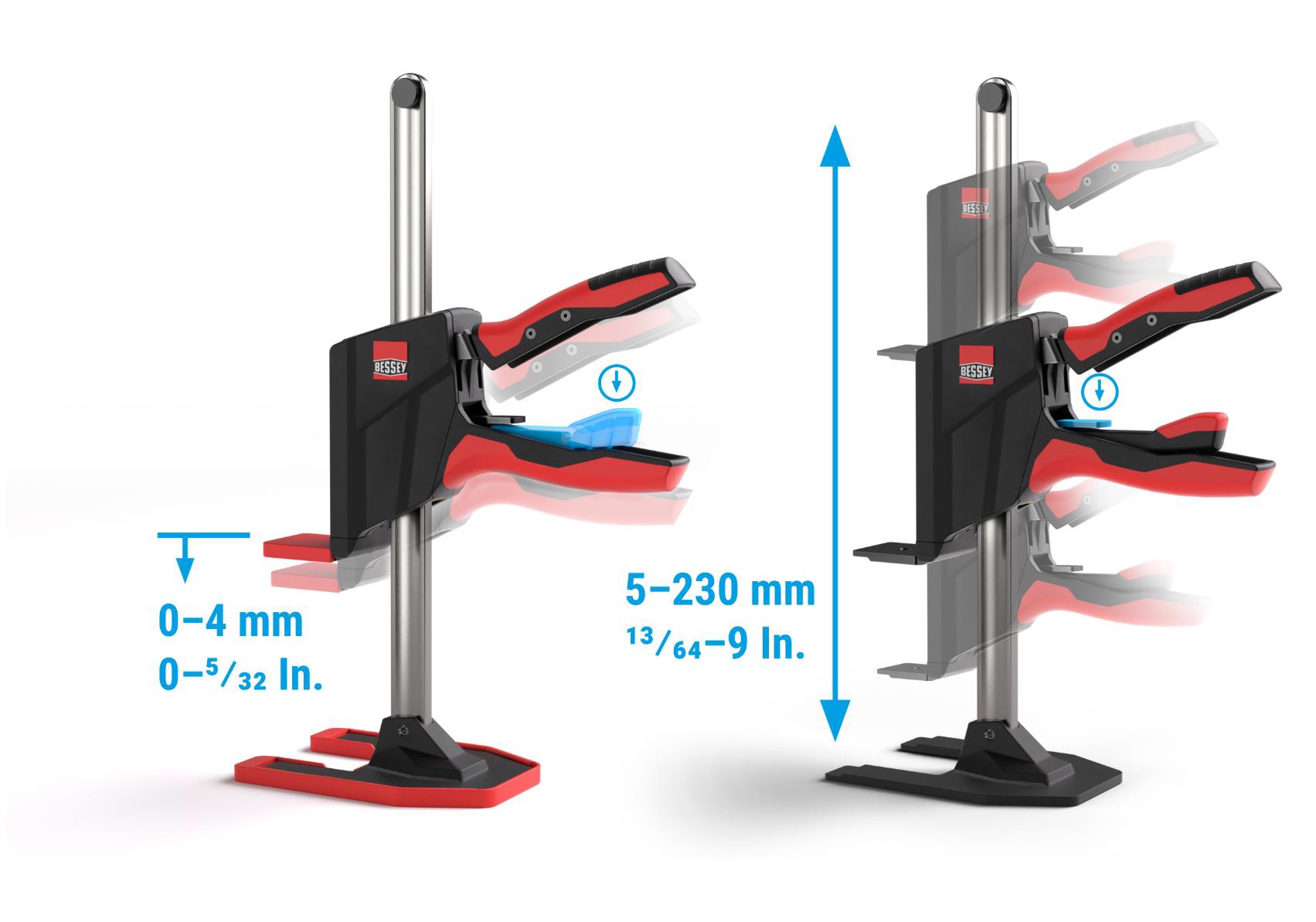

- Large usable surface area Without the protective cap mounted on the base, the BEYCEPS offers a usable range of 5 to 230 mm

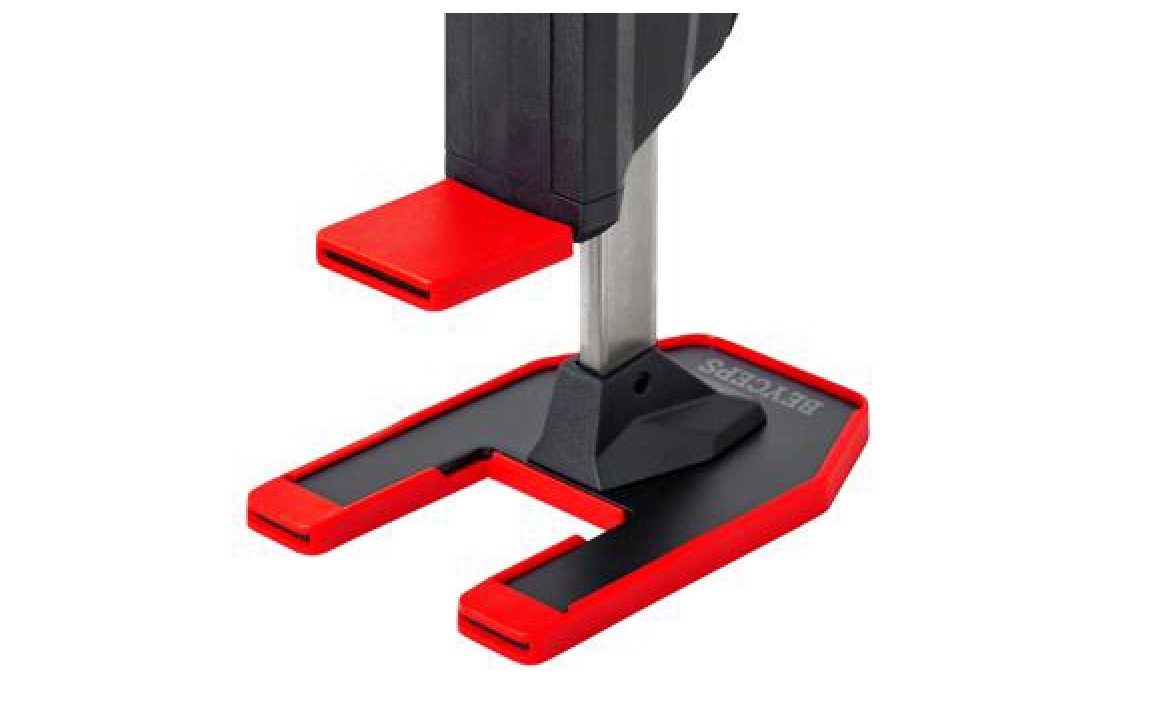

- Protection of sensitive materials Protective caps for the base and the lifting plate are included in the delivery.
- The protection is easy to install and prevents damage to floors and workpieces.
- Protection of installers and people. The enclosed plastic housing protects the mechanism against dust, dirt, and chips and prevents fingers from getting pinched.
- Precise operation Gentle and safe lifting, lowering, and aligning with millimeter precision
- Ergonomic and intuitive operation
- High lifting capacity
Technical data
- Max weight of 1,800 N / 180 kg / 400 pounds
- up to 8 mm stroke per operation of the pump lever
- up to 4 mm fine lowering per operation of the lowering lever
- Hub capacity (kg): 180
- Usable lifting surface / Spread (mm): 5-230
- Useful clamping range (mm): 170-390
- Rail (mm): 22x8
Scope of delivery
- 1 x one-handed assembly tool (Construction jack)
- 1 x protective cap set for base and lifting plate
