BGS 74348 Pneumatic Right-Angle Impact Wrench 12.5 mm (1/2") 650 Nm incl. 10-piece power socket set in case
Special features
- Compact set composition
- Powerful and robust air impact wrench with 9 different power sockets
- For use with hexagonal nuts or screw heads
- Can be used in many places where other impact wrenches cannot be used
- For working on screw connections on the brake caliper or other hard-to-reach workplaces

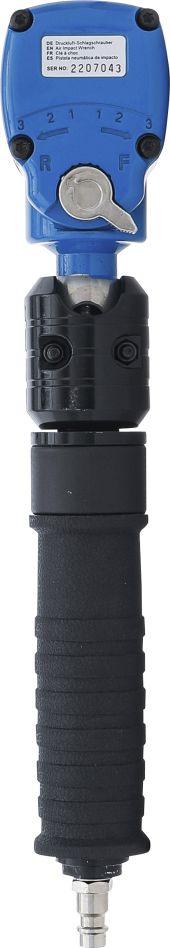

- Handle adjustable around its own axis for optimal handling

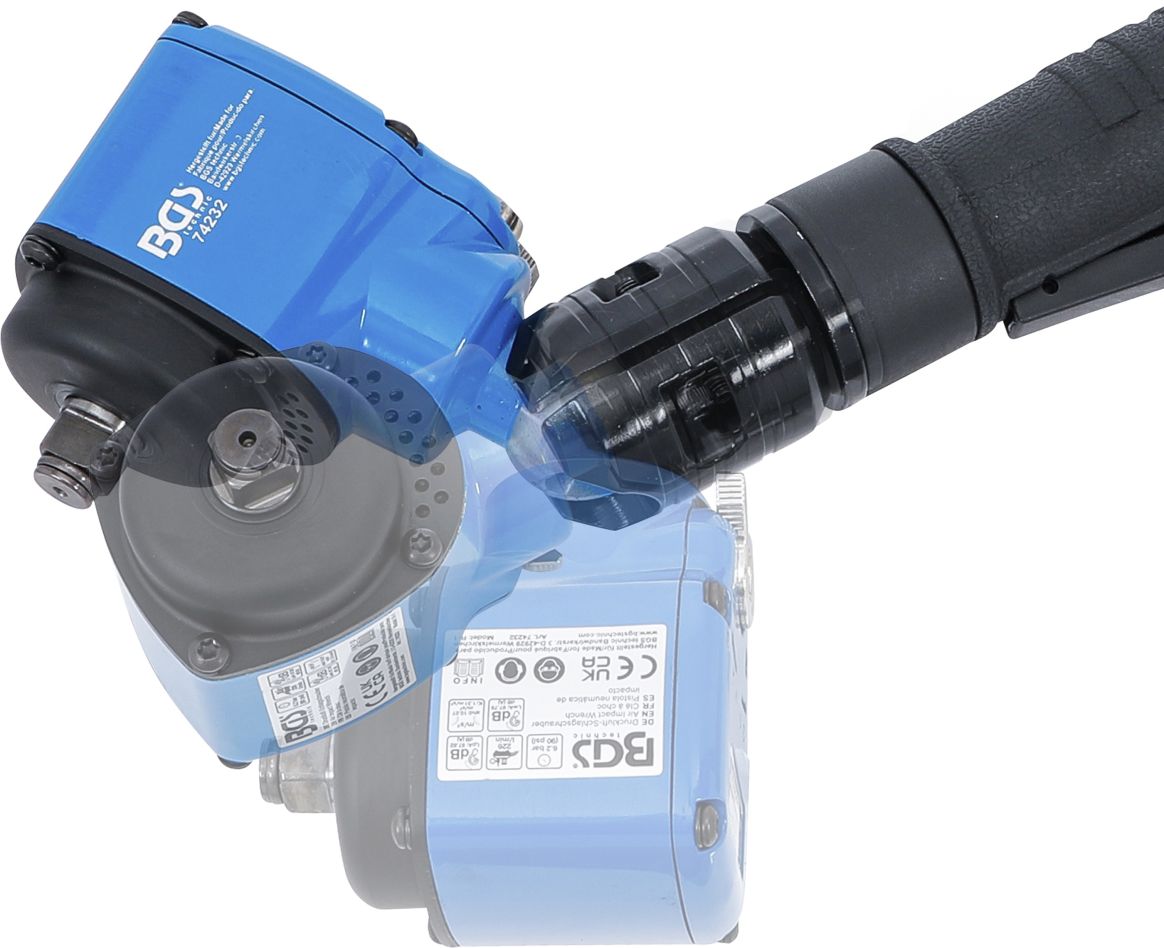

- Both handle and flexible head adjustable for optimal adaptation to the working environment
- 3-stage adjustable speed
- Low vibration
- Easy to use
- Compact design with a length of only 86 mm
- One-hand operation for left- and right-handed users
- Hammer mechanism: jumbo hammer
- Vibration level (ahd): 10.07 m/s²
- Vibration level (K): 1.31 m/s²
Technical data
- Shaft profile: External square
- Shaft profile size, inch: 1/2 "
- Shaft profile size, metric: 12.5 mm
- Operating pressure: 6.2 bar
- Gross weight: 3090 g
- Max. torque: 610 Nm
- Mit. torque: 450 Nm
- Rotation direction: Right/left
- Max. speed: 8000 rpm
- Compressed air connection: 1/4"
- Recommended internal hose diameter: 10 mm
- Breakaway torque max.: 650 Nm
- Air consumption: 226 l/min
- Sound pressure level max.: 87.62 dB(A)
- Sound power level max.: 97.78 dB(A)
Scope of delivery

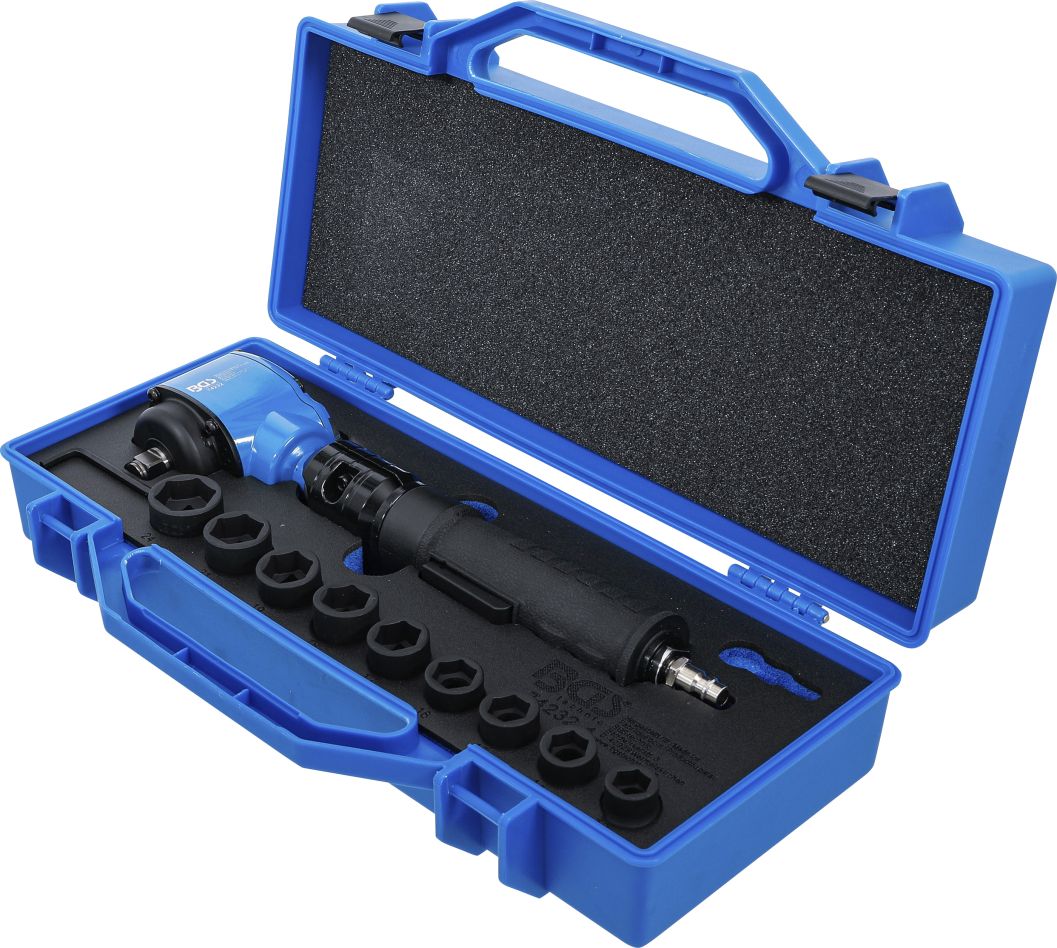

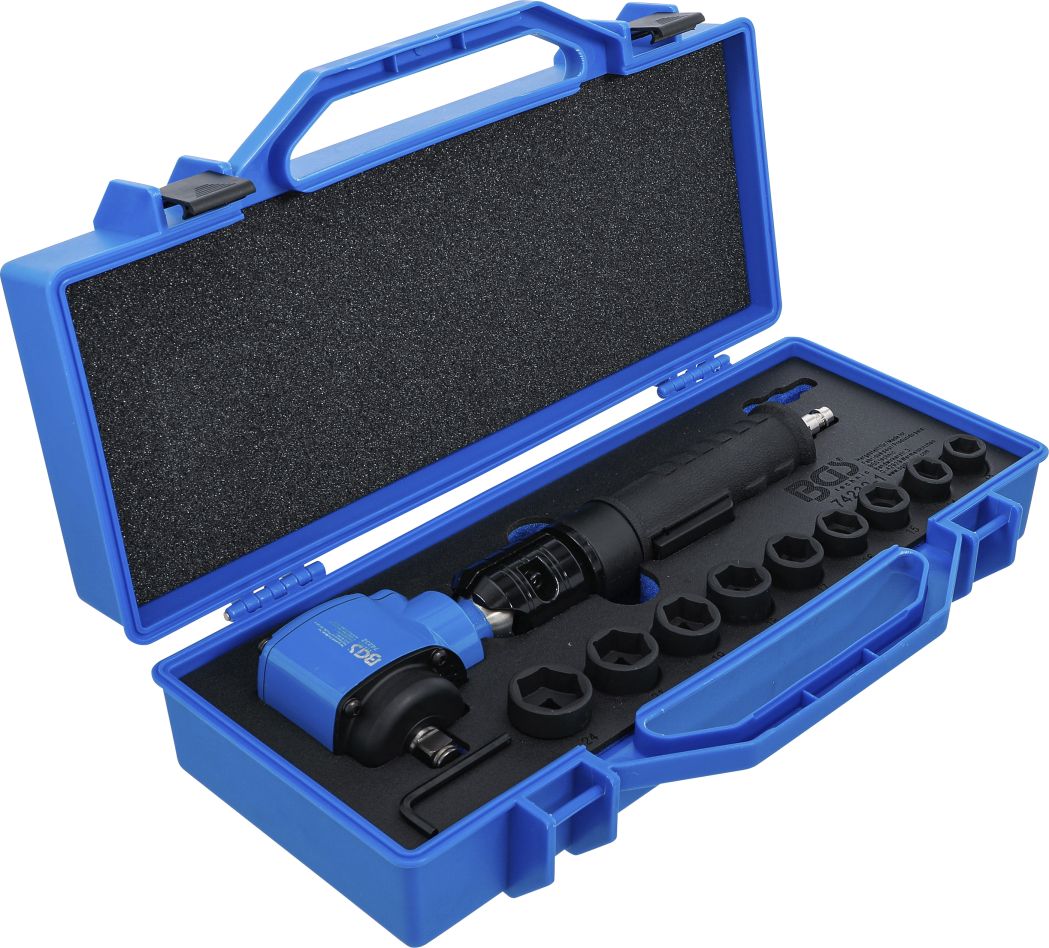

- 1 compressed air impact wrench | angled | with rotating and tilting head | 12.5 mm (1/2") | 650 Nm (BGS 74232)
- 1 power socket set, hexagon, extra flat | 12.5 mm (1/2") | 13 - 24 mm | 9 pieces (BGS 9551)
