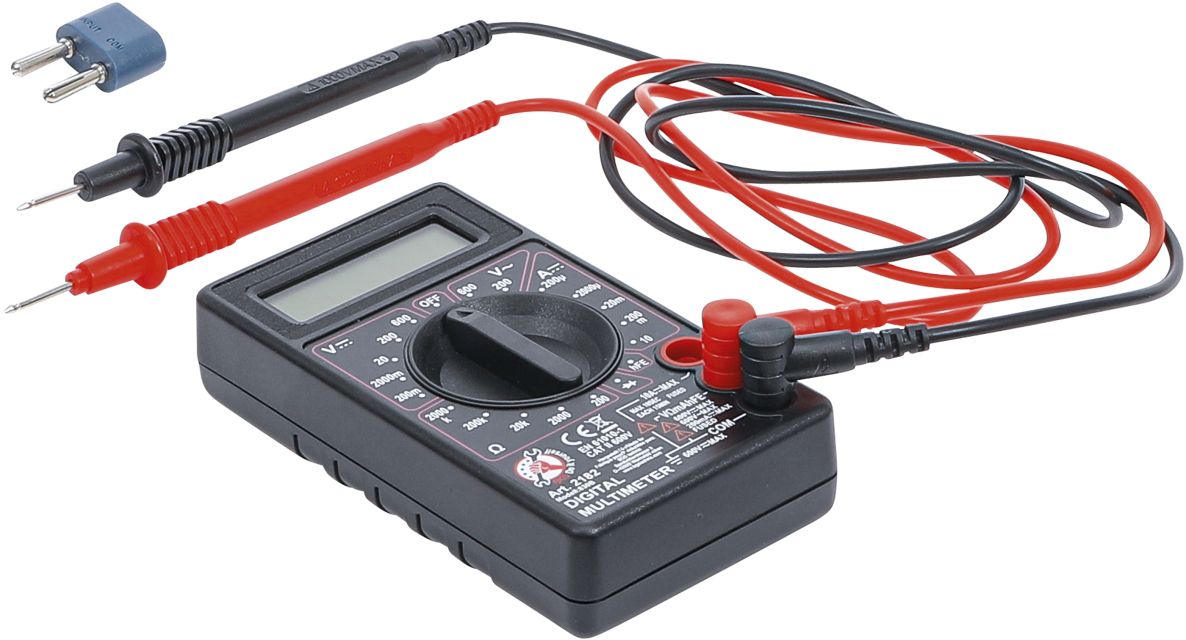

BGS Do It Yourself 2182 Digital Multimeter
Special features
- 7-segment display, 12.5 mm, 3.5 marks
- Suitable for measurements in the CAT II range, such as plug-in household appliances, automotive electrical systems, etc.
Covers the most common measurement ranges:
- DC voltage: 200 mV, 2000 mV, 20 V, 200 V, 600 V
- AC voltage: 200 V, 600 V
- DC current: 200 µA, 2000 µA, 20 mA, 200 mA, 10 A
- Resistance: 200 µA, 2000 ¦, 20 K¦, 200 K¦, 2000 K¦
- Diode test
- Transistor test (hfe) via adapter
- Battery information display, indicates when the battery needs to be replaced
- Operating temperature: 10 °C - 40 °C / 0 - 75 % relative humidity
- Storage temperature: -10 °C - 50 °C / 0 - 75 % relative humidity
Technical data
- Battery type: 2 x AAA | 1.5 V
- Width: 70 mm
- Gross weight: 206 g
- Weight incl. batteries: 0.14 kg
- Height: 24 mm
- Length: 126 mm
- Packaging suitable for wall covering: Yes
Scope of delivery
- Batteries
- Measuring cable
- Adapter for hfe measurement
