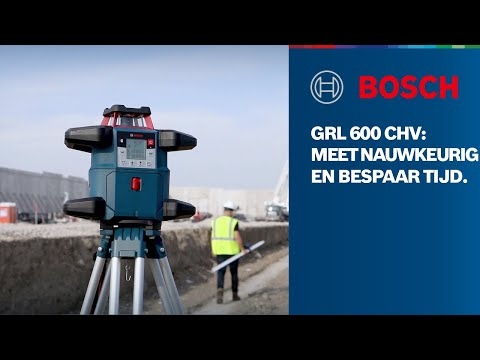

Bosch 0601061F00 GRL 600 CHV Professional Rotary Laser 18V 4.0 ProCore + 5-year dealer warranty!
Now a total of 5 years warranty on Bosch Blue Machines(*)
(*) In addition to the Bosch factory warranty, you receive an extra 2 years TOOLPLUS* warranty from us.
ToolNation TOOLPLUS* Warranty: 2 years extra toolplus warranty on power tools
Special features
- Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs
- Thanks to its robust design, impact protection, and IP68 protection against dust and water, the tool is highly versatile for use in bad weather conditions
- Settings are intuitive via the screen and with access to the Levelling Remote app all functions are displayed, including slope adjustment on both sides to save time
- Practically long runtime with both 18V battery system and alkaline batteries (adapter included)
- Sturdy and suitable for any construction site: the robust GRL 600 CHV Professional can withstand the toughest conditions.
- The sturdy construction offers protection against impacts and has IP68 protection against dust and water.
- This also applies to the battery compartment, making the instrument flexibly deployable in bad weather conditions.
- It offers simple connectivity, allowing you to work more efficiently with less wasted time.
- Operation of the tool is intuitive thanks to the screen and access to the Levelling Remote app, which displays all functions, including slope adjustment on both sides, to save valuable time.
- This highly accurate laser has a long operating time, both with the included 18V battery pack and the alkaline batteries so that continuous work is possible.
- Use this device for outdoor applications when determining excavation work for digging and backfilling, concrete forms, landscaping, and facade work.
- The GRL 600 CHV also features a high-quality receiver with a reception field of 125 mm, a double-sided display, and a millimeter correction function.
- Calibration of the device is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and guarantee accurate results on every job.
- Use the practical 'masking mode' in the app to avoid reflection and interference with other devices on the construction site.
Technical data
- Laser diode 630 – 650 nm, < 1mW
- Operating temperature -10 – 50°C
- Storage temperature -20 – 50°C
- Laser class 2
- Working range with receiver up to and including 600 m (diameter)
- Working range without receiver up to and including 60 m (diameter)
- Levelling accuracy ± 1.5 mm at 30 m* horizontally (*plus usage-dependent deviation), ± 3.0 mm at 30 m* vertically (*plus usage-dependent deviation)
- Self-levelling range ±8.5% (±5°)
- Dust and splash water protection IP 68
- Rotation speed 150/300/600 min-1
- Power supply 18 V Li-Ion battery, 4 x D batteries
- Operating time, max. 60 hours, 70 hours
- Tripod thread 2 x 5/8"
- Laser line color red
- Projection 1 x 360° line
- Compatible laser receivers LR 60
- Weight with 4.0 Ah battery 4.3 kg
- Weight with alkaline batteries 4.6 kg
Standard included
- Laser receiver LR 60 Professional 0 601 069 P00
- Receiver holder RB 60 Professional
- Remote control RC 6 Professional
- 1 x battery ProCORE18V 4.0Ah 1 600 A01 6GB
- Fast charger GAL 18V-40 Professional 1 600 A01 9RJ
- Battery adapter BA 1 Professional
- Wall holder WM 6 Professional
- 4 x 1.5 V LR20 battery (D)
- 4 x 1.5 V LR6 battery (AA)
- Laser aiming board
- Laser
