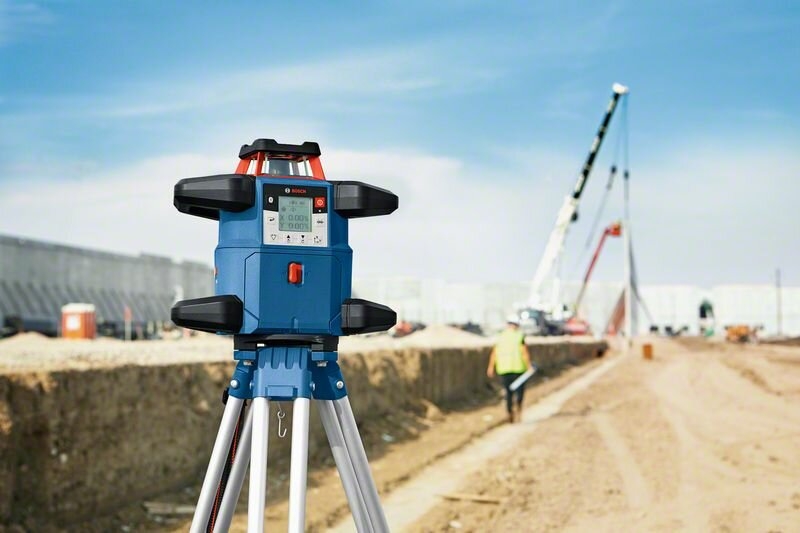

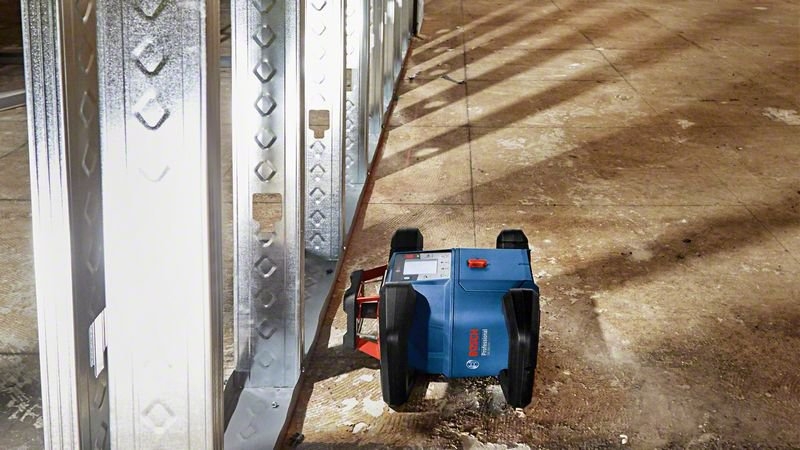

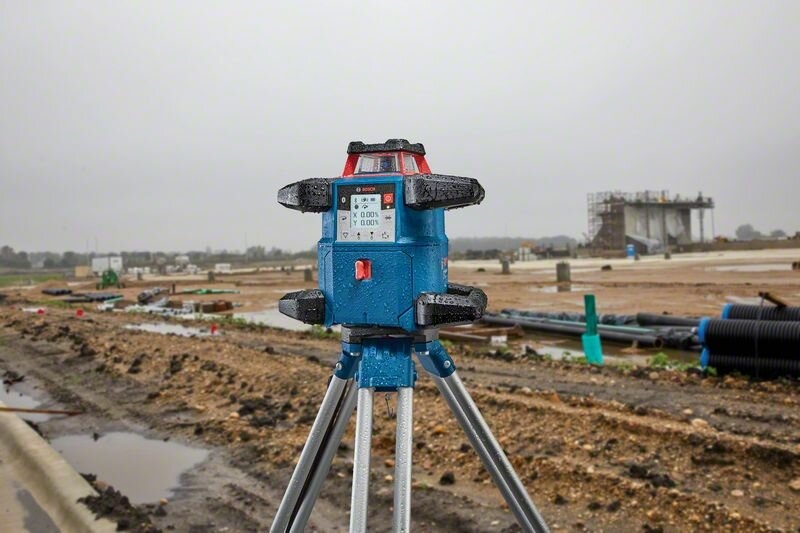

Bosch GRL 600 CHV Professional Rotary Laser 0601061F01 + 5-year dealer warranty!
Now a total of 5 years warranty on Bosch Blue Machines(*)
(*) In addition to the Bosch factory warranty, you receive an extra 2 years TOOLPLUS* warranty from us.
ToolNation TOOLPLUS* Warranty: 2 years extra Toolplus warranty on power tools
Special features
- Sturdy and suitable for every construction site: the robust GRL 600 CHV Professional can withstand the toughest conditions.
- The sturdy construction offers protection against impacts and has IP68 protection against dust and water.
- This also applies to the battery compartment, making the instrument flexible to use in bad weather conditions.
- It offers simple connectivity, allowing you to work more efficiently with less wasted time.
- Operation of the tool is intuitive thanks to the screen and access to the Levelling Remote app, which displays all functions, including slope adjustment on both sides, to save valuable time.
- This highly accurate laser has a long operating time, both with the included 18V battery pack and the alkaline batteries, allowing for continuous work.
- Use this device for outdoor applications for determining excavation work for digging and backfilling, concrete forms, landscaping, and facade work.
- The GRL 600 CHV also features a high-quality receiver with a reception field of 125 mm, a double-sided display, and a millimeter correction function.
- Calibration of the device is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and guarantee accurate results on every job.
- Use the practical 'Masking mode' in the app to avoid reflection and interference with other devices on the construction site.
Technical data
- Laser diode 630 – 650 nm, < 1mW
- Operating temperature -10 – 50°C
- Storage temperature -20 – 50°C
- Laser class 2
- Operating range with receiver up to and including 600 m (diameter)
- Operating range without receiver up to and including 60 m (diameter)
- Levelling accuracy ± 1.5 mm at 30 m* horizontally (*plus usage-dependent deviation), ± 3.0 mm at 30 m* vertically (*plus usage-dependent deviation)
- Self-leveling range ±8.5% (±5°)
- Dust and splash water protection IP 68
- Rotation speed 150/300/600 min-1
- Power supply 18 V Li-Ion battery, 4 x D batteries
- Operating time, max. 60 hours, 70 hours
- Tripod thread 2 x 5/8"
- Laser line color red
- Projection 1 x 360° line
- Compatible laser receivers LR 60
- Weight with 4.0 Ah battery 4.3 kg
- Weight with alkaline batteries 4.6 kg
Standard included
- Laser receiver LR 60 Professional 0 601 069 P00
- Receiver holder RB 60 Professional
- Battery adapter BA 1 Professional
- Wall mount WM 6 Professional
- 4 x 1.5 V LR20 battery (D)
- 4 x 1.5 V LR6 battery (AA)
- L-Boxx 374 1 600 A01 2G3
*Toolnation, as the sole Bosch supplier, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system. (warranty only valid after registration see conditions in this link)
Dealer warranty:
Toolnation is an official Bosch dealer and offers you a full warranty in accordance with Bosch's terms and conditions. It is important for you as a customer that you purchase a product with
