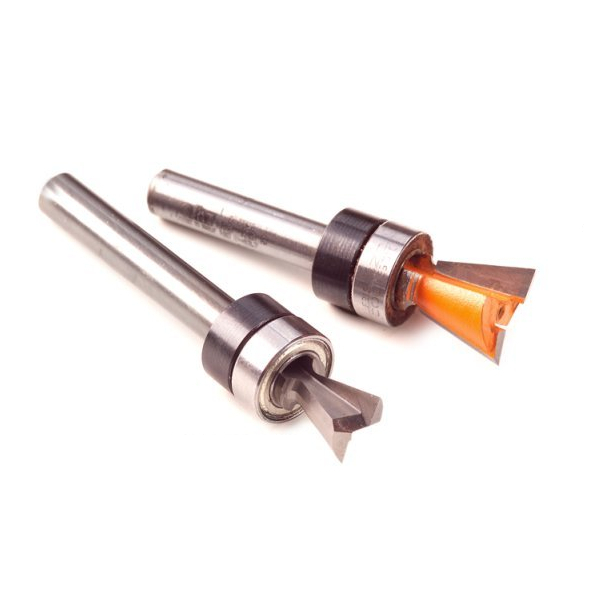

CMT Dovetail cutter + guide bearing on shank 12.7 mm shank 6 mm
Dovetail cutter with guide bearing on shank
Special features
- What do you think when you see a perfectly executed dovetail joint?
- Aren't you amazed by the extraordinary robustness and beauty of this type of joint?
- Don't you then have the desire to start a new project, solely for the pleasure of making it yourself?
- Add the CMT dovetail cutters to your dream and it will become reality.
- Whether you are a professional or an amateur, our cutters can add a new dimension to your work.
- The ideal application for these cutters is sturdy carcasses, stacked cabinets, and built-in drawers.
- They are used to secure shelf supports and even cabinet dividers.
- Our tools can be mounted on any type of router or router and are interchangeable with most insertion systems available on the market.
- Suggestions: Mount the guide ring supplied with the machine onto the router, which must follow the template.
- Run along the screen slots at least twice for each insertion.
- Before removing the piece, ensure that the cut is clean and complete.
- To extend the service life of the dovetail cutter, perform an initial pass with a cutter with straight cutting heads.
- To achieve chamfers with an unusual angle, we recommend using a milling machine or a router equipped with a guide.
Technical data
- Cutter diameter D= 12.7 mm
- Cutter height I= 12.7 mm
- Angle 14°
- L (total length) 52.4 mm
- Bearing to be used 791.010.00
- Shank S=6 mm
