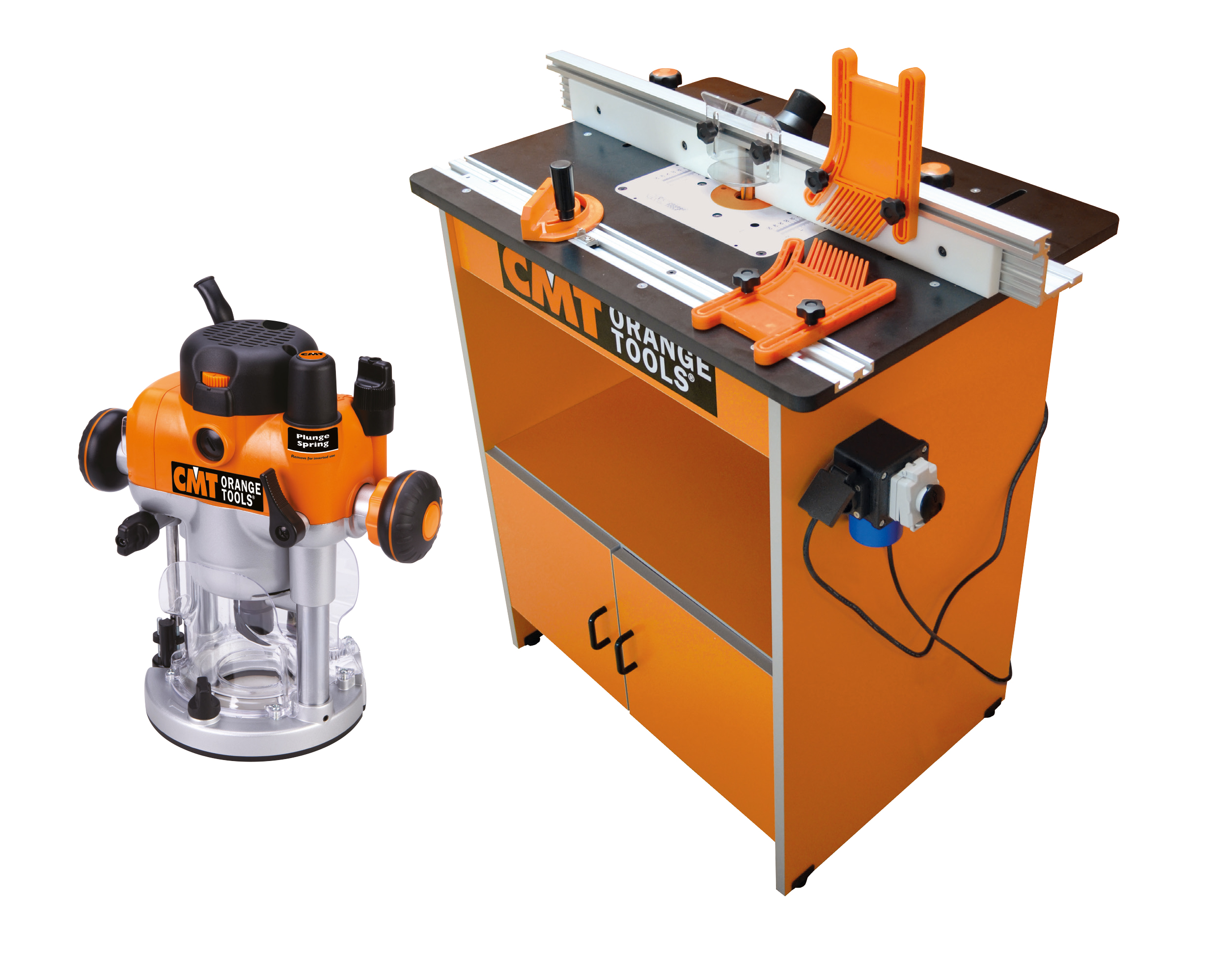

CMT Trade Show Promotion - Multifunctional Router Table + CMT7E Router + Electric Safety Switch
Special Features Router Table
- Finally, a multifunctional router table to which you can attach all brands of routers.
- This has the advantage that you can work with large cutter diameters in complete safety.
- Excl. machine delivered.
- Any brand of router from a premium brand fits on this universal table
Special Features CMT 7 E
- Removable plunge spring for easy height adjustment when using the CMT7E under a router table (from CMT)
- Quick-change carbon brushes for smooth and easy replacement
- Safety switch prevents the possibility of unintentional start-up during a tool change
- Ventilation slots: The side ventilation slots reduce the risk of dust accumulation when used under a router table
- Pre-set depth stop 3 for set routing depths, accurately readable on a scale
- Electronic speed control and soft start; speed infinitely adjustable from 8,000 to 20,000 rpm
- Simple plunge lock and depth Adjustment: With the integrated rotary knob, you set the depth and lock the setting.
- Closed guard ensures maximum protection without obstructing your view of your work.
- Multifunctional guide, ultimate convenience when using the CMT7E handheld and when milling arcs.
- Quick guide mounting: quick-change knobs ensure smooth mounting and dismounting of the guide.
Technical data CMT 7 E
- Power: 2000 watts
- Speed: 8,000 - 20,000 rpm
- Stroke depth: 0-68mm
- Collet diameter: Ø6mm - Ø12.7mm
- Weight: 6 kg
Standard included Router table
- 999.100.11 Electrical safety switch / OPTION
- 999.501.03 Base cabinet
- 999.501.06 Adjustable protective plate in steel / Lexan
- 999.501.07 Universal push button
- 999.501.08 Cross guide marked with degrees
- 999.501.09 Robust and solid work table in phenolic
- 999.501.10 Longitudinal guide in aluminium and PVC + shut-off hose support
- 999.501.11 Universal plates ( 2 ) in aluminium
- 999.502.10 Replaceable Ertelon guide - center piece
- 999.502.34 Milling machine centering mechanism
Standard included CMT7E
- Extended base plate with adjustable rail
- Key for easy cutter change
- Ø8 and ø12mm collets
- Manual.
