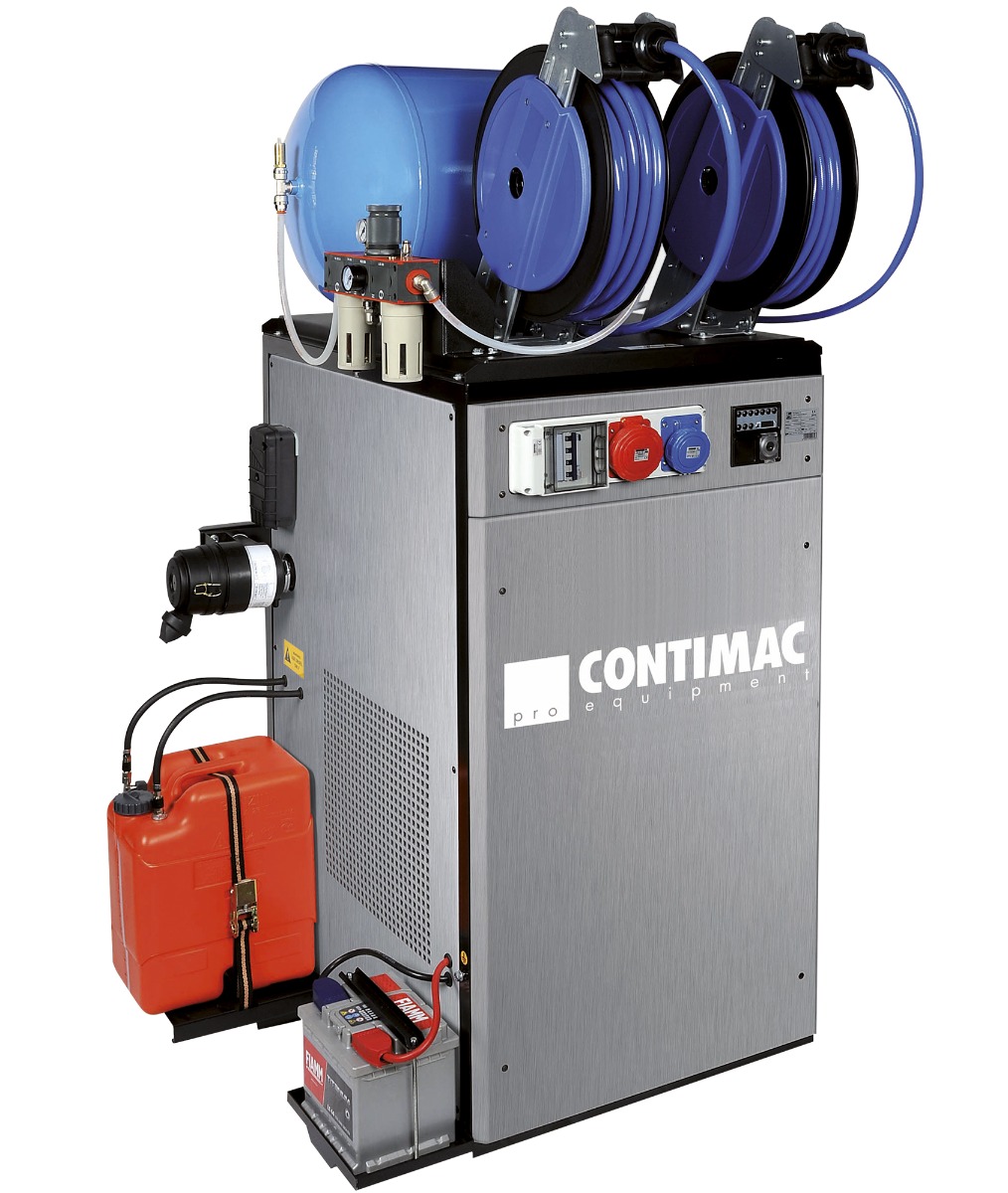

Contimac 25075 Msu 998/200 Compressor/Generator Diesel
Special Features
- Diesel engine driven compressor / generator
- Autonomous power and compressed air on the go!
- This multifunctional service unit is the ideal module for breakdown vehicles on the road.
- Mounted in a low-noise housing equipped with vibration dampers
- Water-cooled diesel engine with electric start on control panel
- Belt-driven 2-stage piston pump AB 988 with a net air output of 600 l/min
- Compressed air tank of 90 liters up to 13 bar
- 1 compressed air reel of 16 meters and 1/2” inner diameter equipped with safety couplings
- 1 compressed air reel of 21 meters and 3/8” inner diameter provided of safety couplings
- Equipped with a pressure regulator with water separator and oil mist lubricator for compressed air tools
- Power supply by generator
- Electrical socket at 400V/50 Hz with a maximum output of 6kVA
- Electrical socket at 230V/50 Hz with a maximum output of 2kVA
- External filter of the diesel engine
- Equipped with an external tank of 22 liters
- Equipped with a battery for electric start
Technical data
- Power supply: diesel engine
- Air input: 800 l/min.
- Max. pressure: 12 bar
- Boiler: 90 l
- Speed: 1090 rpm
- Weight: 378 kg
- Noise level dB(A):76 dB(A)
- Engine power HP:17 HP
- Aftercooler: yes
- 2-stage: yes
- Dimensions: 810x860x1690 mm
Scope of delivery
- Pallet
