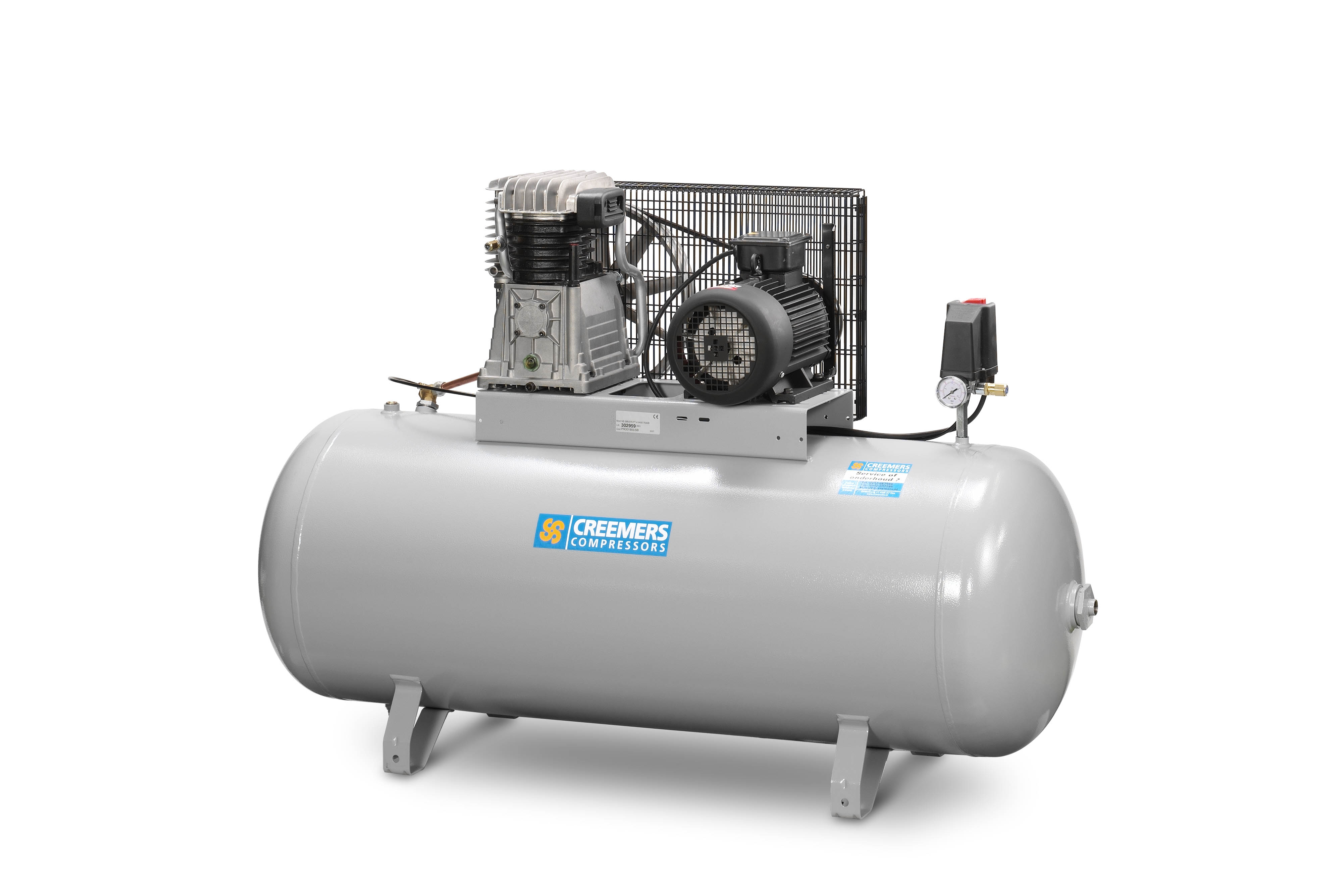

Creemers 6250367830 Economy EC653-270 YD Compressor 400 volt
Know that you are making a good investment. Solid, robustly built Creemers piston compressors
Special features EC653
- Equipped with cast iron cylinder
- Two-cylinder two-stage design, therefore high efficiency and low outlet temperature
- Large fan for optimal cooling
- Fully wired star-delta switch with on/off switch incl. emergency stop switch (for EC 653/270 and larger)
Technical data EC 514
- Capacity l/min: displacement volume 653 l/min effective 450 l/min
- Number of Cylinders: 2
- Rotational speed; 1000 rpm
- Power: 4 KW 5.5 HP
- Boiler capacity: 270 liters
- Max bar pressure: 10 bar
- Dimensions LxWxH: 1500x450x1100
- Weight: 180 kg
- Voltage: 380 volts
- Noise level 77 dB
Standard included
- Orion compatible quick coupling
- Delivery on pallet
