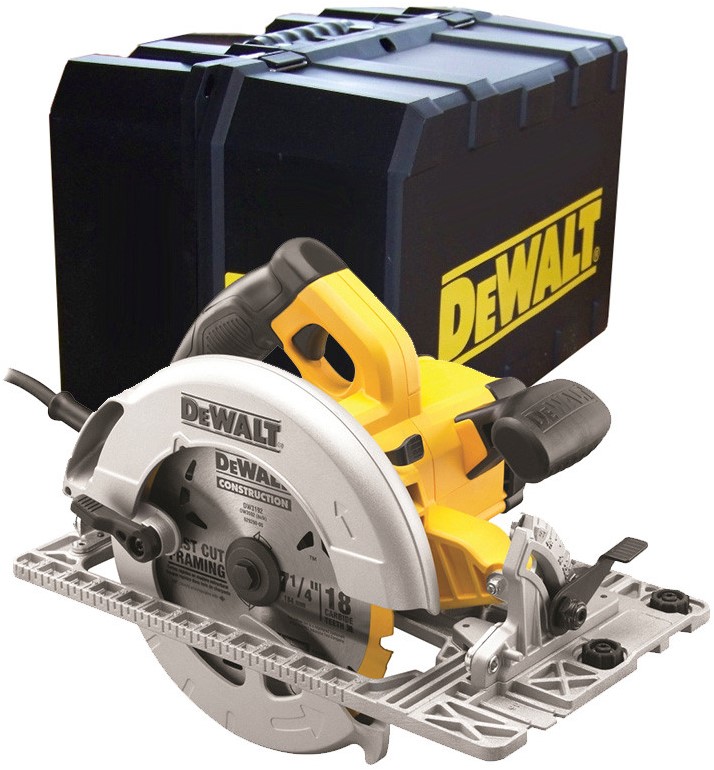

Dewalt DWE576K Circular Saw with 61 mm cutting depth
Special features
- High-torque motor for durability and power when sawing on the construction site or in the workshop
- Fits directly onto the new DEWALT guide rail
- Universal circular saw for rip and cross cuts and for beveling natural and composite woods
- Additional handle for safe two-handed use
- Precise cutting depth adjustment scale up to 61 mm
- Bevel capacity up to 57°
- Optimal balance for safe and effortless work
Technical data
- Power input 1600 Watts
- Power output 1000 Watts
- No-load speed 5200 rpm
- Saw blade diameter 190 mm
- Saw blade arbor hole 30 mm
- Bevel capacity 57 °
- Max. cutting depth 90 ° 61 mm
- Max. cutting depth 90 ° (with guide rail) 57 mm
- Max. cutting depth 45 ° 43 mm
- Max. Sawing depth 45° (with guide rail) 39 mm
- Weight 4.0 kg
- Length 355 mm
- Height 245 mm
- Hand/Arm vibration 2.5 m/s²
- Measurement uncertainty K 1 (Vibration) 1.5 m/s²
- Sound pressure 89 dB(A)
- Measurement uncertainty K 1 (Sound) 3 dB(A)
- Sound power 100 dB(A)
- Measurement uncertainty K 2 (Sound) 3 dB(A)
- Voltage 230V
- Hand/Arm Vibration - Sheet metal sawing m/s²
- Measurement uncertainty K 2 (Vibration) m/s²
Scope of delivery
- 24-tooth HM precision saw blade
- Frame guide
- Wrench
- Sturdy carrying case
- Dust extraction connection
