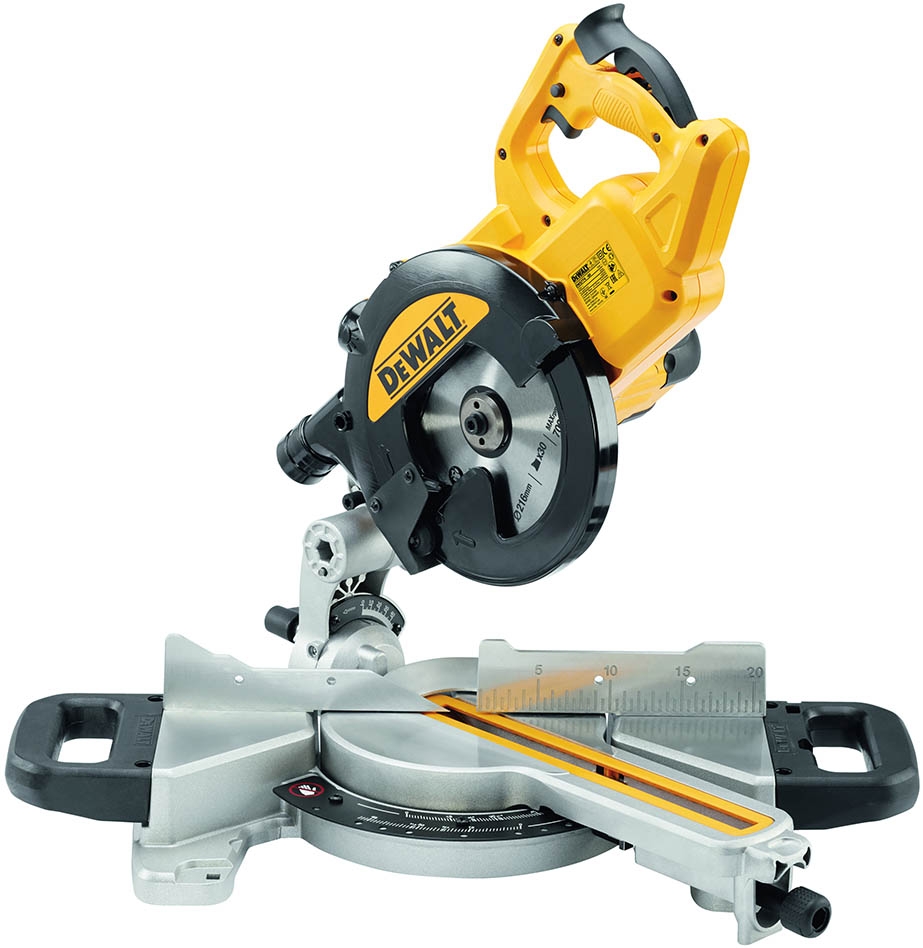

DeWALT DWS774-QS XPS Telescopic chop and miter saw 1400 Watt 216 mm + 5-year dealer warranty!
Order your Dewalt machine now and benefit from the total 5-year warranty on Dewalt Machines(*)
(*) In addition to the Dewalt manufacturer's warranty (3 years after registration with Dewalt), you will receive an extra 2 years of TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.
Special features DWS774
- The classic design of the telescopic miter saw has been further improved and adapted to the requirements of today's user
- New 1400 Watt motor for excellent sawing performance in all materials
- XPS shadow line system ensures an always accurate cutting line by means of a shadow.
- Fine adjustment is not necessary.
- Strong dust extraction with Airlock connection (TNO certified)
- The support table and the stop are machined flat to meet the highest quality requirements for the toughest applications
- The new saw head lock allows the traversing function to be blocked when sawing small workpieces and also for safe transport
- Preset fixed miter angles from 15°, 22.5°, 30°, 45°, 90° with a quick-locking mechanism up to 50°
- Extendable stop section left and right, with scale, for maximum support and control when sawing larger workpieces
- Compact design with internal guide rails for high sawing capacity and easy transport
- Side handles for easy carrying
Technical data
- Power input 1400 Watts
- Power output 1100 Watts
- Voltage V Power supply
- Saw blade speed 4500 rpm
- Saw blade diameter 216 mm
- Saw blade arbor hole 30 mm
- Bevel capacity 48 °
- Cap. at 90°/45°(max. height) 173x62 mm
- Cap. at 90°/45°(max. height) 173x62 mm
- Cap. at 90°/90°(max. height) 250 x 62 mm
- Cap. at 90°/90°(max. width) 250 x 60 mm
- Cap. at 45°/90°(max. height) 177 x 62 mm
- Cap. at 45°/90°(max. width) 177 x 60 mm
- Cap. at 90°/45° (max. width) 270x48 mm
- Max. sawing capacity 45°/45° double miter 190x48 mm
- Weight 12.0 kg
- Depth 550 mm
- Length 490 mm
- Height 590 mm
Standard Included
- TCT 24-tooth saw blade
- Saw blade wrench
- Material clamp
- In box
*Toolnation, as the sole supplier of Dewalt, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system. (Warranty only valid after registration, see terms and conditions).
Dealer warranty:
Toolnation is an official Dewalt dealer and offers you a full warranty in accordance with Dewalt's terms and conditions.
It is important for you as a customer to purchase a product with a full warranty. In practice, it turns out all too often that items are offered at lower prices via unauthorized websites. These are often machines from abroad that are frequently modified. This can result in malfunctions or even fire. Consequently, the manufacturer's warranty on these products is usually not available or is limited to a maximum of 12 months. Therefore, always ensure that you make your purchases from an official brand dealer! At Toolnation, you are assured of this!
