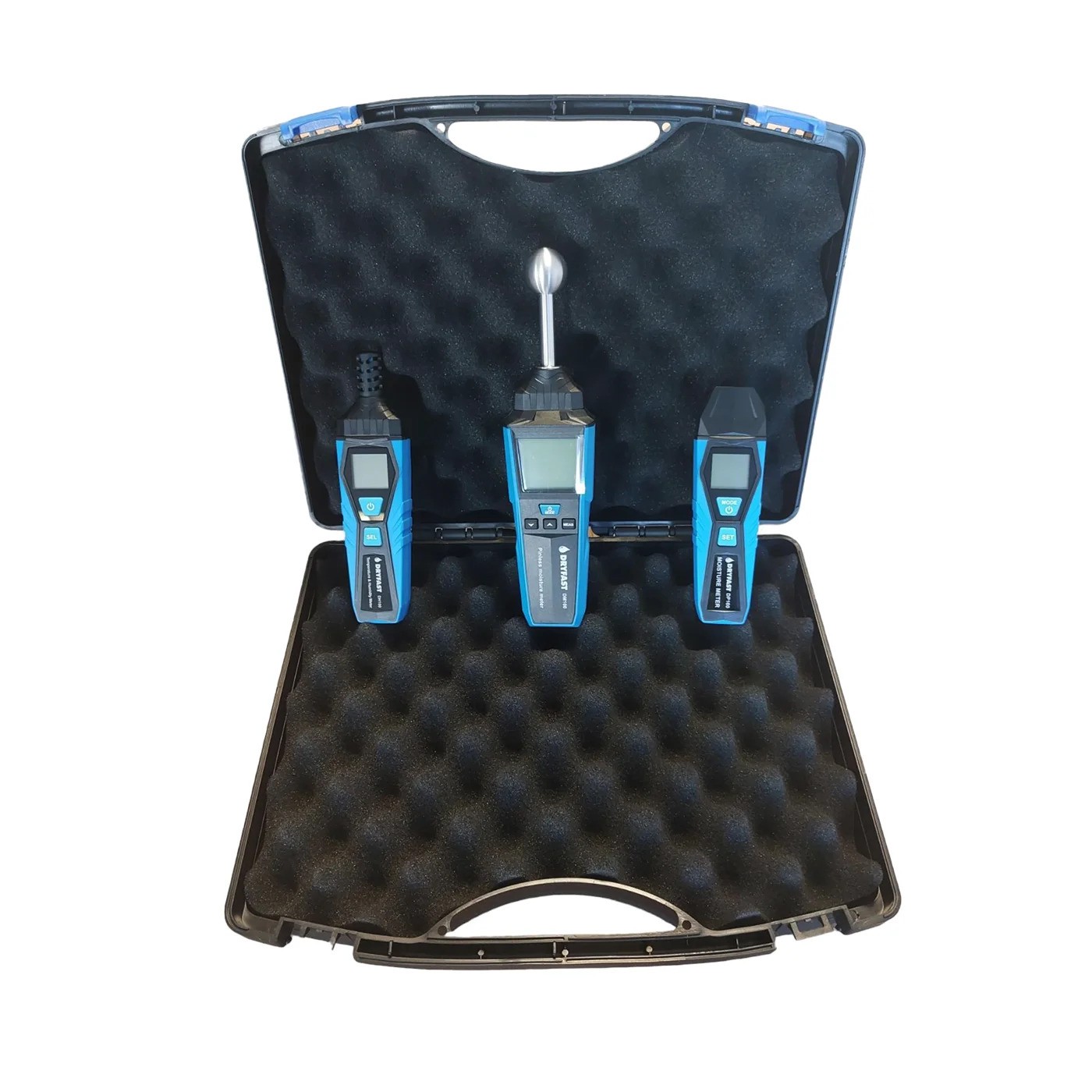

Dryfast Measuring Case D Series - DM100 moisture meter + DH100 thermohygrometer + DP100 puncture meter
Features DM100
- The moisture meter primarily measures moisture content via a non-destructive humidity sensor.
- The maximum penetration depth is approximately 20-40 mm, which is suitable for measuring concrete, wood, flooring, walls, and other building materials.
Technical data DM100
- Measuring range 0-100 digits
- Measured depth 20-40 mm
- Risk limit range 0-50 digits
- WET limit range 51-100 digits
- Automatic shutdown 30 minutes
- Display LCD
- Battery 1.5 V x 3 AAA
- Operating current 18 mA
- Operating temperature 0-40 °C
- Operating humidity 0 % – 70 % RH
- Storage temperature -10 – + 50 °C (5% – 95% RH)
- Dimensions L x W x H 235 x 53 x 34 mm
- Weight 160 g (without batteries)
Special features DH100
- Thanks to its simple operation and precise measurement technology, the hygrometer quickly provides precise measurements of temperature, relative humidity, and ambient air.
- The digital thermometer and humidity meter is suitable for climate measurements in, among others, homes, offices, production areas, warehouses, the agriculture, etc.
Technical data DH100
- Power supply 1.5V x 2AAA
- Temperature measuring range -20 ~ 60°C / ± 1.0°C
- Wet bulb temperature -20°C ~ 60°C
- Humidity measuring range 0-99% RH / 5% RH
- Resolution 0.1% RH / 0.1°C /
- Test speed 1 second
- Display LCD
- Dimensions L x W x H 168 mm x 43 mm x 25 mm
- Weight 70 g
Special features DP100
- Professional moisture meter for determining the moisture content of wood or of soft building materials.
- The measurement data can serve as a basis to determine whether further drying is necessary.
- To get a complete picture of the situation, this moisture meter also displays the ambient temperature and relative humidity.
Technical data DP100
- Measuring range Wood: 3.7-82%
- Building material: 0.1-80%
- Ambient temperature: -10~60°C
- Relative humidity: 0-100%
- Electrode length 10 mm
- Error 1-75% ± 5%
- Ambient temperature 0-45°C ± 1% -10~0°C — 45-60°C/±1.5%
- Ambient humidity 20~80%/±4.0% RH 0~20% — 80~100%/ ±5.0% RH
- Measurement speed 0.5 seconds
- Storage temperature -10~60°C
- Operating environment temperature 0-40°C RH environment 0-85%
- RH Automatic shutdown ± 15 sec
- Power supply 2 x 1.5V 3AAA batteries
- Dimensions L x W x H 147 m x 42 mm x 25 mm (incl. protective cap)
- Weight 90 g (incl. batteries and protective cap)
Scope of delivery
- DM100 Digital moisture meter
- DH100 Thermohygrometer
- DP100 Licence meter
- In case
