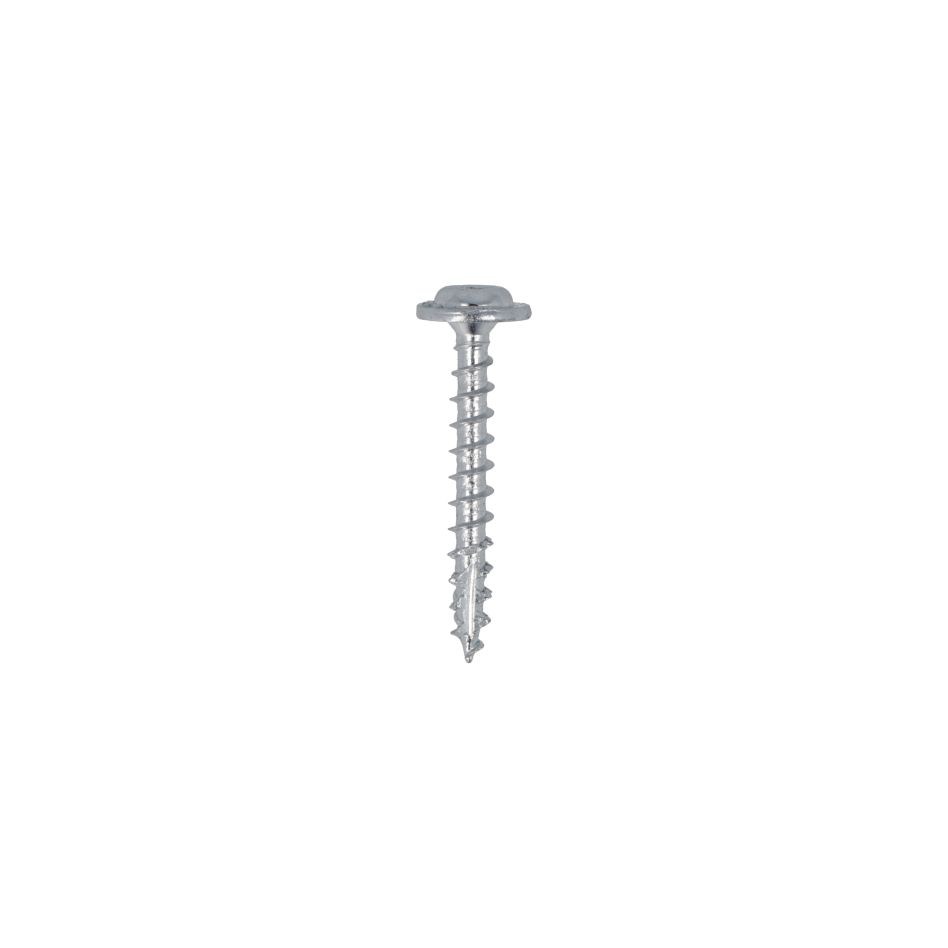

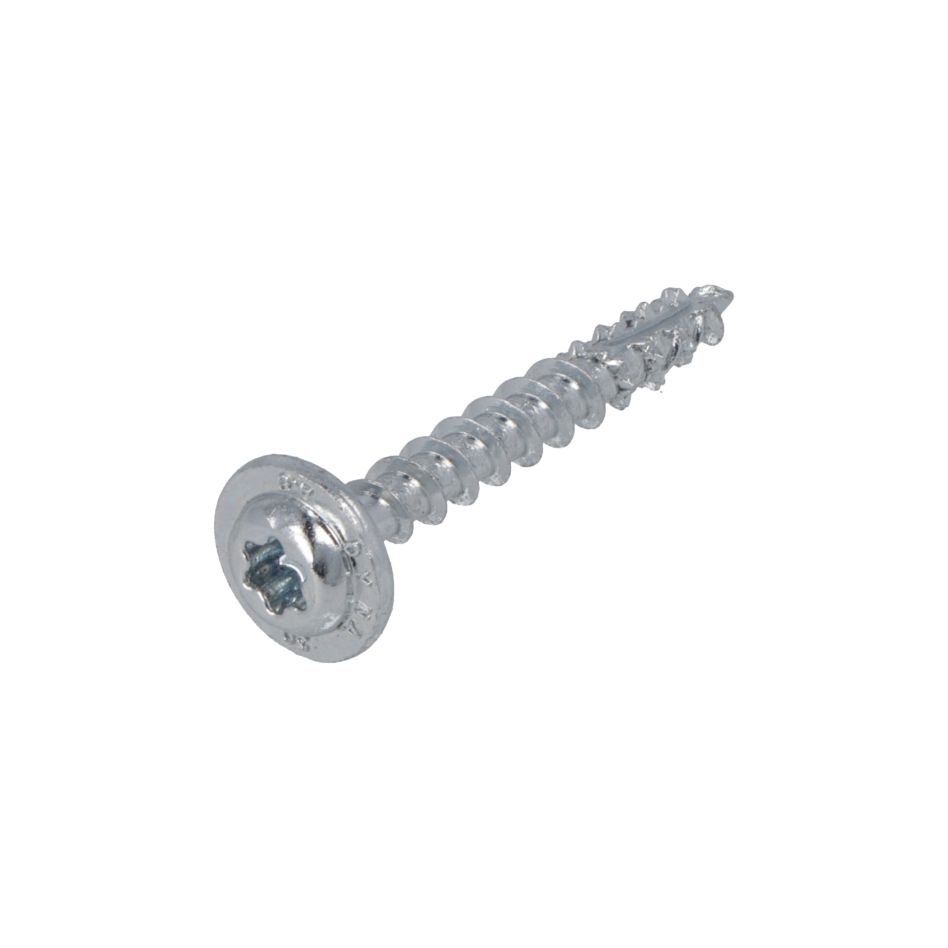

Dynaplus 0286.01.25201 Wood construction screw VZ TK +Cutting point TX-20 4.0 x 30 mm - 200 pieces
Special features
- Dynaplus® wood construction screws are developed for connecting wooden beams and load-bearing timber structures
- Thanks to the large TX drive, you have optimal power transmission from the (impact) screwdriver to the screw, allowing you to easily work with these screws
- Due to the special drill point with cross-sections and a cutting point, you can often work with them without pre-drilling
- The wood construction screw is a perfect alternative to the 'old-fashioned' wood screw
- Wood construction screws are many times stronger and have a much higher pull-out value
- Due to the countersunk head on the screws, they have a large bearing surface and clamping range; consequently, the screws are heavier to withstand loads and fewer fastening points are needed for a sturdy timber construction
- From 80 mm onwards, the screws feature a partial thread with a so-called ‘spiral’ that enhances the tightening effect in wood-to-wood connections
- The ‘spiral’ pre-drills the screw hole slightly larger, allowing the second piece of wood to be pulled tighter and minimizing the risk of splitting
- The screws are made of hardened carbon steel and are super strong
- An additional annealing treatment during the production process eliminates the risk of hydrogen embrittlement in the material
- For creating safe building structures
- Thanks to the large clamping range of the countersunk head, you can also use these screws for mounting soft sheet materials such as insulation material or wood wool cement boards
Technical data
- Diameter: 4 mm
- Length: 30 mm
- Drive: TX-20
- Drill point type: Cutting point type-17|Cross-sections|Serrated thread
- Thread type: Full thread
- Head model: Countersunk head
- Head diameter: 10 mm
- CE Standard: 14592
- Material: Carbon steel
- Surface treatment: Electro-galvanized
- Surface treatment color: Blue
- Lubricant: Gleitmo
- Packaging type: Box
- Package contents quantity: 200 piece(s)
