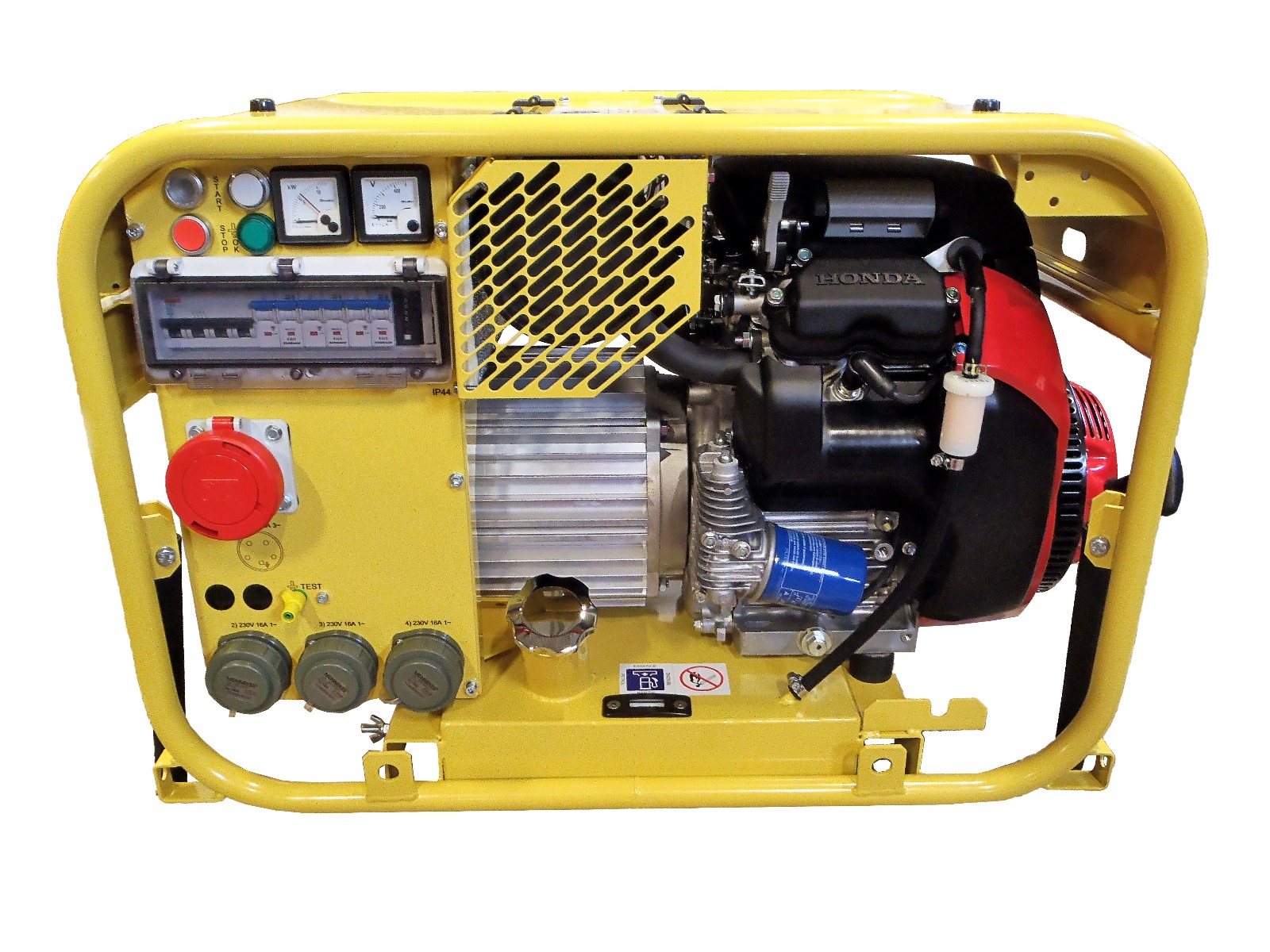

Europower EPDIN9000TE Generator 9KVA
The Europower EPDIN9000TE is a generator with a Honda air-cooled petrol engine for fire departments, airports, and emergency services
Features
- 1 socket CEE 400V - 16A 5 p. IP67 + 3 Schuko sockets (DIN49442) 230V - 16A 3 pins
IP68 - 4 lifting brackets
- Earth tester with indicator light
- Automatic voltage regulator
- Transport tie-down eyes
- Electric start, incl. battery (battery acid not included)
- Frame
- Tool box with spare parts
- Mechanical fuel level gauge
- Oil level protection
- Thermo-magnetic protection
- Hour meter
- Control panel lighting
- Power meter with maximum indication
- Voltmeter
Technical data generator
- KVA max 9
- KVA continuous 8
- KVA 7.8kVA @ 1~230V 8kVA @ 3~400V
- Amperes (continuous): 34A @ 1~230V 11.5A @ 3~400V
- Weight incl. oil (+ coolant if
water-cooled), excl. fuel: 141kg
Weight incl. oil (+ coolant if
water-cooled) + fuel: 149kg
Technical data engine
- Make/Type: Honda GX630 RH-VEP4
- max. hp: 19
- Power: 14kW max. (3000rpm), 2-cylinder
Petrol, Air-cooled - Cylinder capacity: 688cm3
- Consumption @75% load: 3.8 liters/hour
- Tank: 10 liters
- Range @75% load: 2.6 hours
- Noise level: 74dB(A)@7m (*)
- EU Emission standard: Stage V
- Battery voltage: 12V
Technical data alternator
- Brand/Type Soga SSG132MB2-R - brushless
- Nominal voltage: 3~400V and 1~230V
- Frequency: 50Hz
- Protection class: IP54
Standard included
- Manual
Comment
