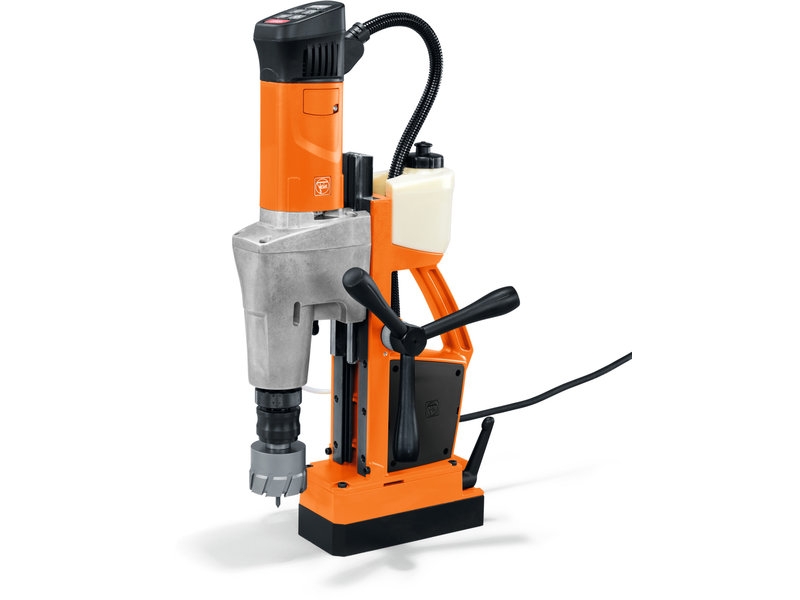

Fein Core Drilling Unit 65mm KBM 65 U + 5-year dealer warranty
Order your Fein machine now and benefit from the total 5-year warranty on Fein Machines(*)
(*) In addition to the Fein manufacturer's warranty (3 years after registration with Fein), you will receive an extra 2 years of TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.
Special features
- With stable speed, even in heavy-duty applications.
- Fine adjustment of the drill spindle for comfortable machine alignment.
- Double drill motor guide for using the largest drilling tools.
- Right/left rotation.
- Electronic speed setting.
- MK3 interface.
- High magnetic force.
- Comfortable magnetic force indication.
- Integrated coolant tank.
- * Optionally with accessories.
Technical data
- HM Core drill max. Ø 65 mm
- HSS core drill max. Ø 45 mm
- Core drilling drilling depth max. 50(75*) mm
- Spiral drill max. Ø 25 mm
- Tapping M 20
- Countering max. Ø 50 mm
- Reaming max. Ø 25 mm
- Nom. input power 1 300 W
- Dep. Power 730 W
- 1st gear 120-240 1/min
- 2nd gear 260-520 1/min
- QuickIN core chuck (3/4 inch Weldon:AU,CA,US,UK)
- MK 3 tool holder
- Stroke 145 mm
- Tot. stroke range 315 mm
- Adjustment range drill stand ± 6 mm
- Swivel range drill stand ± 7°
- Magnetic holding force 14,000 N
- Magnetic base dimensions 205 x 9 mm
- Cable with plug 4 m
- Weight according to EPTA 16.1 kg
- 230V X
Scope of delivery
- 1 Case
- 1 Coolant reservoir
- 1 Lashing strap
- 1 Chip hook
- 1 Centering pins
- 1 Ejection wedge
- 1 Contact protection
*Toolnation, as the sole supplier of Fein, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system. (Warranty only valid after registration, see conditions in this link)
Dealer warranty
Toolnation is an official Fein dealer and offers you a full warranty in accordance with Fein's terms and conditions.
It is important for you as a customer to purchase a product with a full warranty. In practice, it turns out all too often that items are offered at lower prices via unauthorized websites. These are often machines from abroad that are frequently modified. This can result in malfunctions or even fire. Consequently, the manufacturer's warranty on these products is usually not available or is limited to a maximum of 12 months. Therefore, always ensure that you make your purchases from an official brand dealer! At Toolnation, you are assured of this!
