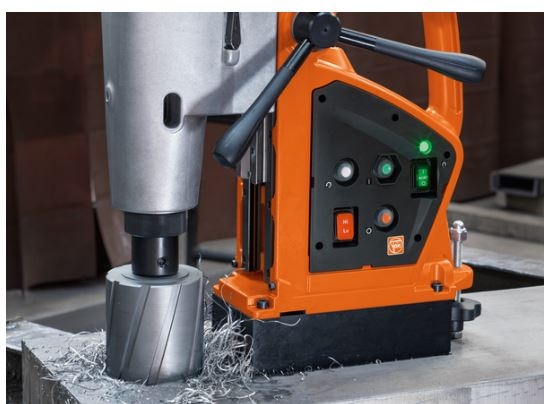

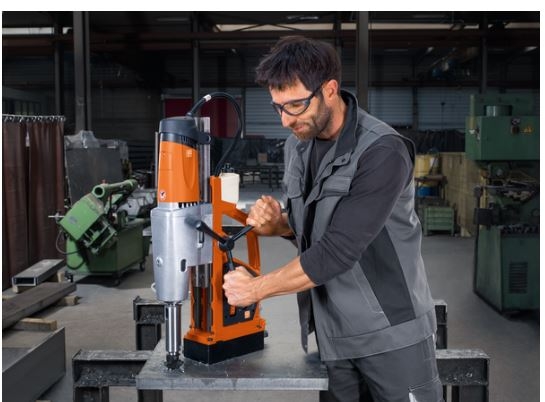

Fein Universal Magnetic Core Drill 110 mm KBU 110-4 M + 5-year dealer warranty
Order your Fein machine now and benefit from the total 5-year warranty on Fein Machines(*)
(*) In addition to the Fein manufacturer's warranty (3 years after registration with Fein), you will receive an extra 2 years of TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.
Special features
- Right/left rotating Universal magnetic core drill with 4 gears, high power and powerful impact
- MK4 tool holder and the highest functionality for the toughest drilling jobs in the workshop.
- FEIN 1700 W high-power motor with high torque for heavy-duty drilling work.
- For heavy-duty use thanks to the highest quality finish and swivel-mounted motor cable protection hose.
- Machine with an extra-large impact range for all drilling tasks such as core and twist drilling, thread tapping, countersinking, and reaming.
- Mechanical gearbox with 4 gears.
- High magnetic force.
- Torque support for high stability.
- Tilt sensor.
- Torque slip clutch.
- Comfortable magnetic force indication.
- Speed reduction.
- Reverse/forward rotation.
- MK4 tool holder.
- Integrated coolant tank.
- Personal safety switch.
Technical data
- Nominal power consumption 1,700 W
- Exhaust power 850 W
- Loaded speed 1st gear 60 / 120 1/min
- Loaded speed 2nd gear 90 / 170 1/min
- Loaded speed 3rd gear 150 / 300 1/min
- Loaded speed 4th gear 230 / 430 1/min
- No-loaded speed 1st gear 100 / 190 1/min
- No-loaded speed 2nd gear 160 / 290 1/min
- No-loaded speed 3rd gear 270 / 500 1/min
- No-loaded speed 4th gear 420 / 750 1/min
- Tool holder MK 4
- HM Core drill max. Ø 110 mm
- HSS core drill max. Ø 80 mm
- Core drilling drilling depth max. 100 mm
- Spiral drill max. Ø 40 mm
- Tapping M 36
- Countering max. Ø 60 mm
- Reaming max. Ø 36 mm
- Core drill chuck Weldon 32
- Stroke 280 mm
- Tot. stroke range 400 mm
- Magnetic holding force 23,000 N
- Magnetic base dimensions 240 x 120 mm
- Cable with plug 4 m
- Weight according to EPTA 39.00 kg
- Voltage 230V
- Sound pressure level LpA 84.0 dB Measurement uncertainty of the measured value KpA 3 dB
- Sound power level LWA 95.0 dB Measurement uncertainty of the measured value KWA 3 dB
- Sound peak value LpCpeak 98.7 dB Measurement uncertainty of the measured value KpCpeak 3 dB
- Vibration value 1 αhv 3-way αh,D <1.4 m/s² Measurement uncertainty of the measured value Kα 1.5 m/s²

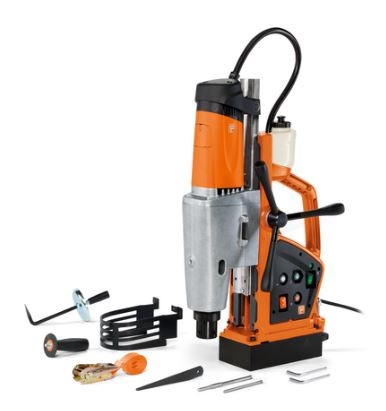

Scope of delivery
- 1 Coolant reservoir
- 1 Ratchet strap
- 1 Chip hook
- 2 Centering pins Ø 6.35 x 125 mm and Ø 7.98 x 184 mm
- 1 Contact protection
- 1 Ejection wedge
- 2 Allen keys 5 and 6 mm
- 1 Extra handle
- 1 Case
