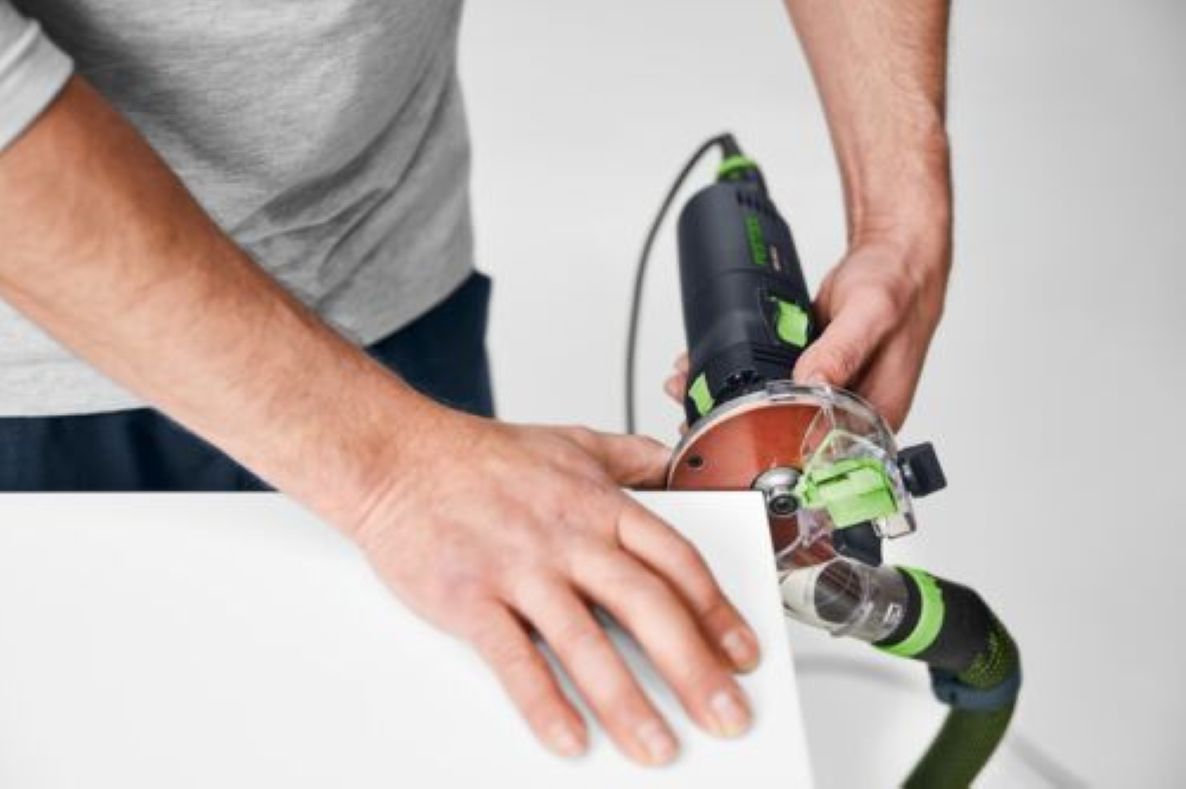

Festool 578716 OFK 500 Q-Plus R3 Edge Router
Chamfering, rounding, profiling, and grooving – evenly, cleanly, and splinter-free with the OFK 500 edge router. Weighing only 1.4 kg, it is particularly easy to handle thanks to an ideal center of gravity, even for vertical and horizontal use. A special feature of the device is the routing system: all edge router bits share the same outer diameter. This limits the router's table opening to a minimum, preventing tilting when routing in difficult angles.
Special features
- Adjustment: Easy and 1/10 mm precise adjustment of the routing depth
- No incorrect routing movements: perfect alignment of all OFK 500 bits (R1 - 6, chamfering, facing) for the pad bore
- Pedal: prevents damage to the workpiece. Super gliding behavior and scratch resistance
- Precision: Excellent runout accuracy thanks to stable connection between cutter and drive
- Tiller change: Easy and quick thanks to the spindle stop
- Handy: Slim design, low weight, and optimal center of gravity
- Freedom of movement: The spring plate of the ball bearing brake provides greater freedom of movement when working without extraction
- Versatile support: The transparent extraction hood with built-in ball bearing brake extracts, brakes, and extracts
Technical data
- Power input: 450 W
- No-load speed: 28,000 min⁻¹
- Max. milling cutter diameter: 28.00 mm
- Milling cutter hub (fine adjustment): 10.00 mm
- Dust extraction connection Ø: 27 mm
- Cable length: 4.00 m
- Product weight without accessories: 1.40 kg
- Transport weight with accessories: 4.1 kg
- Drive type: Mains power
Scope of delivery
- Rounding cutter HW R3-OFK 500 Z1
- Starter ball bearing KLS-D 15,8-OFK
- Extraction hood with ball bearing brake
- Spring plate ball bearing brake
- Plug it cable (4 m)
- Systainer SYS3 M 187
