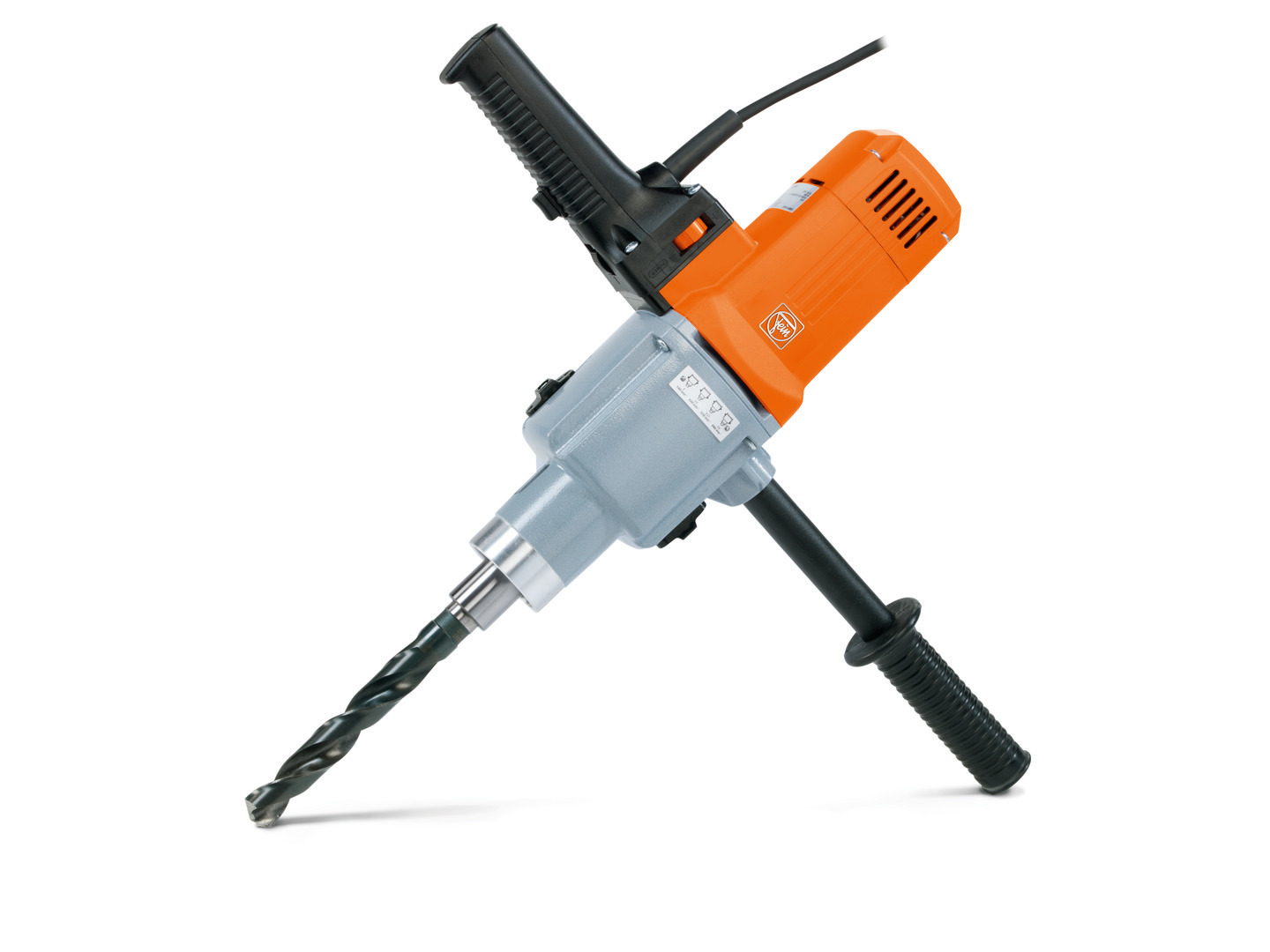

Fein 72025160000 BOZ 32-4 M Hand Drill up to 32 mm, with 4 speeds
Special features
- FEIN 1 800 W high-power motor with 4-speed mechanical gearbox for high torque during heavy drilling operations.
- Reverse/right-rotating machine with electronic speed reduction for all drilling operations such as twist drilling, thread tapping, countersinking, and reaming.
- Extremely durable construction for heavy-duty use thanks to the highest quality materials and workmanship.
- MK3 tool holder.
- Electronic torque cut-off.
- Speed-controlled tacho-electronics.
- Extremely durable.
- Metal drive head.
- Double handle.
- Ideal for use on FEIN magnetic drill stands.
- Extensive range of accessories.
- ** Torque slip clutch.
Technical data
- Nominal power consumption: 1,800 W
- Current output power: 1 100 W
- Loaded speed: 1/min
- Loaded speed 1st gear: 60 - 140 1/min
- Loaded speed 2nd gear: 95 - 220 1/min
- Loaded speed 3rd gear: 135 - 310 1/min
- Loaded speed 4th gear: 210 - 480 1/min
- No-loaded speed: 1/min
- Torque at max. output power: 75 / 48 / 34 / 22 Nm
- No-loaded speed 1st gear: 60 - 140 1/min
- No-loaded speed 2nd gear: 95 - 220 1/min
- No-load speed 3rd gear: 135 - 310 1/min
- No-load speed 4th gear: 210 - 480 1/min
- Torque: 75 / 48 / 34 / 22 ** Nm
- Tool holder: MK 3
- Drill Ø steel: 32 mm
- Drill Ø stainless steel: 20 mm
- Drill Ø light metal: 60 mm
- Drill Ø wood: 70 mm
- Tapping: M 24
- Countersinking max. Ø: 50 mm
- Reaming max. Ø: 30 mm
- Clamping collar- Ø: 65 mm
- Corner size: 38 mm
- Cable with plug: 3.1 m
- Weight according to EPTA: 7.50 kg
Scope of delivery
- Handle
- Expulsion wedge
- In box
