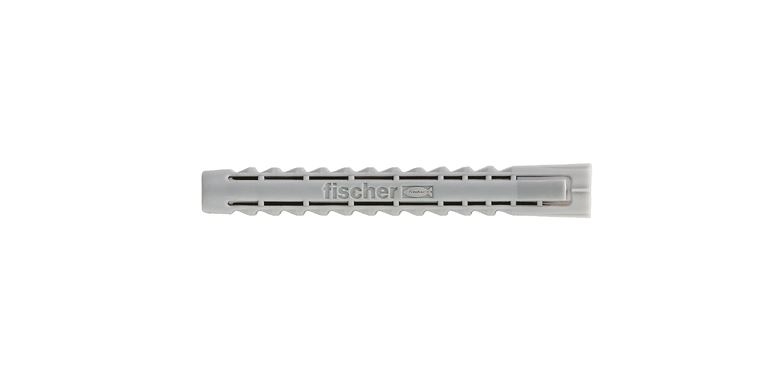

Fischer 24827 Plug SX 6 x 50 long version 100 pieces
Thanks to the quadruple expansion, the Fischer Plug SX optimally conducts forces into the building material. In addition to the typical expansion, the high-quality nylon used in production also guarantees a reliable and long-lasting fastening. This variant with a greater anchoring depth is ideal for fastenings in perforated building materials, in aerated concrete, and for bridging plaster layers.
Advantages
- The 4-way expansion ensures optimal force transmission to the building material and offers high fastening values in solid and perforated building materials
- The expansion-pressure-free neck of the plug prevents expansion forces from being exerted on the surface of the building material when screwing in the screw. This prevents damage to tiles and plaster.
- The distinct rim of the plug prevents it from slipping deeper into the drill hole and allows for easy installation.
- Due to the greater anchoring depth, the plug is particularly well-suited for fastenings in perforated building materials, aerated concrete, and bridging plaster layers.
Applications
- Concrete
- Perforated brick
- Hollow lightweight concrete block
- Brick and concrete floors
- Perforated sand-lime brick
- Solid sand-lime brick
- High-density natural stone
- Aerated concrete
- Gypsum blocks
- Solid lightweight concrete brick
- Solid brick
Building materials
- The rimless SX is suitable for the Through-hole mounting
- When screwing in the screw, the SX expands in four directions and is thereby securely anchored in the material

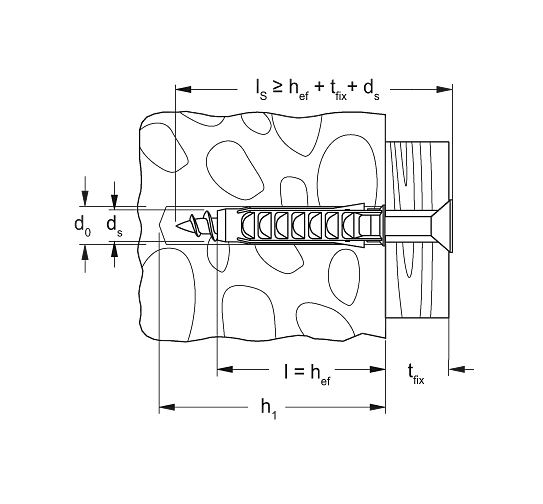

- The required screw length is determined as follows: length of the plug + thickness of the mounting piece + 1 x the diameter of the screw
- Suitable for Fischer ASL wood, chipboard, and spacer screws.
Technical data
- Drill hole diameter: 6 mm
- Min. drill hole depth: 60 mm
- Plug length: 50 mm
- Chipboard screw: 4 - 5 mm
- Content: 100
