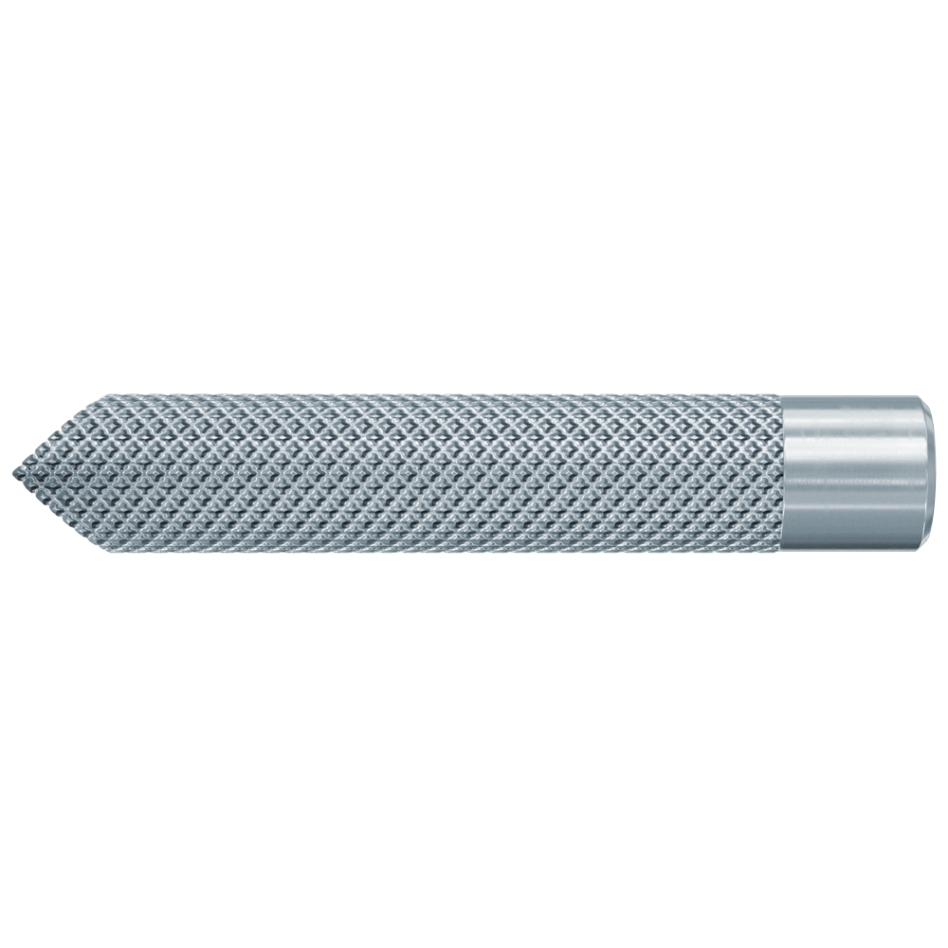

Fischer 48222 Internal Thread Anchor RG 10 x 75 M 6 I electro-galvanized steel 10 pieces
The internal thread impact anchor fastening system for fastenings in cracked and uncracked concrete. The fischer RG MI internal thread impact anchor is manufactured from galvanized steel. The internal thread impact anchor is a system accessory for the fischer mortar cartridges or injection mortar. For individual fastenings, the use of the pre-portioned mortar cartridges is particularly efficient. When installing with the mortar cartridge, the RG MI is installed using a rotary hammer with a rotating tapping motion. During installation, the mortar cartridge is broken, mixed, and the mortar mass is activated. When installing with the injection mortar, the internal thread impact anchor is manually pushed into the drill hole using slight rotating movements. The various mortars adhere the RG MI to the wall of the drill hole over the entire surface. The impact anchor with internal thread can be disassembled flush with the surface and is particularly suitable as a temporary fastening, for example of machines, in interior construction.
Advantages
- The RG MI anchor with internal thread is suitable for use in combination with glass capsules or injection mortar in concrete.
- The RG MI anchor with internal thread enables disassembly and reuse of the fastening point flush with the surface. This therefore offers optimal flexibility.
- The metric internal thread allows the use of standard metric screws or threaded rods for ideal adaptation to the application.
- Please take into account the approvals of the relevant glass capsules or injection mortar.
Characteristic properties
- Disassembly flush with the surface allows the fastening point to be reused.
- Standard metric bolts and threaded rods can be used. This reduces costs and complexity.
- In combination with the various mortar cartridges or injection mortars approved for anchoring in cracked and uncracked concrete.
Application

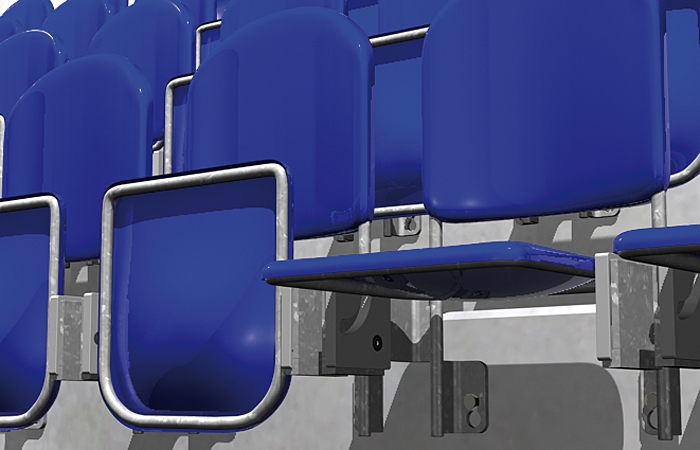

- Temporary and removable fastenings
- Anchors with Glass Capsules RSB and RM II (without approval)
- Anchors with Injection Mortars FIS SB, FIS EM and FIS V in concrete (without approval)
Building materials
- Concrete, cracked and uncracked
Installation
- When used in combination with glass capsules: the RG MI impact anchor with internal thread is inserted using a rotary hammer and the corresponding mounting tool with a twisting and tapping motion.
- During installation, the capsule is driven by the chamfered side of the impact anchor with internal thread Thread broken, mixed, and the mortar activated.
- When used in combination with injection mortars: the RG MI is applied by hand while pressing it with a slight rotation to the bottom of the borehole.
- The mortar bonds the impact anchor with its entire surface against the wall of the borehole, thus sealing the hole.
Technical data
- Borehole diameter d0 12 [mm]
- Metric thread AM 6
- Effective anchoring depth hef 75 [mm]
- Max. screw-in depth lE,max 16 [mm]
Standard included
- 10 pieces
