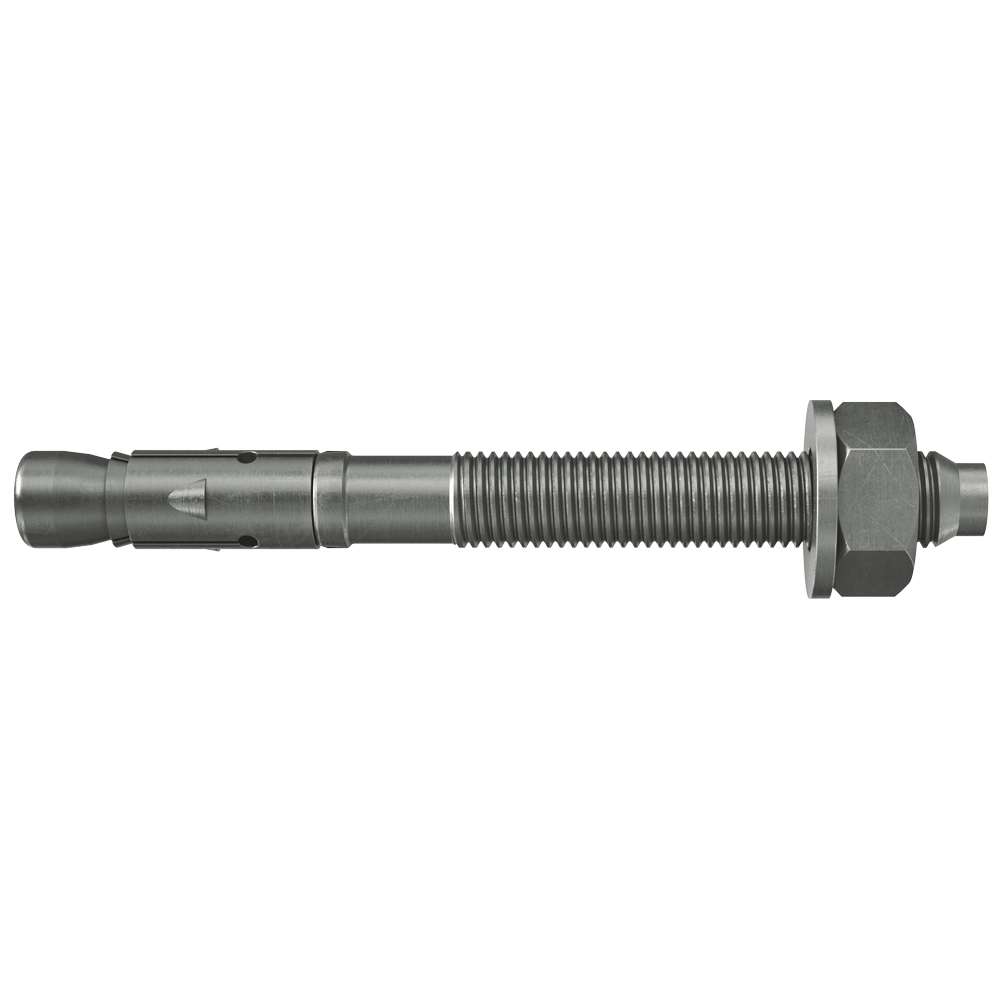

Fischer Through Anchor FAZ II 10/70 stainless steel A4501410
Special features
- The stainless steel bolt anchor for the most demanding requirements in concrete
- Strong and flexible
- One anchor – two anchoring depths: A reduced anchoring depth saves time and costs during drilling
- Strong fastening: The expansion clip guarantees the highest load-bearing capacity
- Fewer fastening points and smaller anchor plates save time and costs
- Easy installation: fewer hammer blows and minimal tightening slip
- That saves time and force
- Stainless steel: maximum safety for outdoor use
- Highly suitable for thick mounting pieces
- According to the new rating (ETA), the tensile strength is significantly increased
- This reduces the number of anchors required
- The variable anchoring depths for sizes M8 to M16 enable millimeter-accurate adjustment to loads for the first time
- The version with a cap nut offers an aesthetically pleasing anchoring and, thanks to its round shape, also protects against injury
- The first M6 through-anchor with an ETA rating option 1, for safe and approved anchorings
- International approvals guarantee optimal safety and the best performance.
Technical data
- Approval: Relevant
- ICC approval: Relevant
- Seismic approval: C1 / C2
- Borehole diameter: 10 mm
- Min. borehole depth for through-anchor mounting: 145 mm
- Plug length: 155 mm
- Max. usable length Lifting position/lifting red: 70/90 mm
- Thread: M 10 x 113 mm
- Wrench size: 17 mm
Construction materials
- Concrete C20/25 to C50/60, cracked and uncracked
- Concrete C12/15
- Concrete C80/95 (classification available)
Scope of delivery
- Pieces per pack: 20
