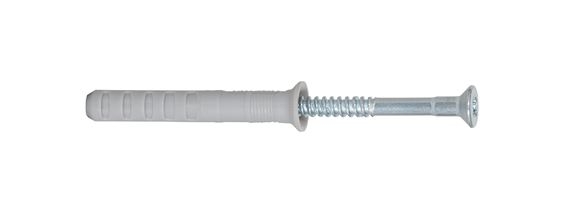

Fischer 50354 Nail Plug N 6 x 40/10 S with countersunk head 50 pieces
The fischer Nail Plug NS with countersunk head consists of a plug made of high-quality nylon and a galvanized nail screw. These are already pre-assembled for quick installation. The nail plug is fed through the mounting piece using the time-saving through-hole installation method. When the nail screw is driven in, the sleeve expands and anchors in the material. The fischer NS nail plug with countersunk head is ideal for fastening timber structures in various building materials in interior construction.
Special features
- Fast impact mounting saves time: ideal for series assembly.
- Simple and secure mounting.
- The integrated impact locking prevents the plug from spreading prematurely.
- The nail screw with Phillips head can be removed afterwards.
- With countersunk head.
Advantages
- Fast through-hole mounting reduces labor effort and enables efficient series assembly.
- The integrated impact locking prevents the plug from spreading prematurely (jamming) and ensures trouble-free mounting.
- The thread of the nail screw, in combination with the Phillips head, allows the screw to be unscrewed and thus removed. The wide range of diameters and usable lengths offers the right one for every fastening. plug.
Applications
- Wooden substructures, Wall connections or plaster profiles, Cable and pipe clamps, Punched tapes
- Building materials Concrete, Solid sand-lime brick, Solid brick, Natural stone, Solid lightweight concrete brick, Cellular concrete, Gypsum blocks, Perforated brick, Perforated sand-lime brick, Hollow lightweight concrete building block
Installation
- The Nail Plug N is suitable for through-hole mounting.
- After being driven in with a hammer, the nail screw ensures that the plug expands in two directions, thereby providing a firm anchoring in the building material.
- Countersunk screws are recommended for mounting wood structures; Use collarless plugs for metal structures and collared plugs for slotted holes.
Technical data
- Drill diameter: 6 mm
- Effective anchoring depth: 30 mm
- Plug length: 40 mm
- Minimum bore depth for through-hole mounting: 55 mm
- Maximum thickness of attached part: 10 mm
- Spin: PZ2
- Quantity: 50 pieces
