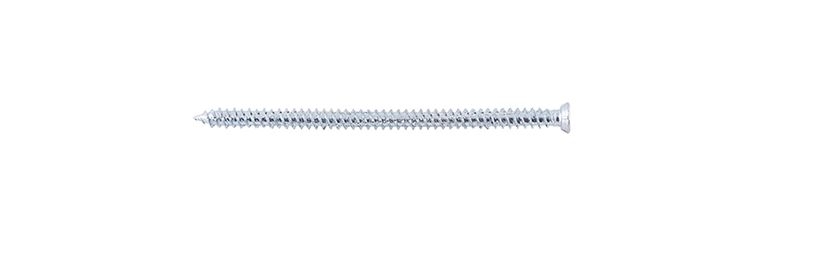

Fischer 532934 Frame Screw FFS 7.5 x 122 T30 with Flat Head 100 pieces
The efficient special flat-head screw for frame mounting.
Special features
- The fischer FFS flat-head frame screw is a special screw for the efficient mounting of window frames.
- The screw can be screwed directly into solid or porous building material after drilling.
- The continuous special thread prevents the frame from being pulled against the substrate.
- This ensures a tension-free fastening for a long service life.
Advantages
- Screw mounting without the use of plugs, for efficient installation.
- The small drilling hole diameter of 6 mm enables efficient serial assembly.
- Thanks to the continuous thread, a pull- and tension-free fastening of the frame to the substrate possible.
- The high/low thread of the screw tip as well as the extra milling ribs reduce the screwing torque and thus ensure force-saving installation.
- According to ift Rosenheim, particularly suitable for fastening uPVC frames in brick masonry.
Characteristic properties
- Cost-effective screw mounting without a plug.
- For all types of solid building materials and aerated concrete.
- Fast series installation due to the small diameter of 6 mm of the drill hole.
- Tension-free fastening with a long service life of the frame.
- Continuous thread prevents the frame from tightening.
- Force-saving installation: The special thread reduces screwing forces.
Applications

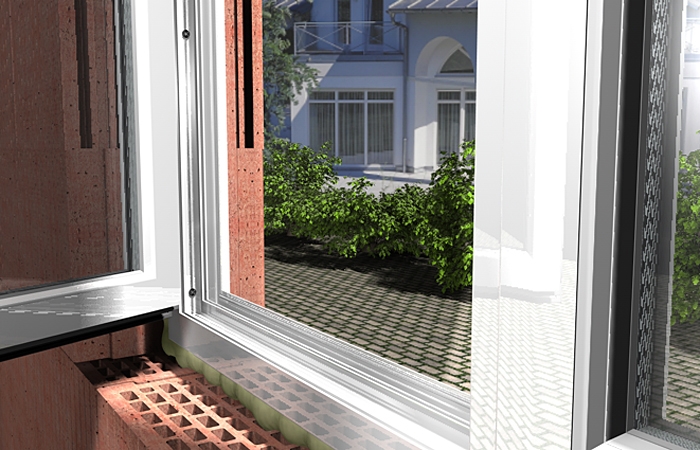

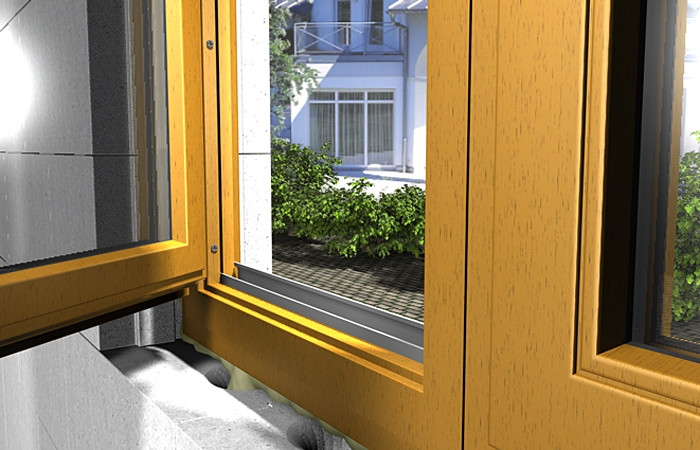

- Window frames made of wood, uPVC and aluminium Door frames Rachelwerk
Building materials
- Concrete Perforated brick Hollow lightweight concrete building block Perforated sand-lime brick Solid sand-lime brick Solid lightweight concrete brick Solid cellular concrete brick
Technical data
- Borehole diameter 6 mm.
- Screw length 122 mm.
- Shaft T30.
- Screw head 11.5 mm.
- Diameter 7.5 mm.
- Quantity 100 pieces
