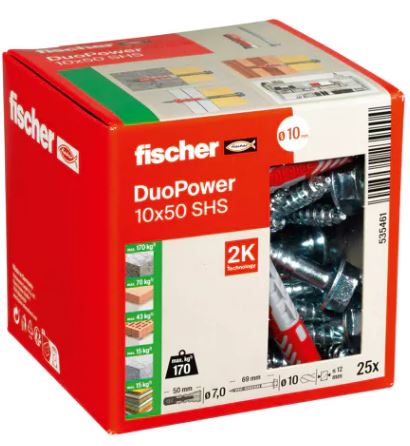

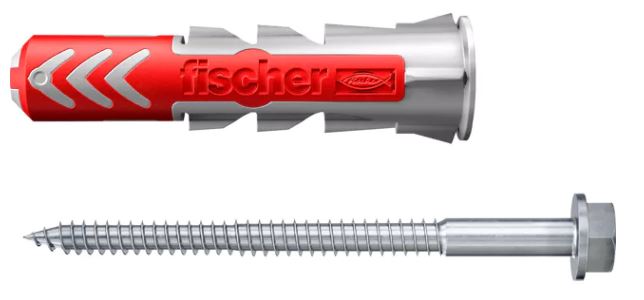

Fischer 535461 DuoPower plug 10x50 with hexagon screw 25 pieces
Special features
- Two material components for the best load ratings and smart functions, depending on the substrate.
- Best possible response (feel-good factor) of the plug. You can feel when the plug is perfectly installed.
- The narrow rim of the plug prevents it from sliding too far into the drill hole.
- The distinct anti-rotation feature prevents the plug from rotating.
- Due to the greater anchoring depth, the plug is particularly well-suited for fastenings in perforated building materials, aerated concrete, and bridging plaster layers.
Function
- The DuoPower is suitable for both head and through-hole mounting.
- The Duo, consisting of two materials and multiple operating principles (folding, spreading, knotting), allows for an expansion of the application spectrum in additional building materials subject to maximum loads.
- The required screw length is calculated as the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw.
- Suitable for wood, chipboard, and lag screws.
- For sheet material, the part of the screw without thread must not exceed the mounting piece
Technical data
- Drill diameter (d0) 10 mm
- Min. drill hole depth (h1) 74 mm
- Min. sheet thickness (dp) 12.5 mm
- Plug length (l) 50 mm
- Min. screw-in depth (lE,min) 57 mm
- Chipboard screw (ds) 7.0 x 69 mm
- Recorder TX40/SW13
- Contents 25 x DuoPower 10 x 50, 25 x hexagon screw 7.0 x 69
- Type of packaging Box
