Fischer 535973 Redbox Duopower Plug assortment in case

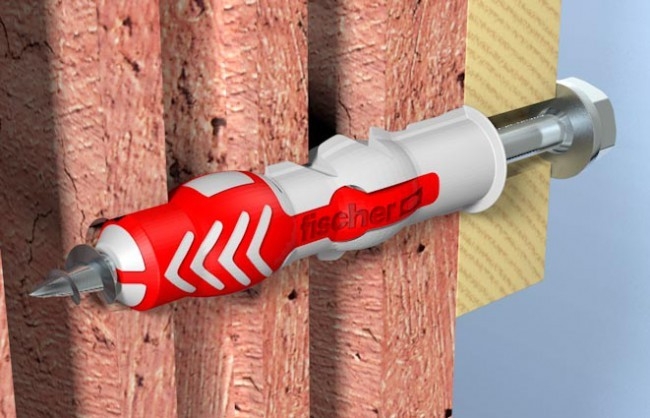

Fischer DUOPOWER REDBOX combo set in case 5x25 6x30 8x40 10x50 plug for wall, wood plugs an all-round plug! The combination of spreading, folding, and knotting functions in one plug ensures that the DUOPOWER can withstand the highest load in any substrate.
Special features
- The two components, in two colors, bring together the best functionalities of our existing plugs in one innovative plug.
- The powerful and intelligent DUOPOWER plug determines for itself which function needs to be performed; Spread, Fold, or Knot.
- This ensures optimal fastening in any substrate and situation.
- The combination of spreading, folding, and knotting functions in a single plug ensures that the DUOPOWER can withstand the highest load in any substrate. The DUOPOWER is suitable for both head and through-hole mounting.
- The DUOPOWER is suitable for use with a wide range of wood and chipboard screws as well as wood thread bolts.
- Fischer DUOPOWER; an intelligent, easy-to-use, powerful all-rounder!
- The fischer DUOPOWER has a very high load rating due to the 2 components: The ‘soft’ red part of the plug is responsible for a secure grip in solid materials. The ‘hard’ grey part forms the basis for the folding function in hollow spaces.
- The combination of the red and grey parts ensures interlocking with sheet materials.
- The collar prevents the plug from being inserted too deep into a hollow wall, but does not interfere with through-hole mounting.
- The DUOPOWER is the first choice for fastening items such as shower curtain rods, mailboxes, lamps, motion detectors, nameplates, and house numbers.
Technical data
- Drill diameter: 5, 6, 8, 10mm
- Screw thickness: 3 - 4 - 5 - 6 - 8mm
- Drill depth: 35 - 60mm
Processing of
- Concrete Solid brick
- Solid calcium silicate brick
- Cellular concrete
- Perforated brick
- Perforated calcium silicate brick
- Gypsum board
- Gypsum board and gypsum fiber boards
- Hollow building block of lightweight concrete
- Hollow floor slabs made of bricks and concrete or equivalent
- Natural stone
- Chipboard
- Gypsum blocks
- Solid brick of lightweight concrete
Operation
- The DUOPOWER is suitable for both pre-drilling and through-drilling installation.
- More material in the plug for even greater expansion and even higher load capacity.
- The combination of a hard and soft plastic guarantees optimal ease of use, very easy installation, and clear feedback when the plug is correctly placed. is.
- Suitable for wood, chipboard, and dowel screws.
- Screw length = plug length + thickness of attached part + 1x screw diameter.
- In the case of sheet material, the smooth part of the screw must not be longer than the thickness of the attached part.
- Fischer DUOPOWER operation
Standard included

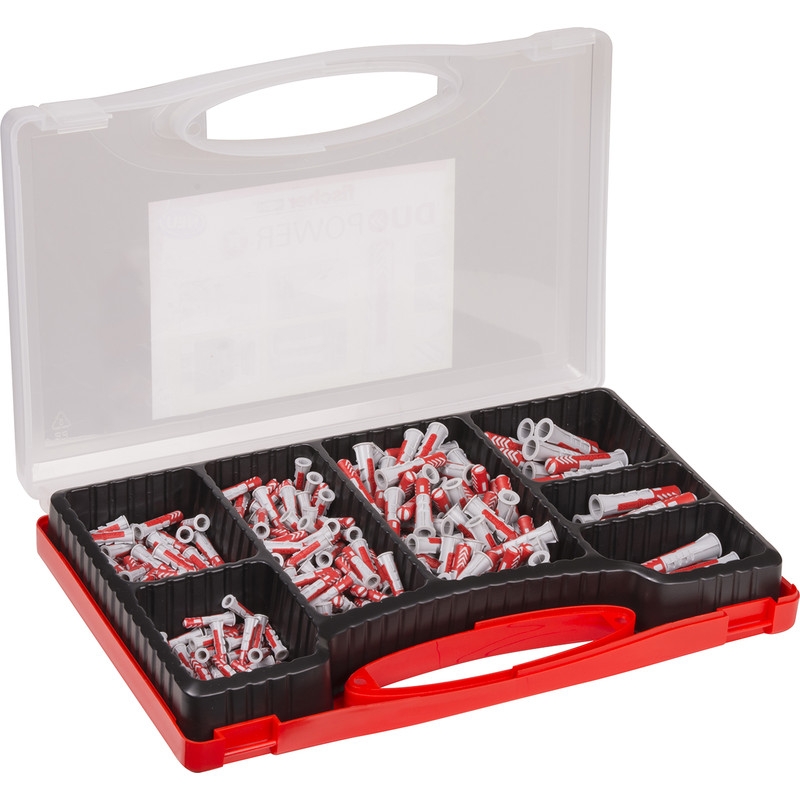

- 1 REDBOX filled with PSE plugs respectively:
- 30 pieces 5x25
- 140 pieces 6x30
- 80 pieces 8x40
- 30 pieces 10x50
