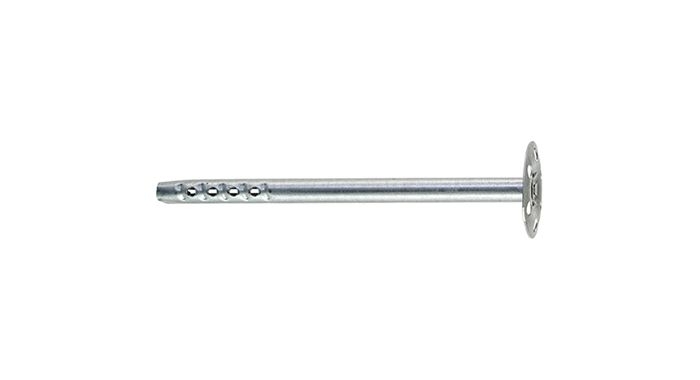

Fischer 536267 Metal insulation plug DHM 160 A2 250 pieces
The Fischer metal insulation plug DHM A2 is simply hammered in. With this impact installation, fitting is lightning fast and requires less effort. Thanks to the achieved fire resistance rating R 120, it can be used even when high demands are placed on fire resistance. The stainless steel DHM A2 version is suitable for applications in wet environments and outdoors. With the insulation plug, for example, rock wool, glass wool, foam glass panels, and wood wool panels can be attached.
Advantages
- The metal insulation plug achieves a fire resistance rating of R 120. Therefore, it can be used when fire resistance rating requirements are in place.
- The separately available DTM 80 washer for soft insulation material simplifies positioning and reduces costs.
- With simple impact mounting, installation is lightning-fast and requires less effort.
- The shaft geometry ensures that the washer can be installed in aerated concrete without pre-drilling, thus saving a work step.
- The DHM is available in a hot-dip galvanized steel version or in stainless steel A 2.
Applications
- Concrete
- Hollow lightweight concrete block
- Perforated brick
- Perforated calcium silicate brick
- Solid calcium silicate brick
- High-density natural stone
- Cellular concrete
- Solid lightweight concrete brick
- Solid brick
Building materials
- The insulation plug is set using a hammer in through-hole mounting
- The spring steel expands when driven into the base material
- Use the DTM 80 plate (sold separately) for fastening soft insulation materials.
Technical data
- DIBt approval : Relevant
- Borehole diameter : 8 mm
- Plug length : 200 mm
- Min. borehole depth : 50 mm
- Useful length : 130 - 160 mm
- Min. anchorage depth: 40 mm
- Content: 250
