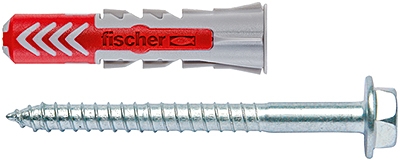

Fischer 538249 Duopower Plug 14x70 S 8 pieces
Fischer DUOPOWER 14x70 plug 10 pieces + 10x SW17 8x80 screws for 12mm drills
Special features
- The two components, in two colors, combine the best functionalities of our existing plugs into one innovative plug.
- The powerful and intelligent DUOPOWER plug determines for itself which function needs to be performed; Spreading, Folding, or Knotting.
- This ensures optimal fastening in any substrate and situation.
- The combination of spreading, folding, and knotting functions in a single plug ensures that the DUOPOWER can withstand the highest load in any substrate.
- The DUOPOWER is suitable for both head and through-hole mounting.
- The DUOPOWER is suitable for use with a wide range of wood and chipboard screws as well as lag screws.
- Fischer DUOPOWER; an intelligent, easy-to-use, powerful all-rounder
Technical data
- Borehole diameter d0 14 [mm]
- Min. borehole depth h1 100 [mm]
- Plug length 70 [mm]
- Min. Screw-in depth lE,min 80 [mm]
- Chipboard screw ds / ds x ls 10 x 95 [mm]
- Shank SW17
Building materials
- Concrete
- Solid brick
- Solid sand-lime brick
- Cellular concrete
- Perforated brick
- Perforated sand-lime brick
- Gypsum board
- Gypsum board and gypsum fiber boards
- Hollow building block of lightweight concrete
- Hollow floor slabs made of bricks and concrete or equivalent
- Natural stone
- Chipboard
- Gypsum blocks
- Solid brick of lightweight concrete
Operation
- The DUOPOWER is suitable for both pre- and Through-hole mounting.
- More material in the plug for even greater expansion and even higher load capacity. The combination of hard and soft plastic guarantees optimal ease of use, very easy installation, and clear feedback when the plug is correctly installed.
- Suitable for wood, chipboard, and dowel screws. Screw length = plug length + thickness of attached part + 1x screw diameter.
- In the case of sheet material, the smooth part of the screw must not be longer than the thickness of the attached part.
Standard included
- 8 pieces
