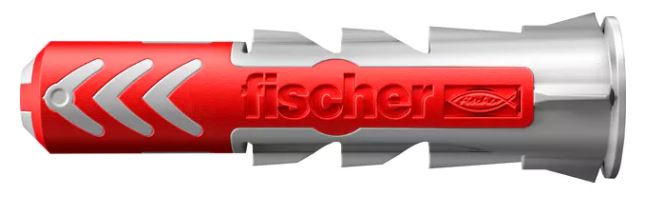

Fischer 538254 DuoPower plug 14x70 20 pieces
Special features
- The combination of 2 materials and 3 operating principles makes the DuoPower the right plug for all conditions. The plug activates the optimal operating principle – spreading, folding, knotting – depending on the substrate.
- Best possible feedback from the plug; it is clearly felt when the screw is properly tightened.
- The thin collar prevents the plug from disappearing into the drill hole when used in hollow walls, while through-hole mounting remains possible.
- The serrated anti-rotation wings prevent the plug from rotating in the drill hole during installation.
Function
- The DuoPower is suitable for both pre-drilling and through-hole mounting.
- The Duo, consisting of two materials and multiple operating principles (folding, spreading, knotting), allows for the expansion of the application spectrum to include additional building materials with maximum loads.
- The required screw length is the result of the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw.
- Suitable for wood, chipboard, and lag screws.
- For sheet material the part of the screw without thread must not be longer than the mounting piece
Technical data
- Drill diameter (d0) 14 mm
- Min. borehole depth (h1) 90 mm
- Min. board thickness (dp) 12 mm
- Plug length (l) 70 mm
- Min. screw-in depth (lE,min) 80 mm
- Chipboard screw (ds) 10.0 - 12.0 mm
- Contents 20 x DuoPower 14 x 70
- Quantity 20 pcs.
- Packaging type Box
