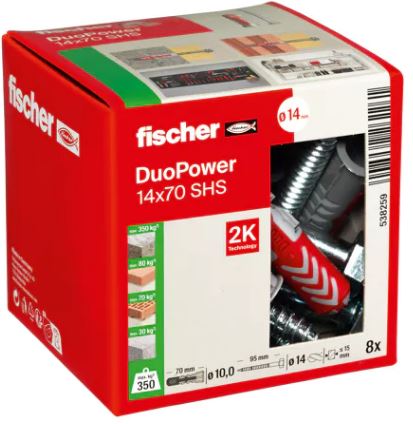

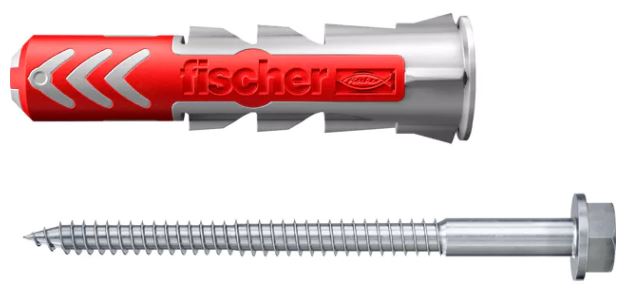

Fischer 538259 DuoPower plug 14x70 with hexagon screw 8 pieces
Special features
- Two material components for the best load ratings and smart functions, depending on the substrate.
- Best possible response (feel-good factor) of the plug. You can feel when the plug is perfectly installed.
- The narrow rim of the plug prevents it from sliding too far into the drill hole.
- The distinct anti-rotation feature prevents the plug from rotating.
- Due to the greater anchoring depth, the plug is particularly well-suited for fastenings in perforated building materials, aerated concrete, and bridging plaster layers.
Function
- The DuoPower is suitable for both head and through-hole mounting.
- The Duo, consisting of two materials and multiple operating principles (folding, spreading, knotting), allows for an expansion of the application spectrum in additional building materials subject to maximum loads.
- The required screw length is calculated as the length of the plug + thickness of the mounting piece + 1 x the diameter of the screw.
- Suitable for wood, chipboard, and lag screws.
- For sheet material, the part of the screw without thread must not exceed the mounting piece
Technical data
- Drill diameter (d0) 14 mm
- Min. drill hole depth (h1) 100 mm
- Min. sheet thickness (dp) -mm
- Plug length (l) 70 mm
- Min. screw-in depth (lE,min) 80 mm
- Chipboard screw (ds) 10.0 x 95 mm
- Recorder Hexagon
- Contents 8 x DuoPower 14 x 70, 8 x hexagon screw 10.0 x 95
- Type of packaging Box
