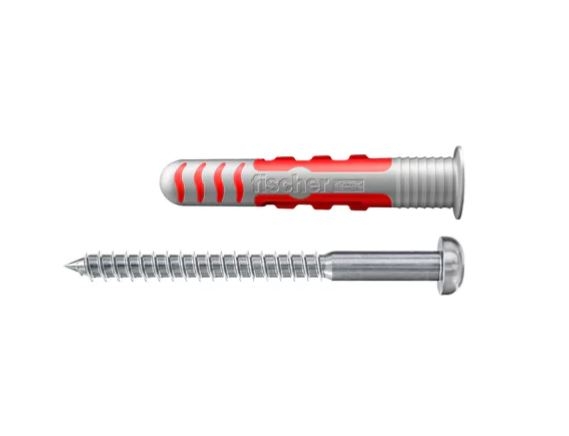

Fischer 557728 DuoSeal 8 x 48 with stainless steel A2 dome head screw
Special features
- Complete sealing of the borehole without additional sealant
- Water tightness approved in accordance with ETAG 022 and DIN 18534 up to water exposure class W3-I. In any case, take into account the general regulations for the use of plugs in wet areas
- Quick and easy installation by gently hammering the plug in
- Suitable for all substrates
- High load capacities thanks to 2-component technology
- The DuoSeal completely seals drill holes in tiles without the use of additional sealant, thus preventing structural damage caused by moisture in the building material
- The DuoSeal is ideally suited for tiled surfaces that are very frequently exposed to splashing water
- The universal plug can be easily installed in tiles without damaging them
- The red component ensures a firm grip in all building materials. Thus, the DuoSeal achieves the same load ratings as conventional nylon plugs. The included stainless steel screw is perfectly suitable for installation in wet areas and prevents rust formation. The soft plastic rim completely seals the drill hole and adapts flexibly to the shape of the attachment. The DuoSeal meets the highest water exposure class according to DIN 18534. The DuoSeal is only suitable for use in tiled surfaces and can only be installed using the through-hole method. A (diamond) tile drill must be used to drill the hole. The DuoSeal can easily be installed by hand. The collar prevents the plug from being inserted too deeply and also completely seals the drill hole. Depending on the building material, the red component automatically activates the optimal anchoring principle (spreading, folding, knotting), thereby forming a strong fastening. By tightening the screw, the soft grey component is pressed against the wall of the drill hole, completely sealing it. The included stainless steel screw with TX drive is ideal for use in wet areas. The ribs in the shaft compensate for irregularities in the drill hole, ensuring the sealing function is guaranteed even with an imperfect drill hole. Concrete Solid brick Solid sand-lime brick Hollow concrete blocks Vertically perforated brick Perforated sand-lime brick Cellular concrete
- Plasterboard
- Gypsum fiberboard
- Particle board
- Gypsum block
In tiled wet rooms such as:
- Bathrooms
- Kitchens
- Spas
- Swimming pools
- Sports facilities
- Laundry rooms
Suitable for:
- Accessories
- Faucets
- Shower panels
- Mirrors
- Shelves
- Hair dryer holders
- Kitchen accessories
- Pipes
Technical data
- Sealing depth: 5 - 14 [mm]
- Chip: TX30
- Drill hole diameter tolerance: 8 - 8.45 [mm]
- Drill diameter: 8 [mm]
- Plug length: 48 [mm]
- Suitable for aerated concrete: Yes
- Standard mounting: No
- Suitable for concrete: Yes
- Through-hole mounting: No
- Suitable for plasterboard: Yes
- Suitable for perforated brick: Yes
- Suitable for cable tie fastening: No
- Suitable for calcium silicate brick: Yes
- Suitable for natural stone: Yes
- Suitable for cellular concrete: Yes
- Suitable for chipboard: Yes
- Suitable for solid brick: Yes
- Pre-drill mounting: Yes
- Suitable for wood screw: Yes
- Surface protection: Other
- Color: gray
- Fixing
