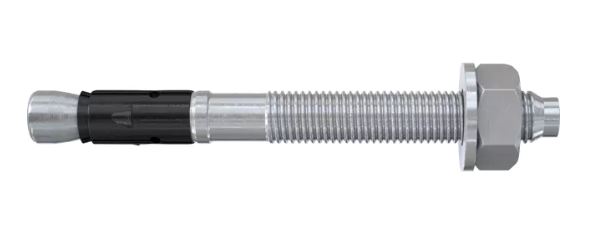

Fischer 564575 Through-anchor FAZ II Plus 8/30 EV electro-galvanized steel
The anchor bolt for the most demanding requirements in concrete. Strong and flexible. The fischer Through-anchor FAZ II is the steel anchor for the highest demands. With this anchor, heavy loads are secured in cracked concrete. Thanks to its simple installation, the FAZ II can be used particularly flexibly. The proven expansion clip guides the loads particularly reliably into the concrete and ensures the highest load-bearing capacity. With the galvanized steel version, loads are secured indoors. The steel anchor is, for example, ideally suited for fastening railings, cable trays, and consoles.
Advantages
- Fast and simple installation without drilling hole cleaning (M8-M24).
- With the new ETA certification, tensile strengths have increased significantly. This reduces the number of fastening points and therefore anchors required.
- The quick assembly of the FAZ II Plus offers an efficient fastening solution for dynamic applications (M16-24) and is also immediately loadable.
- An independent external assessment guarantees a service life of up to 120 years. Thus, the FAZ II Plus lasts a lifetime, making it perfectly suited for large construction projects where a long service life is required (M10-M16).
- The variable anchoring depth allows for adjustment to the load accurate to the millimeter.
Characteristic properties
- Numerous certifications for various substrates (concrete C12/15 to C80/90, fiber-reinforced concrete, solid sand-lime brick) for a very wide range of applications.
- The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24.
- The ETA certification, together with other test reports (RWS, ZTV, and ETK), guarantees high loads in case of fire.
- The FAZ II Plus absorbs high seismic loads of performance categories C1 and C2 for diameters M10-M24. The use of the FFD filler ring is optional.
- The first M6 segment anchor with ETA Option 1 certification guarantees secure anchoring.
Applications
- Steel structures, Guardrails, Consoles, Tunnels, Lifts, Lifting platforms, Conveyor belts, Pumps, Ladders, Cable trays, Machinery, Stairs, Façades, Timber structures
Building materials
- Certified for: Cracked and uncracked concrete C20/25 to C50/60
- Approved for: Concrete C12/15 (independent external test report), Concrete C80/95 (independent external test report), Fiber-reinforced concrete (independent external test report) and Sand-lime brick (independent external test report).
Certification
- ETA-19/0520, DoP No. 0334, ESR-2948
Mounting
- The FAZ II Plus is suitable for both through-hole and butt mounting and, thanks to the long thread, is also ideal for stand-off mounting.
- When applying the tightening torque, the cone is pulled into the expansion clip, causing it to grip firmly in the borehole wall.
- According to certification, the anchor is correctly installed when the predetermined tightening torque is reached.
- In the case of serial mounting, we recommend the use of the FABS or FA-ST II mounting aids.
- For seismic loads, the annular gap between the anchor and the attachment part can be filled with injection mortar using the FFD filler ring.
- For dynamic loads, an additional "Dynamic set" must be used, which is filled with injection mortar FIS V Plus, FIS EM Plus, FIS HB, or FIS after mounting. SB.
Technical data
- ICC approval
- Seismic approval C1
- Borehole diameter d0 8 [mm]
- Min. borehole depth for through-hole mounting h2 85 [mm]
- Plug length l 95 [mm]
- Max. usable length hef,stand/hef,red tfix 30/40 [mm]
- Thread Ø x length M 8 x 58 [mm]
- Wrench size SW 13 [mm]
Standard included
- 50 pieces
