Fischer Self-drilling Adjusting Screw JUSS 6 x 100 mm 059044
Special features
- The fischer JUSS Adjusting Screw is a special screw with two threads for the steplessly adjustable mounting of timber structures
- The self-tapping screw is screwed in through the mounting piece and the parallel thread pulls the mounting piece against the substrate
- The distance between the component and the substrate can then be steplessly adjusted by turning in the opposite direction

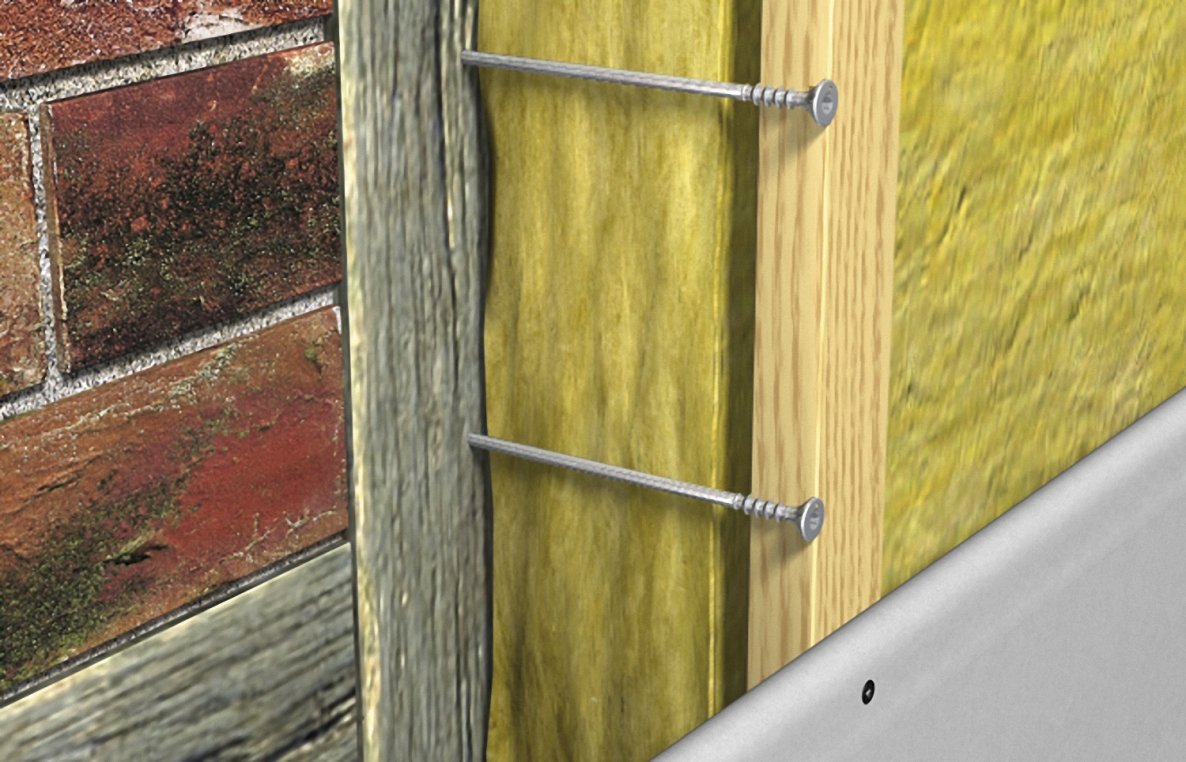

- The fischer JS Adjusting Screw is ideal for fastening wooden substructures made of battens with a thickness of 20 to 25 mm
- The adjusting screw for fast and stepless installation of timber structures
- Stepless adjustment of the mounting piece
- Therefore, no wedges or blocks are needed for fixing
- That saves time
- Self-tapping thread
- Therefore, pre-drilling is not required
- This saves time and costs
- Thanks to the special operating principle of the JUSS set screw, stepless adjustment is possible
- Wedges or blocks are no longer required to fix the component
- The self-drilling thread of the JUSS set screw penetrates the wood immediately
- The JUSS is suitable for push-fit mounting
- Once the screw has been tightened, the parallel thread under the screw head ensures that the attachment is pulled against the surface
- The distance of the attachment can be adjusted steplessly by changing the direction of rotation
Technical data
- Effective anchoring depth: 30mm
- Max. spacing: 70mm
- Screw size: 6 x 100mm
- Max. wood thickness: 30mm
- Shank: T25
- Packaging unit: Pieces
Applications
- Wood and wood materials or wooden panels
Standard included
- 100 Pieces
