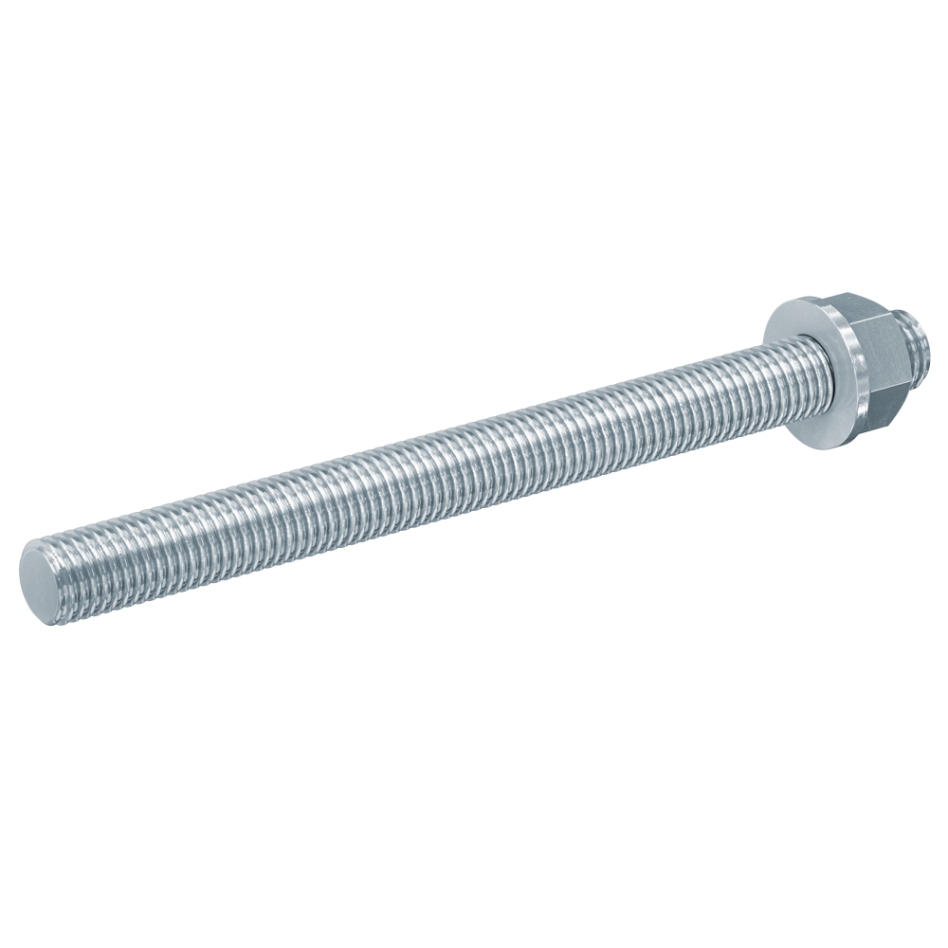

Fischer 90278 Anchor Rod FIS AM 10 x 110 ev steel grade 5.8 10 pieces
The versatile threaded rod FIS A. The fischer Threaded Rod FIS A is made of galvanized steel in steel grade 5.8. The threaded rod is a system component for the various fischer injection mortars. In combination with the injection mortars, the fischer Threaded Rod is suitable and approved for any substrate. For the maximum load-bearing capacity of the system, thorough cleaning of the borehole is recommended. The system of galvanized anchor rod in combination with fischer Injection Mortars is suitable or approved for fastening in dry indoor spaces.
Advantages
- The fastening system, consisting of the FIS A threaded rod or the FIS E internal threaded anchor and one of the injection mortars FIS V, FIS VT or FIS P Plus, can be selected depending on the application requirements, enabling many application possibilities.
- The application possibilities of approved FIS A threaded rods from M6 to M30 are numerous.
Characteristic properties
- The universal solution for all types of fischer Injection Mortar.
- For a clear product range and simplified stock management.
- In combination with the various fischer Injection Mortars approved for anchoring in cracked and uncracked concrete, solid stone masonry, porous stone masonry and aerated concrete.
- Optimal load adaptation through variable anchoring depth. This reduces assembly and material costs.
Approval
- ETA-02/0024 DoP No. 0007 DoP No. 0007 - EN DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0756-CPD-0301 ESR-3572
Installation
- The FIS A threaded rod is suitable for through-hole and through-hole mounting.
- The FIS A threaded rod is pressed by hand with a slight twist until it reaches the bottom of the drill hole.
Technical data
- Drill hole diameter in perforated brick do 16 [mm]
- Drill hole diameter in solid brick do 12 [mm] d0 12 [mm]
- Thread Ø x length M 10 [mm]
- Length l 110 [mm]
Standard included
- 10 pieces
