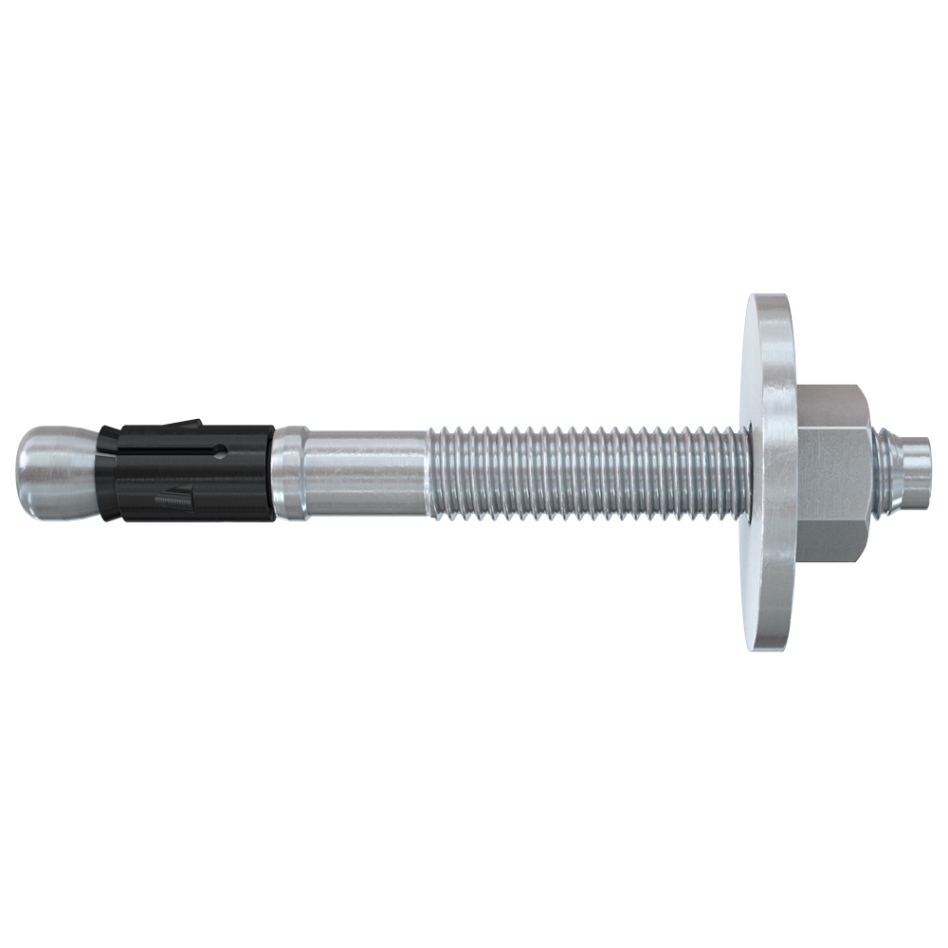

Fischer Through Anchor FAZ II 12/120 GS with large washer electro-galvanized96367
Special features
- The anchor bolt with large washer for the most demanding requirements
- Strong and flexible
- Pre-assembled washer for parts with slotted holes
- This facilitates alignment and saves time during installation
- Minimal tightening slip
- Easy installation reduces time and effort
- With expansion clip for the highest load capacity: this requires fewer fastening points and smaller anchor plates
- This saves time and costs
- Approved for cracked concrete and fire testing: maximum safety
- One anchor – two anchoring depths: A reduced anchoring depth saves time and effort during drilling money
- Moreover, it is extremely suitable for thick mounting pieces. The FAZ II GS with 8, 10, and 12 mm diameters are suitable for securing elongated hole fasteners thanks to the special washer and ensure minimal assembly work.
- The significantly larger outer diameter of the washers for the FAZ II 16 GS guarantees a larger support surface and thus enables use in timber constructions.
- The pre-assembled washer enables quick installation.
- In addition, the FAZ II GS offers all the advantages of the FAZ II.
Technical data
- Approval: Relevant
- Seismic approval: C1 / C2
- Borehole diameter: 12 mm
- Min. borehole depth for through-hole mounting: 210 mm
- Plug length: 220 mm
- Thread: M 12 x 171 mm
- Wrench size: 19 mm
- Washer (outer diameter x thickness): 30 x 3 mm
- Anchoring depth (standard): 70 mm
- Max. thickness of attachment part (standard): 10 mm
- Anchoring depth (reduced): 50 mm
- Max. thickness of attachment part (reduced): 30 mm
Building materials
- Concrete C20/25 to C50/60, cracked and uncracked
- Concrete C12/15
- High-density natural stone
Scope of delivery
- Pieces per pack: 20
