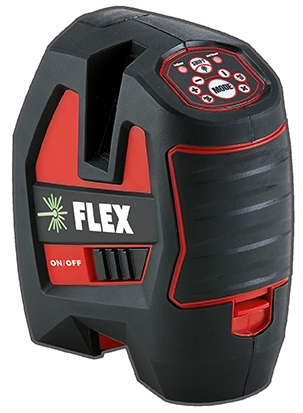

Flex-tools ALC 3/1-G/R Green self-leveling cross-line laser
Special features
- With one horizontal and two vertical laser lines at a 90° angle plus plumb line (red laser line) individually switchable
- Plumb line function Specially anti-reflective glass ensures clean and extremely precise laser lines.
- Green laser diode The green line image provides significantly more brightness and remains clearly visible even in poor lighting conditions
- Extends the range from 50 meters with receiver to 70 meters
- Self-leveling
- Optical warning signal when the self-leveling level is exceeded
- Switchable self-leveling
- Easy operation
- Transport protection
- Integrated Li-polymer battery
- 1/4" thread mount for tripod

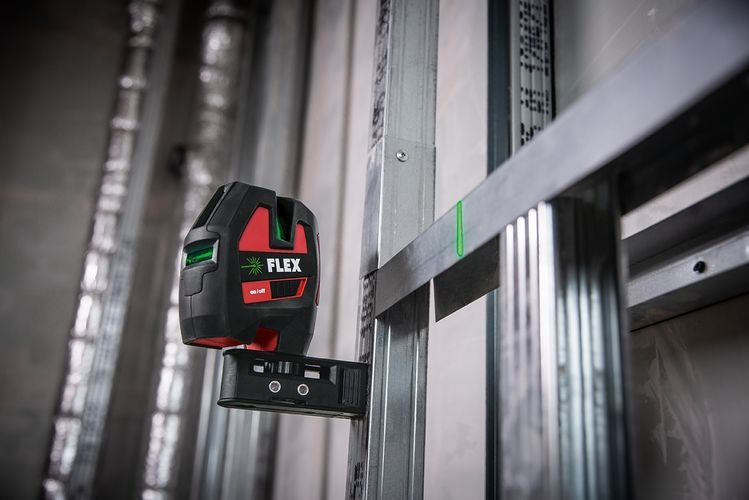

- Ideal for aligning framework
Technical specifications
- Number of lines 1 horizontal / 2 vertical plus plumb line
- Visible line range 110°
- Accuracy ± 0.3 mm/m (plumb line ± 0.6 mm/m)
- Self-leveling range ± 4°
- Max. working range 20 m / plumb line 5 m
- Max. working range with receiver 70 m
- Battery life 5 - 11 h
- Temperature range -5° - +50°C
- Laser class 2
- Safety class IP 54
- Integrated battery 3.7 V 2000 mAh / Li-Ion
- Dimensions (L x W x H) 60 x 112 x 126 mm
- Weight 0.53 kg
Supplied as standard
- 1 magnetic wall holder WB-M/S 1/4 ALC-Basic 428.167
- 1 USB cable
- 1 USB charger
- 1 transport bag
