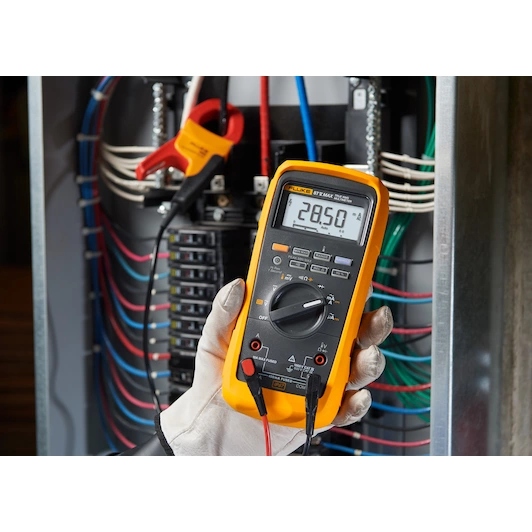

Fluke 5337412 87V MAX DMM and PVLEAD1 MC4 test leads, bundle
Special Features
- FLK-87VMAX-PVLEAD1 Solar power tool set with 87V Max digital multimeter and test leads
Benefits
- Drop resistant up to 4 meters with industrial strength housing and holster

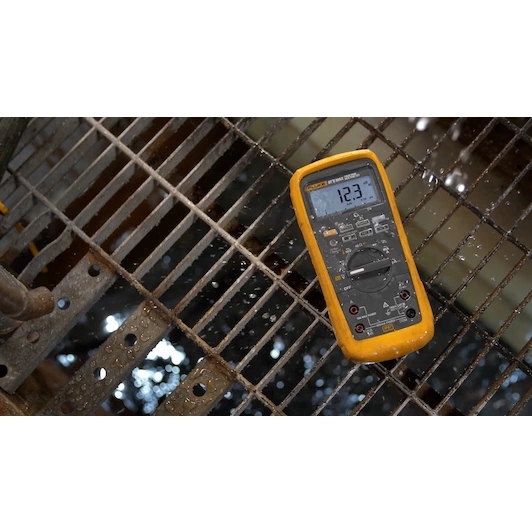

- Waterproof, dustproof IP67 housing for the most extreme workplaces
- Meter rated according to CAT III 1000 V / CAT IV 600 V
- Solar power test lead sets are designed for use with meters suitable for 4 mm banana plugs, classified according to CAT III 1000 V / CAT IV 600 V
Technical data
- TypeFLK-87VMAX-PVLEAD1
- Indication/displayDigital
- Multiple indicationNo
- Screen illuminationYes
- Measuring range selectionManual/automatic
- Max. voltage range AC1000 Volts
- Shortest resolution AC0.01 mV
- Max. voltage range DC1000 Volts
- Shortest resolution DC0.01 mV
- Max. current measuring range AC10 Amperes
- Shortest resolution AC0.01 µA
- Max. Current measurement range DC 10 Amperes
- Smallest resolution direct current 0.01 µA
- Max. resistance measurement range 50 Megaohms
- Milliohm measurement with 4-wire technique (Kelvin connection) No
- Smallest resolution resistance 0.01 Ohm
- Temperature measurement RTD No
- Temperature measurement Yes
- Temperature measurement TC Yes
- Max. temperature measurement range 1090 Degrees Celsius
- Smallest resolution temperature 0.1 °C
- Capacity measurement Yes
- Max. capacitance measurement range9999 Microfarad
- Smallest resolution capacitance0.00001 µF
- Frequency measurementYes
- Max. frequency measurement range199.99 Kilohertz
- Smallest resolution frequency0.01 Hz
- Resistance test/diode testYes
- Nom. test voltage 10 VNo
- Nom. test voltage 50 VNo
- Nom. test voltage 100 VNo
- Nom. test voltage 250 VNo
- Nom. test voltage 500 VNo
- Nom. test voltage 1000 VNo
- Cable length measurementNo
- Cable symmetry test for 2-wire connections abENo
- Power and energy measurementNo
- Harmonic analysis/power qualityNo
- With decibel measurement (dB)No
- Relative value measurementYes
- Inductance measurementNo
- With conductivity measurementYes
- Continuity testYes
- Moment value memory (Data Hold)Yes
- Maximum value memoryYes
- Minimum value memoryYes
- Peak value memoryYes
- Efficiency measurement (TRMS)Yes
- Duty cycle measurementsYes
- Speed measurementNo
- Measurement value memoryNo
- InterfaceNo
- Bluetooth interfaceNo
- IR interfaceNo
- BumperNo
- Measurement circuit categoryCAT IV
- Max. voltage measurement circuit category60 Volts
- Explosion-tested versionNo
- Protection class (IP)IP67
- Bar indication scale linearYes
- Bar indication scale logarithmicNo
- High voltage test for motor windingsNo
- Power supplyBattery
Scope of delivery
- Fluke 87V MAX True-RMS digital multimeter
- TL175 TwistGuard® test leads
- AC175 alligator clips
- 80BK-A temperature probe
- Removable holster with storage for test leads
- Three AA batteries (installed)
- Pomona PVLEAD1 solar PV connector to 4 mm test leads set
